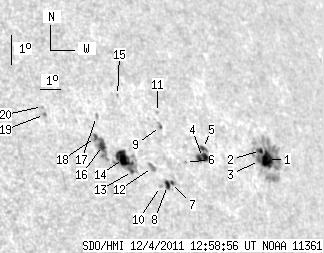

SDO HMI 2011-12-04 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.64 | 154.61 | 40.89 | 132.51 | 19.00 | 171.97 | 52.40 | 293.26 | 0.8160 | -106.2 | -31.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.03 | 71.42 | 11.13 | 66.11 | 18.87 | 175.32 | 55.75 | 292.19 | 0.8468 | -660.0 | -152.6 | |
| 2.30 | -1.00 | 2.12 | -1.00 | 19.16 | 175.07 | 55.50 | 292.57 | 0.8452 | -668.1 | 999999 | |
| 0.26 | -1.00 | 0.23 | -1.00 | 18.85 | 174.86 | 55.29 | 292.26 | 0.8428 | -852.0 | 999999 | |
| 7.34 | 13.05 | 6.26 | 11.15 | 18.96 | 171.88 | 52.31 | 293.15 | 0.8162 | -789.6 | -607.8 | |
| 1.71 | -4.00 | 1.46 | -4.00 | 19.24 | 172.00 | 52.44 | 293.45 | 0.8180 | -674.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.78 | 18.80 | 170.94 | 51.38 | 293.22 | 0.8071 | 195.0 | 121.0 | |
| 1.19 | 5.72 | 0.97 | 4.64 | 18.19 | 169.99 | 50.43 | 292.74 | 0.7963 | -317.6 | -428.5 | |
| 2.99 | -7.00 | 2.42 | -7.00 | 18.10 | 169.76 | 50.20 | 292.70 | 0.7938 | -660.3 | 999999 | |
| 0.34 | 2.22 | 0.28 | 1.83 | 19.94 | 170.19 | 50.62 | 294.81 | 0.8028 | -342.5 | -306.3 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 18.07 | 169.41 | 49.84 | 292.76 | 0.7903 | -756.0 | -658.3 | |
| 0.00 | 0.85 | 0.00 | 0.71 | 20.38 | 170.24 | 50.67 | 295.32 | 0.8045 | 410.0 | 260.5 | |
| 0.00 | 4.18 | 0.00 | 3.36 | 18.66 | 169.26 | 49.69 | 293.54 | 0.7903 | -475.0 | -230.3 | |
| 0.34 | 30.21 | 0.27 | 23.77 | 18.54 | 168.25 | 48.69 | 293.70 | 0.7800 | 435.5 | 128.7 | |
| 14.25 | -13.00 | 11.19 | -13.00 | 18.95 | 167.98 | 48.42 | 294.29 | 0.7785 | 644.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.69 | 20.92 | 168.51 | 48.95 | 296.54 | 0.7897 | 516.0 | 450.2 | |
| 4.10 | 19.71 | 3.17 | 15.24 | 19.36 | 167.15 | 47.59 | 295.08 | 0.7714 | 720.8 | 587.0 | |
| 0.00 | 1.96 | 0.00 | 1.53 | 20.27 | 167.23 | 47.67 | 296.18 | 0.7751 | 411.0 | 345.7 | |
| 1.79 | -16.00 | 1.39 | -16.00 | 19.61 | 166.93 | 47.36 | 295.47 | 0.7699 | 703.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.08 | 20.34 | 164.87 | 45.31 | 297.16 | 0.7515 | 758.0 | 628.7 | |
| 0.00 | 0.51 | 0.00 | 0.38 | 20.59 | 164.88 | 45.31 | 297.48 | 0.7525 | 486.0 | 469.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
