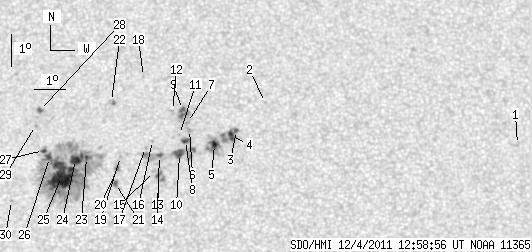

SDO HMI 2011-12-04 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.31 | 354.52 | 44.27 | 186.23 | 19.39 | 123.72 | 4.15 | 348.36 | 0.3342 | 325.2 | 99.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.13 | 19.91 | 136.94 | 17.37 | 319.86 | 0.4373 | 891.0 | 650.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 21.24 | 128.87 | 9.31 | 336.96 | 0.3869 | -724.0 | -541.4 | |
| 1.11 | 18.60 | 0.59 | 9.88 | 20.36 | 127.90 | 8.33 | 338.22 | 0.3678 | -692.2 | -717.6 | |
| 4.61 | -3.00 | 2.45 | -3.00 | 20.17 | 127.73 | 8.16 | 338.42 | 0.3639 | -976.4 | 999999 | |
| 2.82 | 20.39 | 1.49 | 10.80 | 19.92 | 127.17 | 7.61 | 339.49 | 0.3569 | -1231.0 | -807.0 | |
| 0.00 | 3.16 | 0.00 | 1.67 | 20.39 | 126.40 | 6.84 | 341.85 | 0.3599 | -975.0 | -777.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 20.61 | 126.35 | 6.78 | 342.19 | 0.3631 | -980.0 | -758.6 | |
| 3.24 | 3.67 | 1.72 | 1.94 | 20.05 | 126.26 | 6.70 | 341.89 | 0.3539 | -918.3 | -853.8 | |
| 2.13 | 10.41 | 1.14 | 5.54 | 21.02 | 126.21 | 6.64 | 342.89 | 0.3687 | -801.1 | -822.2 | |
| 6.66 | 17.07 | 3.51 | 9.01 | 19.64 | 126.05 | 6.49 | 342.03 | 0.3465 | -1039.8 | -886.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 20.23 | 126.08 | 6.51 | 342.52 | 0.3559 | -761.0 | -629.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.99 | 125.89 | 6.32 | 343.64 | 0.3667 | -646.0 | -474.3 | |
| 1.71 | 15.70 | 0.90 | 8.27 | 19.58 | 125.42 | 5.86 | 343.62 | 0.3425 | -945.2 | -476.9 | |
| 1.28 | 7.00 | 0.67 | 3.67 | 18.98 | 125.37 | 5.80 | 343.23 | 0.3329 | -1026.6 | -867.3 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.08 | 125.25 | 5.68 | 343.65 | 0.3338 | -640.0 | -629.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 20.05 | 125.22 | 5.65 | 344.55 | 0.3489 | -740.0 | -525.4 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 19.83 | 124.99 | 5.42 | 344.97 | 0.3445 | -585.0 | -437.6 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 22.07 | 125.01 | 5.44 | 346.56 | 0.3799 | -832.0 | -651.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.55 | 124.19 | 4.63 | 346.90 | 0.3368 | 811.0 | 649.0 | |
| 1.28 | 3.07 | 0.67 | 1.61 | 19.17 | 124.09 | 4.52 | 346.91 | 0.3304 | 843.3 | 692.5 | |
| 2.05 | 3.07 | 1.07 | 1.61 | 18.70 | 124.01 | 4.45 | 346.78 | 0.3226 | 941.0 | 617.7 | |
| 0.00 | 3.33 | 0.00 | 1.77 | 21.28 | 123.96 | 4.39 | 348.63 | 0.3637 | 769.0 | 734.6 | |
| 1.45 | 232.51 | 0.76 | 121.66 | 19.52 | 123.12 | 3.56 | 349.83 | 0.3328 | 1000.1 | 449.3 | |
| 8.79 | -23.00 | 4.61 | -23.00 | 19.45 | 122.78 | 3.21 | 350.77 | 0.3308 | 975.8 | 999999 | |
| 40.27 | -23.00 | 21.05 | -23.00 | 18.92 | 122.33 | 2.76 | 351.79 | 0.3210 | 1223.6 | 999999 | |
| 3.33 | -23.00 | 1.75 | -23.00 | 19.52 | 121.96 | 2.40 | 353.10 | 0.3299 | 892.4 | 999999 | |
| 1.79 | -23.00 | 0.94 | -23.00 | 19.74 | 121.78 | 2.21 | 353.71 | 0.3332 | 770.8 | 999999 | |
| 1.79 | 2.65 | 0.95 | 1.40 | 20.99 | 121.67 | 2.10 | 354.41 | 0.3535 | 858.7 | 710.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 20.52 | 121.54 | 1.97 | 354.63 | 0.3456 | 804.0 | 750.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 18.18 | 120.76 | 1.20 | 356.26 | 0.3059 | -815.0 | -608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
