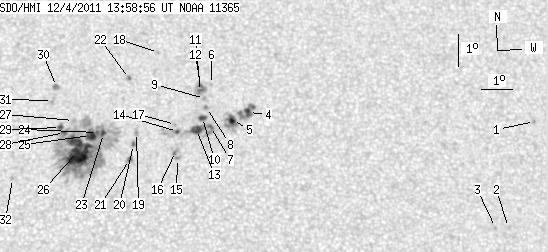

SDO HMI 2011-12-04 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.45 | 344.50 | 43.31 | 181.03 | 19.39 | 123.64 | 4.62 | 347.06 | 0.3361 | 343.0 | 169.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.71 | 19.90 | 136.98 | 17.96 | 318.94 | 0.4433 | 847.0 | 723.3 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 16.61 | 135.79 | 16.77 | 315.17 | 0.3939 | 650.0 | 490.1 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 16.61 | 135.37 | 16.35 | 315.87 | 0.3892 | 749.0 | 581.5 | |
| 4.18 | 14.59 | 2.23 | 7.76 | 20.20 | 127.75 | 8.73 | 337.10 | 0.3679 | -945.8 | -794.8 | |
| 2.47 | 17.15 | 1.31 | 9.10 | 19.95 | 127.23 | 8.21 | 338.06 | 0.3609 | -1197.3 | -804.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.08 | 126.62 | 7.60 | 340.67 | 0.3745 | -510.0 | -436.3 | |
| 1.71 | 31.14 | 0.90 | 16.44 | 19.76 | 126.52 | 7.50 | 339.58 | 0.3539 | -1029.2 | -688.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 20.35 | 126.42 | 7.41 | 340.43 | 0.3624 | -880.0 | -814.5 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 20.64 | 126.37 | 7.36 | 340.83 | 0.3665 | -891.0 | -640.8 | |
| 3.16 | 3.84 | 1.67 | 2.03 | 20.04 | 126.28 | 7.26 | 340.47 | 0.3568 | -1015.9 | -743.6 | |
| 2.82 | 9.81 | 1.50 | 5.23 | 20.86 | 126.25 | 7.24 | 341.32 | 0.3692 | -965.9 | -773.8 | |
| 0.68 | -11.00 | 0.36 | -11.00 | 21.05 | 126.26 | 7.25 | 341.47 | 0.3722 | -821.5 | 999999 | |
| 6.83 | -7.00 | 3.61 | -7.00 | 19.67 | 126.07 | 7.06 | 340.61 | 0.3499 | -1040.9 | 999999 | |
| 1.71 | -7.00 | 0.90 | -7.00 | 19.60 | 125.47 | 6.45 | 342.09 | 0.3458 | -923.3 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.12 | 18.76 | 125.44 | 6.42 | 341.35 | 0.3325 | -1075.0 | -835.2 | |
| 0.00 | 2.64 | 0.00 | 1.39 | 18.98 | 125.38 | 6.37 | 341.71 | 0.3356 | -1209.0 | -949.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.82 | 125.42 | 6.40 | 342.43 | 0.3489 | -774.0 | -555.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 22.09 | 124.97 | 5.95 | 345.38 | 0.3823 | -809.0 | -499.3 | |
| 0.00 | 3.24 | 0.00 | 1.71 | 19.57 | 124.18 | 5.16 | 345.47 | 0.3394 | 952.0 | 703.5 | |
| 0.60 | 1.79 | 0.31 | 0.94 | 19.20 | 124.07 | 5.05 | 345.46 | 0.3330 | 854.9 | 693.1 | |
| 2.39 | 3.33 | 1.25 | 1.74 | 18.73 | 123.93 | 4.92 | 345.47 | 0.3249 | 907.6 | 647.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 21.27 | 124.01 | 5.00 | 347.12 | 0.3657 | 1050.0 | 978.0 | |
| 2.39 | 232.66 | 1.26 | 121.80 | 19.54 | 123.14 | 4.12 | 348.28 | 0.3350 | 999.4 | 463.0 | |
| 1.37 | -23.00 | 0.72 | -23.00 | 19.57 | 122.95 | 3.93 | 348.82 | 0.3349 | 892.1 | 999999 | |
| 7.17 | -23.00 | 3.76 | -23.00 | 19.48 | 122.73 | 3.71 | 349.38 | 0.3327 | 980.6 | 999999 | |
| 40.70 | -23.00 | 21.29 | -23.00 | 18.98 | 122.31 | 3.29 | 350.28 | 0.3233 | 1197.2 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.30 | 19.95 | 122.20 | 3.19 | 351.08 | 0.3388 | 344.0 | 192.7 | |
| 2.05 | -23.00 | 1.07 | -23.00 | 19.57 | 121.91 | 2.90 | 351.71 | 0.3320 | 873.0 | 999999 | |
| 2.22 | -23.00 | 1.17 | -23.00 | 19.73 | 121.79 | 2.78 | 352.13 | 0.3343 | 718.8 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.85 | 21.02 | 121.69 | 2.67 | 352.93 | 0.3550 | 883.0 | 755.7 | |
| 0.00 | 3.07 | 0.00 | 1.62 | 20.58 | 121.55 | 2.54 | 353.12 | 0.3476 | 832.0 | 679.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.14 | 120.27 | 1.26 | 356.07 | 0.3054 | -781.0 | -551.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
