SDO HMI 2011-12-04 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 258.81 | 1522.04 | 141.46 | 831.24 | -21.91 | 107.64 | -10.82 | 155.63 | 0.4231 | 85.4 | 75.6 | |
|
previous
or next observation for the same group /

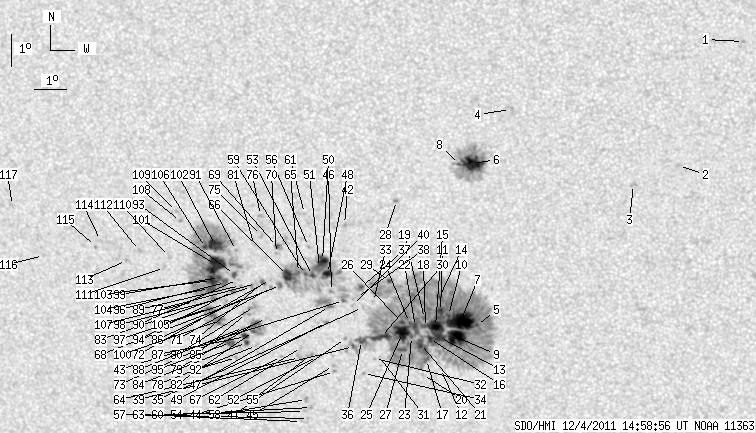

back to the solar disc SDO HMI 2011-12-04 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.70 | -13.85 | 119.61 | 1.14 | 184.46 | 0.2494 | -962.0 | -779.7 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -17.67 | 117.61 | -0.85 | 177.39 | 0.3132 | -811.0 | -534.3 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -18.26 | 116.21 | -2.26 | 173.36 | 0.3249 | -766.0 | -620.0 | |
| 0.00 | 4.18 | 0.00 | 2.17 | -15.94 | 112.45 | -6.02 | 160.38 | 0.3014 | 457.0 | 636.0 | |
| 0.94 | 840.47 | 0.51 | 458.42 | -22.73 | 111.10 | -7.37 | 163.29 | 0.4132 | 1101.0 | 384.1 | |
| 18.26 | 94.18 | 9.59 | 49.48 | -17.61 | 111.21 | -7.25 | 158.81 | 0.3345 | 1270.6 | 437.4 | |
| 31.82 | -5.00 | 17.29 | -5.00 | -22.60 | 110.59 | -7.88 | 162.11 | 0.4137 | 1510.3 | 999999 | |
| 1.11 | -6.00 | 0.58 | -6.00 | -17.64 | 110.80 | -7.66 | 157.78 | 0.3374 | 704.8 | 999999 | |
| 19.54 | -5.00 | 10.66 | -5.00 | -23.11 | 110.43 | -8.04 | 162.18 | 0.4222 | 1187.2 | 999999 | |
| 0.94 | -5.00 | 0.51 | -5.00 | -22.41 | 110.21 | -8.26 | 161.15 | 0.4127 | 1301.3 | 999999 | |
| 3.50 | -5.00 | 1.90 | -5.00 | -22.28 | 109.96 | -8.51 | 160.51 | 0.4121 | 1251.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -24.12 | 109.84 | -8.62 | 161.80 | 0.4400 | 492.0 | 374.6 | |
| 6.40 | -5.00 | 3.50 | -5.00 | -23.11 | 109.87 | -8.59 | 161.05 | 0.4249 | 1016.3 | 999999 | |
| 2.56 | -5.00 | 1.39 | -5.00 | -21.80 | 109.96 | -8.51 | 160.08 | 0.4049 | 784.5 | 999999 | |
| 11.00 | -5.00 | 6.00 | -5.00 | -22.76 | 109.77 | -8.70 | 160.53 | 0.4202 | 1274.7 | 999999 | |
| 2.30 | -5.00 | 1.26 | -5.00 | -23.15 | 109.55 | -8.92 | 160.42 | 0.4271 | 954.9 | 999999 | |
| 2.82 | -5.00 | 1.55 | -5.00 | -23.83 | 109.40 | -9.06 | 160.70 | 0.4379 | 590.2 | 999999 | |
| 0.94 | -5.00 | 0.51 | -5.00 | -22.79 | 109.44 | -9.02 | 159.90 | 0.4225 | 868.5 | 999999 | |
| 1.54 | -5.00 | 0.84 | -5.00 | -22.50 | 109.43 | -9.04 | 159.61 | 0.4183 | 1039.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -24.31 | 109.24 | -9.23 | 160.78 | 0.4459 | 661.0 | 437.8 | |
| 5.20 | -5.00 | 2.85 | -5.00 | -23.31 | 109.24 | -9.22 | 159.95 | 0.4312 | 890.9 | 999999 | |
| 2.73 | -5.00 | 1.49 | -5.00 | -22.76 | 109.12 | -9.35 | 159.21 | 0.4238 | 1064.6 | 999999 | |
| 1.54 | -5.00 | 0.84 | -5.00 | -23.08 | 108.97 | -9.50 | 159.20 | 0.4294 | 878.8 | 999999 | |
| 0.77 | -5.00 | 0.42 | -5.00 | -22.63 | 108.93 | -9.53 | 158.72 | 0.4230 | 979.6 | 999999 | |
| 14.08 | -5.00 | 7.71 | -5.00 | -22.95 | 108.68 | -9.78 | 158.52 | 0.4291 | 1138.8 | 999999 | |
| 1.19 | -5.00 | 0.65 | -5.00 | -22.63 | 108.71 | -9.76 | 158.27 | 0.4243 | 873.4 | 999999 | |
| 2.73 | -5.00 | 1.50 | -5.00 | -23.50 | 108.64 | -9.82 | 158.94 | 0.4373 | 787.6 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -18.77 | 108.77 | -9.70 | 154.17 | 0.3677 | 880.0 | 638.8 | |
| 1.62 | -5.00 | 0.88 | -5.00 | -21.32 | 108.38 | -10.09 | 156.28 | 0.4073 | -837.9 | 999999 | |
| 9.47 | -5.00 | 5.21 | -5.00 | -23.12 | 107.95 | -10.51 | 157.25 | 0.4358 | 756.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.73 | 107.87 | -10.60 | 157.68 | 0.4451 | -443.0 | -479.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -23.80 | 107.70 | -10.76 | 157.42 | 0.4470 | 336.0 | 308.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.96 | 107.82 | -10.65 | 155.81 | 0.4202 | 445.0 | 286.6 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -24.29 | 107.30 | -11.17 | 157.14 | 0.4564 | -644.0 | -456.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -22.15 | 107.44 | -11.02 | 155.29 | 0.4254 | 60.0 | 18.9 | |
| 4.52 | -5.00 | 2.49 | -5.00 | -23.22 | 107.32 | -11.14 | 156.15 | 0.4411 | 791.3 | 999999 | |
| 1.71 | 5.46 | 0.93 | 2.97 | -21.48 | 107.46 | -11.00 | 154.59 | 0.4157 | -817.1 | -373.2 | |
| 0.00 | 3.24 | 0.00 | 1.77 | -21.83 | 107.27 | -11.19 | 154.61 | 0.4220 | -113.0 | 120.6 | |
| 1.45 | -5.00 | 0.80 | -5.00 | -23.41 | 107.04 | -11.42 | 155.83 | 0.4457 | 427.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.09 | 107.12 | -11.34 | 154.60 | 0.4266 | 786.0 | 617.3 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -23.15 | 106.80 | -11.66 | 155.12 | 0.4436 | 645.0 | 463.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -19.52 | 107.06 | -11.40 | 151.41 | 0.3911 | -891.0 | -822.7 | |
| 0.68 | 13.48 | 0.37 | 7.36 | -21.93 | 106.84 | -11.62 | 153.88 | 0.4263 | 684.6 | -96.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -24.22 | 106.34 | -12.12 | 155.37 | 0.4615 | 652.0 | 480.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -24.03 | 106.33 | -12.14 | 155.15 | 0.4589 | 726.0 | 525.8 | |
| 0.00 | 2.39 | 0.00 | 1.31 | -21.64 | 106.48 | -11.99 | 152.85 | 0.4249 | 499.0 | 265.1 | |
| 1.62 | 157.99 | 0.89 | 86.30 | -22.12 | 106.37 | -12.09 | 153.20 | 0.4323 | 412.4 | -390.7 | |
| 4.52 | -47.00 | 2.46 | -47.00 | -21.07 | 106.40 | -12.07 | 152.02 | 0.4176 | -1187.2 | 999999 | |
| 0.34 | 1.36 | 0.19 | 0.75 | -22.64 | 106.23 | -12.24 | 153.51 | 0.4404 | 788.0 | 660.0 | |
| 8.10 | -47.00 | 4.40 | -47.00 | -20.66 | 106.27 | -12.20 | 151.26 | 0.4129 | 794.2 | 999999 | |
| 6.65 | -47.00 | 3.62 | -47.00 | -20.88 | 106.15 | -12.31 | 151.31 | 0.4168 | -412.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -23.74 | 105.83 | -12.64 | 153.97 | 0.4583 | -906.0 | -589.4 | |
| 2.30 | -47.00 | 1.26 | -47.00 | -21.14 | 105.90 | -12.56 | 151.15 | 0.4222 | -1066.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -25.40 | 105.45 | -13.01 | 155.01 | 0.4834 | 762.0 | 662.5 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -23.70 | 105.57 | -12.90 | 153.47 | 0.4596 | -857.0 | -814.8 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -20.22 | 105.85 | -12.61 | 149.89 | 0.4102 | 712.0 | 560.4 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -25.76 | 105.31 | -13.15 | 155.13 | 0.4892 | 727.0 | 496.9 | |
| 0.00 | 2.56 | 0.00 | 1.44 | -25.14 | 105.31 | -13.15 | 154.52 | 0.4808 | 807.0 | 651.2 | |
| 0.85 | -47.00 | 0.47 | -47.00 | -21.11 | 105.68 | -12.79 | 150.69 | 0.4235 | -1123.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.53 | 105.20 | -13.26 | 154.72 | 0.4868 | 608.0 | 418.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -19.18 | 105.81 | -12.66 | 148.39 | 0.3966 | -735.0 | -561.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.45 | 105.33 | -13.14 | 152.78 | 0.4578 | -741.0 | -602.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.86 | 105.06 | -13.40 | 154.82 | 0.4922 | 582.0 | 412.1 | |
| 0.00 | 3.07 | 0.00 | 1.71 | -23.77 | 105.23 | -13.24 | 152.96 | 0.4629 | -1011.0 | -830.6 | |
| 1.36 | -47.00 | 0.75 | -47.00 | -21.04 | 105.46 | -13.01 | 150.19 | 0.4244 | -1092.5 | 999999 | |
| 7.85 | -47.00 | 4.30 | -47.00 | -21.14 | 105.09 | -13.37 | 149.64 | 0.4286 | -1217.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.74 | 104.63 | -13.83 | 151.91 | 0.4667 | -608.0 | -524.9 | |
| 0.77 | 3.58 | 0.42 | 1.97 | -21.46 | 104.83 | -13.63 | 149.57 | 0.4349 | -944.7 | -764.8 | |
| 2.13 | 8.79 | 1.16 | 4.78 | -20.22 | 104.85 | -13.62 | 147.98 | 0.4185 | -931.4 | -730.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.44 | 104.80 | -13.67 | 148.19 | 0.4218 | -761.0 | -622.9 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -21.52 | 104.53 | -13.93 | 149.11 | 0.4382 | -890.0 | -741.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.27 | 104.53 | -13.94 | 148.77 | 0.4349 | -793.0 | -647.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -22.51 | 104.27 | -14.20 | 149.87 | 0.4533 | -835.0 | -609.4 | |
| 1.62 | 2.30 | 0.89 | 1.27 | -21.36 | 104.25 | -14.21 | 148.42 | 0.4384 | -880.7 | -955.8 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -19.87 | 104.36 | -14.10 | 146.61 | 0.4181 | -1029.0 | -789.4 | |
| 0.00 | 2.47 | 0.00 | 1.34 | -19.25 | 104.39 | -14.08 | 145.75 | 0.4098 | -955.0 | -712.0 | |
| 0.00 | 3.58 | 0.00 | 1.97 | -21.40 | 104.05 | -14.41 | 148.11 | 0.4405 | -242.0 | -444.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.39 | 103.84 | -14.62 | 150.18 | 0.4680 | -753.0 | -559.7 | |
| 3.92 | 17.91 | 2.18 | 9.98 | -22.68 | 103.89 | -14.58 | 149.42 | 0.4584 | -1052.5 | -677.0 | |
| 0.00 | 5.80 | 0.00 | 3.22 | -22.13 | 103.91 | -14.55 | 148.79 | 0.4511 | -989.0 | -808.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -20.19 | 104.11 | -14.36 | 146.58 | 0.4245 | -882.0 | -704.8 | |
| 1.36 | -79.00 | 0.76 | -79.00 | -22.93 | 103.79 | -14.67 | 149.57 | 0.4625 | -884.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -21.49 | 103.88 | -14.58 | 147.93 | 0.4431 | -1013.0 | -838.2 | |
| 1.88 | 7.00 | 1.05 | 3.92 | -23.29 | 103.52 | -14.95 | 149.54 | 0.4693 | -751.0 | -739.0 | |
| 0.00 | 3.07 | 0.00 | 1.71 | -22.36 | 103.62 | -14.84 | 148.58 | 0.4564 | -780.0 | -689.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.81 | 103.68 | -14.78 | 148.00 | 0.4489 | -711.0 | -628.2 | |
| 3.24 | -84.00 | 1.81 | -84.00 | -23.10 | 103.51 | -14.96 | 149.29 | 0.4669 | -972.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -22.81 | 103.47 | -14.99 | 148.89 | 0.4634 | -1036.0 | -856.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.46 | 103.52 | -14.94 | 147.27 | 0.4458 | -813.0 | -787.8 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -21.27 | 103.44 | -15.02 | 146.89 | 0.4440 | -583.0 | -611.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -20.35 | 103.51 | -14.96 | 145.74 | 0.4318 | -1050.0 | -795.1 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -23.78 | 103.13 | -15.34 | 149.48 | 0.4786 | -728.0 | -547.3 | |
| 2.56 | 233.83 | 1.41 | 129.10 | -21.11 | 103.36 | -15.10 | 146.54 | 0.4427 | -978.1 | -505.8 | |
| 1.45 | 2.39 | 0.80 | 1.32 | -21.65 | 103.24 | -15.23 | 147.04 | 0.4506 | -860.7 | -691.5 | |
| 5.46 | 6.14 | 3.07 | 3.45 | -23.29 | 102.99 | -15.48 | 148.68 | 0.4735 | -837.9 | -653.1 | |
| 3.58 | -93.00 | 1.98 | -93.00 | -21.37 | 103.04 | -15.43 | 146.33 | 0.4487 | -915.2 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.47 | -22.04 | 102.97 | -15.50 | 147.09 | 0.4578 | -638.0 | -574.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -21.88 | 102.82 | -15.65 | 146.64 | 0.4571 | -752.0 | -654.8 | |
| 1.45 | -93.00 | 0.80 | -93.00 | -21.21 | 102.86 | -15.61 | 145.82 | 0.4483 | -1141.4 | 999999 | |
| 3.67 | 22.86 | 2.05 | 12.79 | -22.58 | 102.70 | -15.76 | 147.35 | 0.4669 | -826.6 | -552.4 | |
| 18.60 | -93.00 | 10.27 | -93.00 | -20.80 | 102.77 | -15.69 | 145.11 | 0.4439 | -1228.9 | 999999 | |
| 12.11 | -93.00 | 6.66 | -93.00 | -20.19 | 102.84 | -15.63 | 144.37 | 0.4359 | -1272.8 | 999999 | |
| 3.75 | -93.00 | 2.08 | -93.00 | -21.30 | 102.59 | -15.88 | 145.49 | 0.4519 | -953.1 | 999999 | |
| 0.85 | -93.00 | 0.47 | -93.00 | -21.56 | 102.49 | -15.98 | 145.68 | 0.4559 | -651.6 | 999999 | |
| 3.24 | -100.00 | 1.81 | -100.00 | -22.20 | 102.38 | -16.08 | 146.35 | 0.4648 | -799.2 | 999999 | |
| 2.22 | -93.00 | 1.22 | -93.00 | -20.26 | 102.50 | -15.96 | 143.90 | 0.4398 | -902.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.98 | 101.94 | -16.52 | 145.36 | 0.4659 | -288.0 | -201.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -19.44 | 101.77 | -16.70 | 141.49 | 0.4369 | -846.0 | -702.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.13 | 101.67 | -16.79 | 140.85 | 0.4342 | -676.0 | -557.2 | |
| 0.00 | 2.30 | 0.00 | 1.28 | -20.55 | 101.29 | -17.18 | 142.35 | 0.4547 | -595.0 | -444.9 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -20.90 | 101.08 | -17.39 | 142.53 | 0.4608 | -619.0 | -547.7 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -20.36 | 100.32 | -18.15 | 140.59 | 0.4619 | -845.0 | -662.4 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -20.68 | 99.84 | -18.62 | 140.35 | 0.4702 | -794.0 | -591.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.05 | 99.06 | -19.41 | 138.29 | 0.4711 | -745.0 | -587.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.24 | 98.87 | -19.60 | 138.31 | 0.4752 | -753.0 | -625.2 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -20.53 | 97.07 | -21.39 | 136.34 | 0.4968 | -644.0 | -512.4 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -18.96 | 96.25 | -22.21 | 132.90 | 0.4901 | -572.0 | -427.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
