SDO HMI 2011-12-04 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.07 | 0.00 | 5.13 | -9.66 | 127.90 | 9.43 | 222.40 | 0.2403 | 910.2 | 681.4 | |
|
previous
or next observation for the same group /

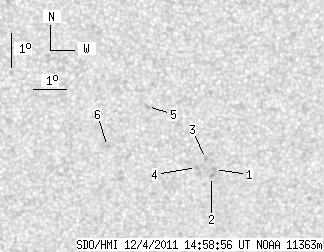

back to the solar disc SDO HMI 2011-12-04 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | -10.20 | 128.95 | 10.48 | 224.04 | 0.2588 | 898.0 | 671.7 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -10.41 | 128.86 | 10.40 | 223.24 | 0.2603 | 884.0 | 629.5 | |
| 0.00 | 1.96 | 0.00 | 1.00 | -9.87 | 128.66 | 10.20 | 224.18 | 0.2515 | 916.0 | 732.9 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -10.14 | 128.40 | 9.93 | 222.67 | 0.2516 | 986.0 | 744.8 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -8.31 | 126.86 | 8.40 | 223.42 | 0.2112 | 896.0 | 655.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.50 | 125.68 | 7.22 | 215.56 | 0.2141 | 881.0 | 665.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
