SDO HMI 2011-12-04 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 266.04 | 1515.72 | 145.11 | 826.82 | -21.94 | 107.52 | -10.40 | 156.50 | 0.4209 | 150.9 | 56.7 | |
|
previous
or next observation for the same group /

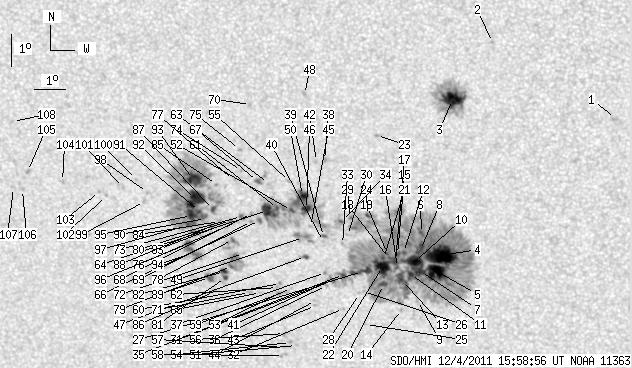

back to the solar disc SDO HMI 2011-12-04 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.25 | -18.23 | 116.25 | -1.66 | 175.09 | 0.3234 | -775.0 | -614.1 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -15.88 | 112.49 | -5.43 | 162.10 | 0.2973 | 944.0 | 695.7 | |
| 20.81 | 86.67 | 10.92 | 45.47 | -17.64 | 111.19 | -6.72 | 160.26 | 0.3319 | 1219.3 | 466.2 | |
| 37.28 | 812.68 | 20.23 | 442.43 | -22.57 | 110.59 | -7.33 | 163.26 | 0.4105 | 1536.6 | 374.2 | |
| 19.53 | -4.00 | 10.65 | -4.00 | -23.08 | 110.43 | -7.48 | 163.31 | 0.4191 | 1197.2 | 999999 | |
| 2.05 | -4.00 | 1.11 | -4.00 | -21.86 | 110.01 | -7.90 | 161.45 | 0.4027 | 912.8 | 999999 | |
| 4.61 | -4.00 | 2.51 | -4.00 | -23.08 | 109.91 | -8.00 | 162.23 | 0.4215 | 1079.8 | 999999 | |
| 5.20 | -4.00 | 2.82 | -4.00 | -22.38 | 109.95 | -7.96 | 161.75 | 0.4107 | 1214.1 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.69 | -24.02 | 109.76 | -8.16 | 162.64 | 0.4363 | 265.0 | 259.6 | |
| 11.52 | -4.00 | 6.27 | -4.00 | -22.76 | 109.74 | -8.18 | 161.61 | 0.4176 | 1298.9 | 999999 | |
| 2.30 | -4.00 | 1.26 | -4.00 | -23.18 | 109.58 | -8.33 | 161.63 | 0.4246 | 960.3 | 999999 | |
| 1.54 | -4.00 | 0.84 | -4.00 | -22.47 | 109.40 | -8.52 | 160.66 | 0.4150 | 1084.4 | 999999 | |
| 12.88 | -4.00 | 7.06 | -4.00 | -23.38 | 109.31 | -8.61 | 161.24 | 0.4289 | 809.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -24.32 | 109.21 | -8.70 | 161.80 | 0.4433 | 538.0 | 349.9 | |
| 1.88 | -4.00 | 1.02 | -4.00 | -22.54 | 109.20 | -8.71 | 160.30 | 0.4170 | 1018.7 | 999999 | |
| 1.36 | -4.00 | 0.75 | -4.00 | -22.96 | 109.17 | -8.74 | 160.61 | 0.4234 | 925.9 | 999999 | |
| 3.24 | -4.00 | 1.77 | -4.00 | -22.76 | 109.12 | -8.79 | 160.34 | 0.4208 | 1043.0 | 999999 | |
| 0.68 | -4.00 | 0.37 | -4.00 | -22.67 | 108.93 | -8.98 | 159.87 | 0.4204 | 975.5 | 999999 | |
| 0.94 | -4.00 | 0.51 | -4.00 | -22.51 | 108.88 | -9.04 | 159.61 | 0.4183 | 896.5 | 999999 | |
| 3.58 | -4.00 | 1.97 | -4.00 | -23.51 | 108.68 | -9.23 | 160.09 | 0.4341 | 730.5 | 999999 | |
| 0.85 | -4.00 | 0.47 | -4.00 | -22.67 | 108.74 | -9.18 | 159.47 | 0.4215 | 906.2 | 999999 | |
| 14.76 | -4.00 | 8.07 | -4.00 | -22.92 | 108.69 | -9.23 | 159.60 | 0.4255 | 1146.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.77 | 108.75 | -9.16 | 155.42 | 0.3640 | 896.0 | 617.7 | |
| 1.79 | -4.00 | 0.97 | -4.00 | -21.29 | 108.31 | -9.60 | 157.26 | 0.4038 | -756.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -24.81 | 107.99 | -9.92 | 159.88 | 0.4567 | 537.0 | 418.0 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.73 | 108.01 | -9.91 | 158.99 | 0.4411 | -352.0 | -314.1 | |
| 9.90 | -4.00 | 5.43 | -4.00 | -23.09 | 108.03 | -9.89 | 158.43 | 0.4316 | 758.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.80 | 107.87 | -10.04 | 158.79 | 0.4428 | -782.0 | -546.6 | |
| 1.02 | -4.00 | 0.55 | -4.00 | -21.36 | 107.76 | -10.15 | 156.18 | 0.4082 | -917.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.93 | 107.62 | -10.29 | 156.50 | 0.4174 | 694.0 | 594.9 | |
| 2.13 | 23.54 | 1.17 | 12.97 | -23.19 | 107.40 | -10.52 | 157.31 | 0.4368 | 810.1 | 318.7 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -24.29 | 107.31 | -10.61 | 158.17 | 0.4531 | -227.0 | -324.3 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -22.22 | 107.44 | -10.47 | 156.43 | 0.4227 | -427.0 | -168.5 | |
| 1.36 | 8.79 | 0.74 | 4.77 | -21.49 | 107.46 | -10.45 | 155.70 | 0.4120 | -794.1 | -368.6 | |
| 2.05 | -31.00 | 1.13 | -31.00 | -23.38 | 107.02 | -10.89 | 156.78 | 0.4419 | 528.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -23.54 | 106.81 | -11.10 | 156.55 | 0.4455 | 511.0 | 356.6 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -23.12 | 106.81 | -11.10 | 156.14 | 0.4395 | 607.0 | 496.2 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -19.56 | 107.05 | -10.86 | 152.59 | 0.3874 | -1036.0 | -848.5 | |
| 1.54 | 141.77 | 0.84 | 77.24 | -21.97 | 106.84 | -11.07 | 154.99 | 0.4230 | 652.2 | -389.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.13 | 106.83 | -11.08 | 155.13 | 0.4253 | 653.0 | 492.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -23.51 | 106.65 | -11.26 | 156.22 | 0.4460 | 8.0 | 4.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.59 | 106.80 | -11.12 | 152.09 | 0.3898 | -709.0 | -663.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -24.19 | 106.39 | -11.52 | 156.41 | 0.4572 | 658.0 | 517.8 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -24.03 | 106.41 | -11.51 | 156.28 | 0.4549 | 369.0 | 422.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -21.65 | 106.45 | -11.47 | 153.86 | 0.4212 | 493.0 | 175.4 | |
| 5.20 | -39.00 | 2.83 | -39.00 | -21.11 | 106.36 | -11.55 | 153.07 | 0.4143 | -1237.2 | 999999 | |
| 2.13 | 3.07 | 1.17 | 1.69 | -22.61 | 106.20 | -11.71 | 154.45 | 0.4363 | 634.0 | 517.6 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -17.49 | 106.55 | -11.36 | 148.66 | 0.3627 | -846.0 | -642.7 | |
| 0.00 | 15.35 | 0.00 | 8.41 | -22.00 | 106.19 | -11.72 | 153.76 | 0.4279 | 43.0 | -28.1 | |
| 5.97 | -39.00 | 3.24 | -39.00 | -20.66 | 106.27 | -11.65 | 152.35 | 0.4088 | 851.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -25.50 | 105.63 | -12.28 | 156.32 | 0.4802 | 787.0 | 552.1 | |
| 2.30 | -39.00 | 1.25 | -39.00 | -21.14 | 105.87 | -12.04 | 152.15 | 0.4183 | -1028.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -23.61 | 105.65 | -12.26 | 154.50 | 0.4539 | -580.0 | -519.7 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -25.40 | 105.44 | -12.47 | 155.91 | 0.4800 | 797.0 | 650.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.22 | 105.88 | -12.03 | 151.03 | 0.4056 | 692.0 | 518.7 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -25.11 | 105.27 | -12.64 | 155.34 | 0.4770 | 769.0 | 603.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -25.57 | 105.22 | -12.69 | 155.70 | 0.4836 | 584.0 | 480.6 | |
| 0.00 | 2.47 | 0.00 | 1.40 | -25.83 | 105.16 | -12.76 | 155.84 | 0.4876 | 481.0 | 514.0 | |
| 0.00 | 3.92 | 0.00 | 2.18 | -23.77 | 105.34 | -12.57 | 154.11 | 0.4583 | -779.0 | -810.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.48 | 105.30 | -12.61 | 153.74 | 0.4545 | -965.0 | -801.4 | |
| 1.71 | -39.00 | 0.93 | -39.00 | -21.08 | 105.42 | -12.49 | 151.21 | 0.4208 | -1109.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.61 | 105.19 | -12.72 | 153.68 | 0.4571 | -953.0 | -757.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -20.28 | 105.20 | -12.71 | 149.78 | 0.4119 | -288.0 | -411.3 | |
| 11.17 | -39.00 | 6.11 | -39.00 | -21.14 | 105.09 | -12.82 | 150.67 | 0.4242 | -1174.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -23.77 | 104.61 | -13.30 | 152.85 | 0.4634 | -555.0 | -478.6 | |
| 1.88 | 2.56 | 1.03 | 1.40 | -21.46 | 104.81 | -13.11 | 150.52 | 0.4308 | -786.6 | -743.0 | |
| 2.81 | 6.99 | 1.53 | 3.80 | -20.22 | 104.85 | -13.06 | 149.02 | 0.4139 | -938.1 | -807.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.24 | 104.57 | -13.35 | 149.80 | 0.4297 | -877.0 | -698.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -21.49 | 104.54 | -13.37 | 150.08 | 0.4333 | -912.0 | -817.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -17.81 | 104.82 | -13.09 | 145.48 | 0.3823 | -702.0 | -605.6 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -23.77 | 104.25 | -13.67 | 152.22 | 0.4660 | -676.0 | -463.6 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -22.52 | 104.18 | -13.74 | 150.67 | 0.4497 | -673.0 | -512.6 | |
| 1.54 | 2.99 | 0.84 | 1.64 | -21.33 | 104.23 | -13.68 | 149.32 | 0.4337 | -866.4 | -858.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.88 | 104.36 | -13.55 | 147.63 | 0.4134 | -1086.0 | -837.9 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -19.22 | 104.36 | -13.56 | 146.68 | 0.4048 | -928.0 | -808.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.49 | 104.08 | -13.83 | 149.26 | 0.4369 | -805.0 | -622.0 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -20.19 | 104.08 | -13.84 | 147.53 | 0.4200 | -724.0 | -680.0 | |
| 1.79 | 10.49 | 0.99 | 5.81 | -22.07 | 103.86 | -14.05 | 149.58 | 0.4463 | -938.7 | -763.0 | |
| 1.62 | 24.99 | 0.90 | 13.89 | -22.94 | 103.74 | -14.18 | 150.41 | 0.4587 | -878.5 | -669.6 | |
| 0.34 | 1.96 | 0.19 | 1.08 | -21.46 | 103.86 | -14.06 | 148.81 | 0.4384 | -1014.2 | -823.0 | |
| 2.13 | 9.13 | 1.19 | 5.10 | -23.29 | 103.50 | -14.41 | 150.42 | 0.4651 | -868.8 | -534.7 | |
| 2.81 | -81.00 | 1.57 | -81.00 | -23.10 | 103.49 | -14.42 | 150.18 | 0.4627 | -1051.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -21.62 | 103.51 | -14.40 | 148.42 | 0.4433 | -751.0 | -637.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -21.49 | 103.49 | -14.42 | 148.22 | 0.4418 | -1006.0 | -887.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.32 | 103.51 | -14.40 | 146.68 | 0.4265 | -953.0 | -781.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -23.74 | 103.08 | -14.83 | 150.26 | 0.4743 | -801.0 | -612.7 | |
| 2.39 | 257.27 | 1.31 | 141.66 | -21.11 | 103.34 | -14.58 | 147.44 | 0.4382 | -980.1 | -509.2 | |
| 1.11 | -87.00 | 0.61 | -87.00 | -21.65 | 103.18 | -14.73 | 147.88 | 0.4464 | -739.1 | 999999 | |
| 4.78 | 8.44 | 2.68 | 4.73 | -23.29 | 102.97 | -14.94 | 149.54 | 0.4693 | -859.9 | -642.2 | |
| 0.77 | -87.00 | 0.42 | -87.00 | -21.40 | 103.05 | -14.87 | 147.32 | 0.4443 | -911.4 | 999999 | |
| 1.62 | -87.00 | 0.89 | -87.00 | -21.18 | 102.87 | -15.04 | 146.73 | 0.4430 | -1048.4 | 999999 | |
| 19.11 | -87.00 | 10.52 | -87.00 | -20.80 | 102.78 | -15.13 | 146.06 | 0.4390 | -1231.3 | 999999 | |
| 14.25 | -87.00 | 7.81 | -87.00 | -20.16 | 102.78 | -15.14 | 145.17 | 0.4310 | -1238.1 | 999999 | |
| 3.07 | 20.47 | 1.71 | 11.43 | -22.49 | 102.53 | -15.38 | 147.85 | 0.4625 | -867.2 | -556.1 | |
| 7.08 | -87.00 | 3.92 | -87.00 | -21.31 | 102.60 | -15.32 | 146.43 | 0.4470 | -932.7 | 999999 | |
| 2.47 | -94.00 | 1.38 | -94.00 | -22.20 | 102.40 | -15.52 | 147.27 | 0.4600 | -862.6 | 999999 | |
| 1.19 | -87.00 | 0.66 | -87.00 | -21.62 | 102.43 | -15.49 | 146.57 | 0.4525 | -634.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -20.58 | 101.23 | -16.69 | 143.17 | 0.4504 | -850.0 | -592.2 | |
| 0.00 | 2.13 | 0.00 | 1.18 | -20.86 | 101.10 | -16.82 | 143.37 | 0.4551 | -735.0 | -485.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -20.17 | 100.91 | -17.00 | 142.08 | 0.4485 | -674.0 | -559.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.42 | 100.45 | -17.46 | 141.73 | 0.4559 | -767.0 | -610.0 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -20.68 | 99.86 | -18.06 | 141.19 | 0.4646 | -776.0 | -618.2 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -20.55 | 99.64 | -18.27 | 140.69 | 0.4653 | -815.0 | -645.9 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -20.24 | 98.45 | -19.47 | 138.50 | 0.4738 | -680.0 | -601.2 | |
| 0.00 | 2.05 | 0.00 | 1.16 | -19.93 | 97.32 | -20.60 | 136.48 | 0.4822 | -885.0 | -741.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.50 | 97.07 | -20.84 | 137.01 | 0.4908 | -672.0 | -580.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.44 | 96.78 | -21.14 | 136.53 | 0.4932 | -569.0 | -412.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -18.36 | 97.02 | -20.89 | 133.61 | 0.4694 | -814.0 | -637.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
