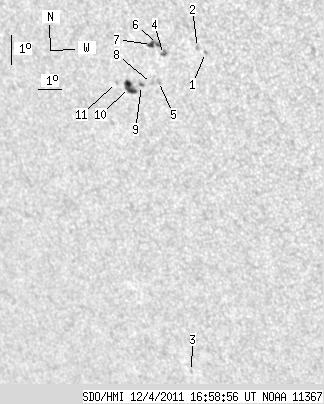

SDO HMI 2011-12-04 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.46 | 30.79 | 11.30 | 21.10 | -18.64 | 77.31 | -40.05 | 118.07 | 0.6936 | -121.5 | -53.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.95 | -17.69 | 79.81 | -37.55 | 118.12 | 0.6606 | 704.0 | 569.5 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -17.54 | 79.54 | -37.82 | 117.75 | 0.6631 | 399.0 | 375.2 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -28.00 | 75.60 | -41.76 | 128.93 | 0.7583 | -474.0 | -419.2 | |
| 2.30 | 3.50 | 1.55 | 2.35 | -17.77 | 78.13 | -39.23 | 117.33 | 0.6804 | 677.1 | 633.0 | |
| 0.00 | 1.79 | 0.00 | 1.22 | -18.61 | 77.70 | -39.66 | 118.27 | 0.6892 | -470.0 | -420.0 | |
| 1.45 | 6.48 | 0.98 | 4.38 | -17.46 | 77.97 | -39.39 | 116.82 | 0.6808 | 846.2 | 580.8 | |
| 3.16 | -6.00 | 2.14 | -6.00 | -17.46 | 77.73 | -39.63 | 116.71 | 0.6835 | 615.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -18.68 | 77.39 | -39.97 | 118.20 | 0.6928 | -424.0 | -399.6 | |
| 1.11 | 1.71 | 0.76 | 1.18 | -18.74 | 76.97 | -40.40 | 118.07 | 0.6979 | -661.9 | -639.1 | |
| 8.44 | 10.41 | 5.87 | 7.23 | -18.81 | 76.45 | -40.91 | 117.91 | 0.7039 | -686.7 | -638.3 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -18.65 | 75.96 | -41.41 | 117.47 | 0.7086 | -498.0 | -361.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
