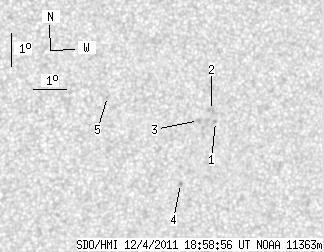

SDO HMI 2011-12-04 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.19 | 0.00 | 4.23 | -10.40 | 128.24 | 11.98 | 227.27 | 0.2796 | 801.2 | 722.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.35 | -10.22 | 129.07 | 12.81 | 229.67 | 0.2875 | 890.0 | 792.6 | |
| 0.00 | 2.90 | 0.00 | 1.50 | -9.88 | 128.93 | 12.67 | 230.28 | 0.2823 | 592.0 | 704.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -10.18 | 128.54 | 12.29 | 228.59 | 0.2805 | 939.0 | 756.2 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -12.08 | 128.07 | 11.81 | 222.67 | 0.2967 | 902.0 | 760.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -9.46 | 125.74 | 9.48 | 223.33 | 0.2380 | 683.0 | 611.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
