SDO HMI 2011-12-04 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.29 | 294.19 | 41.33 | 155.42 | 19.48 | 123.64 | 7.38 | 339.93 | 0.3505 | 406.5 | 196.9 | |
|
previous
or next observation for the same group /

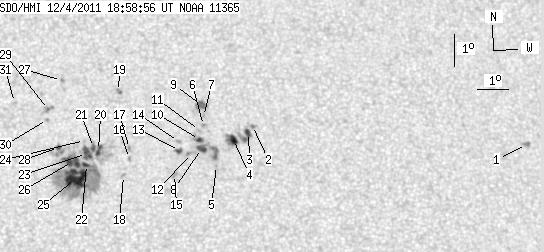

back to the solar disc SDO HMI 2011-12-04 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.50 | 0.00 | 1.96 | 19.82 | 136.90 | 20.64 | 315.00 | 0.4711 | 919.0 | 749.7 | |
| 0.00 | 2.64 | 0.00 | 1.42 | 20.43 | 127.98 | 11.72 | 330.85 | 0.3927 | -778.0 | -602.4 | |
| 3.41 | 10.41 | 1.83 | 5.58 | 20.21 | 127.84 | 11.58 | 330.86 | 0.3885 | -896.2 | -774.7 | |
| 4.95 | 10.66 | 2.65 | 5.71 | 19.99 | 127.34 | 11.08 | 331.61 | 0.3816 | -1065.7 | -921.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.18 | 126.74 | 10.48 | 331.83 | 0.3656 | -948.0 | -794.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 20.43 | 126.41 | 10.15 | 334.19 | 0.3810 | -916.0 | -765.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 20.71 | 126.43 | 10.17 | 334.49 | 0.3852 | -889.0 | -781.6 | |
| 4.86 | 22.18 | 2.59 | 11.82 | 19.71 | 126.30 | 10.04 | 333.53 | 0.3698 | -1056.1 | -903.4 | |
| 0.00 | 9.47 | 0.00 | 5.09 | 21.06 | 126.39 | 10.13 | 334.99 | 0.3899 | -1009.0 | -784.3 | |
| 2.64 | -8.00 | 1.41 | -8.00 | 19.99 | 126.25 | 9.99 | 333.99 | 0.3736 | -1002.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 20.27 | 126.27 | 10.01 | 334.30 | 0.3778 | -822.0 | -576.3 | |
| 0.00 | 3.24 | 0.00 | 1.72 | 19.55 | 125.97 | 9.71 | 334.08 | 0.3652 | -713.0 | -684.3 | |
| 2.13 | 4.01 | 1.13 | 2.13 | 19.65 | 125.59 | 9.34 | 335.06 | 0.3640 | -975.8 | -709.6 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 19.93 | 125.58 | 9.32 | 335.44 | 0.3680 | -737.0 | -601.1 | |
| 0.00 | 2.99 | 0.00 | 1.58 | 18.90 | 125.39 | 9.14 | 334.59 | 0.3516 | -958.0 | -739.9 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 19.40 | 124.00 | 7.74 | 338.62 | 0.3500 | 817.0 | 647.9 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 19.71 | 124.01 | 7.75 | 338.93 | 0.3548 | 865.0 | 727.2 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 18.87 | 123.78 | 7.52 | 338.57 | 0.3406 | 908.0 | 762.6 | |
| 0.00 | 2.73 | 0.00 | 1.46 | 21.51 | 123.75 | 7.49 | 341.32 | 0.3806 | 948.0 | 735.3 | |
| 4.18 | 188.16 | 2.21 | 98.84 | 19.65 | 123.03 | 6.77 | 341.33 | 0.3484 | 861.7 | 513.7 | |
| 2.47 | -20.00 | 1.31 | -20.00 | 19.74 | 122.87 | 6.62 | 341.81 | 0.3490 | 843.5 | 999999 | |
| 2.73 | -20.00 | 1.44 | -20.00 | 19.21 | 122.63 | 6.38 | 341.93 | 0.3395 | 837.2 | 999999 | |
| 8.02 | -20.00 | 4.23 | -20.00 | 19.56 | 122.65 | 6.39 | 342.22 | 0.3449 | 917.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.96 | 122.60 | 6.34 | 342.72 | 0.3511 | 579.0 | 396.4 | |
| 28.92 | -20.00 | 15.17 | -20.00 | 18.78 | 122.27 | 6.01 | 342.48 | 0.3309 | 1273.2 | 999999 | |
| 10.83 | -20.00 | 5.70 | -20.00 | 19.31 | 122.20 | 5.94 | 343.18 | 0.3388 | 981.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.86 | 121.94 | 5.69 | 345.84 | 0.3777 | 711.0 | 650.8 | |
| 1.96 | 9.72 | 1.03 | 5.12 | 19.74 | 121.77 | 5.51 | 344.68 | 0.3438 | 788.2 | 638.8 | |
| 1.19 | 5.89 | 0.63 | 3.12 | 20.94 | 121.50 | 5.24 | 346.30 | 0.3615 | 860.1 | 648.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 20.62 | 121.45 | 5.20 | 346.18 | 0.3564 | 917.0 | 729.1 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 21.16 | 120.42 | 4.17 | 349.15 | 0.3613 | 588.0 | 418.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
