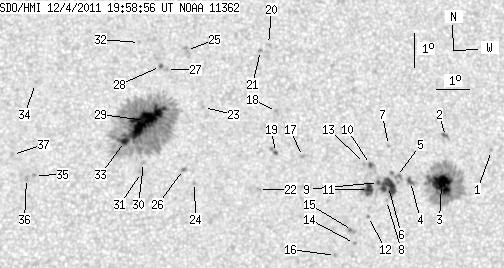

SDO HMI 2011-12-04 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.12 | 503.93 | 53.47 | 260.34 | 7.79 | 129.91 | 14.21 | 299.57 | 0.2791 | -33.7 | 114.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.69 | 7.65 | 137.42 | 21.72 | 288.90 | 0.3893 | -839.0 | -740.7 | |
| 0.00 | 3.33 | 0.00 | 1.77 | 8.07 | 135.97 | 20.27 | 291.16 | 0.3694 | 754.0 | 650.1 | |
| 22.35 | 118.73 | 11.85 | 63.02 | 6.64 | 135.78 | 20.07 | 287.58 | 0.3592 | -1293.7 | -394.2 | |
| 3.16 | 4.86 | 1.66 | 2.56 | 6.73 | 134.80 | 19.10 | 288.63 | 0.3444 | -997.4 | -785.2 | |
| 0.00 | 6.82 | 0.00 | 3.59 | 6.88 | 134.37 | 18.66 | 289.44 | 0.3384 | -815.0 | -736.6 | |
| 15.35 | 37.53 | 8.06 | 19.67 | 6.58 | 134.11 | 18.40 | 288.84 | 0.3328 | -1029.1 | -722.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.80 | 134.16 | 18.45 | 292.22 | 0.3403 | -742.0 | -612.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 6.17 | 134.03 | 18.32 | 287.70 | 0.3296 | -705.0 | -605.0 | |
| 1.02 | -6.00 | 0.54 | -6.00 | 6.70 | 133.80 | 18.09 | 289.47 | 0.3286 | -1037.8 | 999999 | |
| 1.62 | 3.16 | 0.85 | 1.65 | 7.24 | 133.57 | 17.86 | 291.25 | 0.3280 | -915.2 | -718.7 | |
| 9.13 | -6.00 | 4.77 | -6.00 | 6.50 | 133.48 | 17.77 | 289.17 | 0.3225 | -1076.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 5.69 | 133.45 | 17.74 | 286.79 | 0.3182 | -847.0 | -632.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 7.27 | 133.38 | 17.68 | 291.53 | 0.3253 | -910.0 | -762.9 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 4.90 | 132.99 | 17.29 | 284.69 | 0.3074 | -920.0 | -772.6 | |
| 0.00 | 2.64 | 0.00 | 1.38 | 5.28 | 132.94 | 17.23 | 285.95 | 0.3082 | -917.0 | -877.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 4.54 | 132.39 | 16.69 | 284.01 | 0.2964 | -860.0 | -715.1 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 7.48 | 131.46 | 15.76 | 294.45 | 0.2971 | -884.0 | -635.7 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 8.82 | 130.71 | 15.01 | 299.65 | 0.2957 | -974.0 | -796.4 | |
| 1.19 | 3.41 | 0.62 | 1.76 | 7.60 | 130.63 | 14.93 | 295.99 | 0.2854 | 539.1 | 675.1 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 10.83 | 130.55 | 14.85 | 305.59 | 0.3110 | -886.0 | -693.6 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 10.65 | 130.30 | 14.59 | 305.57 | 0.3058 | -1042.0 | -820.8 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 6.50 | 130.07 | 14.37 | 293.15 | 0.2694 | -814.0 | -625.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.95 | 128.47 | 12.76 | 304.09 | 0.2647 | 747.0 | 576.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 6.71 | 128.12 | 12.42 | 297.04 | 0.2409 | -803.0 | -680.1 | |
| 0.00 | 3.07 | 0.00 | 1.58 | 10.65 | 128.01 | 12.31 | 310.21 | 0.2755 | 736.0 | 675.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 7.10 | 127.80 | 12.09 | 299.10 | 0.2390 | -1088.0 | -779.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 10.09 | 127.37 | 11.67 | 310.02 | 0.2613 | 913.0 | 645.6 | |
| 1.11 | 1.36 | 0.57 | 0.70 | 10.18 | 127.19 | 11.49 | 310.73 | 0.2599 | 988.5 | 1031.7 | |
| 43.84 | 285.58 | 22.34 | 145.46 | 8.56 | 126.68 | 10.98 | 306.82 | 0.2363 | 1356.2 | 434.8 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 7.31 | 126.59 | 10.88 | 302.50 | 0.2231 | 896.0 | 698.0 | |
| 0.00 | 2.56 | 0.00 | 1.30 | 7.01 | 126.52 | 10.82 | 301.51 | 0.2195 | 802.0 | 593.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 10.90 | 126.58 | 10.87 | 314.36 | 0.2603 | 817.0 | 642.7 | |
| 4.35 | -29.00 | 2.21 | -29.00 | 7.94 | 126.03 | 10.32 | 306.25 | 0.2211 | 1268.1 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 9.67 | 123.38 | 7.67 | 320.56 | 0.2082 | 594.0 | 609.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.93 | 123.29 | 7.59 | 310.66 | 0.1737 | 968.0 | 807.1 | |
| 0.00 | 2.47 | 0.00 | 1.24 | 6.84 | 123.05 | 7.35 | 311.17 | 0.1695 | 953.0 | 771.2 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 7.55 | 122.64 | 6.94 | 315.86 | 0.1728 | 909.0 | 741.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
