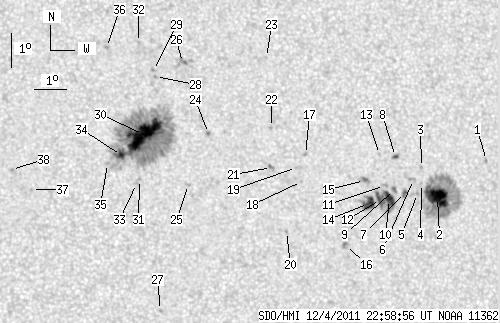

SDO HMI 2011-12-04 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.74 | 485.66 | 50.69 | 253.29 | 7.80 | 130.17 | 16.13 | 296.49 | 0.3076 | -87.6 | 112.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-04 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.74 | 7.74 | 137.48 | 23.43 | 287.95 | 0.4160 | -808.0 | -683.9 | |
| 25.68 | 120.04 | 13.78 | 64.46 | 6.65 | 135.84 | 21.79 | 286.40 | 0.3861 | -1228.8 | -327.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 7.54 | 135.37 | 21.32 | 288.98 | 0.3829 | -735.0 | -522.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 7.07 | 135.35 | 21.30 | 287.80 | 0.3803 | -756.0 | -538.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 6.77 | 135.21 | 21.16 | 287.15 | 0.3768 | -917.0 | -712.9 | |
| 0.00 | 2.47 | 0.00 | 1.32 | 7.18 | 135.10 | 21.05 | 288.30 | 0.3770 | -646.0 | -645.6 | |
| 0.68 | 4.01 | 0.36 | 2.14 | 6.80 | 134.79 | 20.75 | 287.53 | 0.3705 | -988.9 | -791.9 | |
| 1.62 | 2.56 | 0.86 | 1.36 | 7.87 | 134.56 | 20.51 | 290.49 | 0.3722 | 735.1 | 589.1 | |
| 0.00 | 2.30 | 0.00 | 1.23 | 6.89 | 134.48 | 20.43 | 288.01 | 0.3660 | -976.0 | -739.9 | |
| 9.30 | 25.59 | 4.94 | 13.58 | 6.59 | 134.31 | 20.26 | 287.36 | 0.3620 | -936.2 | -816.2 | |
| 0.00 | 2.47 | 0.00 | 1.31 | 7.01 | 134.17 | 20.12 | 288.58 | 0.3618 | -674.0 | -572.2 | |
| 6.74 | -10.00 | 3.57 | -10.00 | 6.59 | 134.02 | 19.98 | 287.58 | 0.3576 | -1011.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 7.93 | 134.05 | 20.01 | 291.09 | 0.3648 | -800.0 | -611.0 | |
| 9.64 | 13.22 | 5.10 | 6.99 | 6.48 | 133.64 | 19.59 | 287.56 | 0.3510 | -1109.0 | -822.9 | |
| 0.00 | 5.29 | 0.00 | 2.80 | 7.16 | 133.54 | 19.49 | 289.51 | 0.3528 | -1066.0 | -795.8 | |
| 0.00 | 3.58 | 0.00 | 1.88 | 5.23 | 132.87 | 18.82 | 284.62 | 0.3335 | -979.0 | -826.1 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 7.94 | 131.72 | 17.67 | 293.49 | 0.3293 | -951.0 | -777.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.13 | 131.56 | 17.51 | 291.36 | 0.3221 | -837.0 | -643.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 7.55 | 131.42 | 17.38 | 292.73 | 0.3224 | -663.0 | -458.5 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 5.65 | 131.04 | 17.00 | 287.37 | 0.3062 | -780.0 | -531.1 | |
| 0.00 | 2.30 | 0.00 | 1.20 | 7.55 | 130.64 | 16.60 | 293.65 | 0.3105 | 805.0 | 604.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 8.74 | 130.69 | 16.65 | 297.06 | 0.3194 | -999.0 | -800.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 10.84 | 130.65 | 16.60 | 302.78 | 0.3352 | -874.0 | -710.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 8.57 | 128.73 | 14.69 | 299.45 | 0.2892 | 952.0 | 812.5 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 7.05 | 128.06 | 14.02 | 295.61 | 0.2678 | -776.0 | -633.2 | |
| 0.00 | 8.19 | 0.00 | 4.25 | 10.69 | 128.02 | 13.97 | 306.89 | 0.2980 | 808.0 | 643.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 3.32 | 127.13 | 13.08 | 282.55 | 0.2325 | -842.0 | -646.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 10.28 | 127.17 | 13.12 | 307.42 | 0.2825 | 1113.0 | 895.3 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 10.46 | 127.11 | 13.07 | 308.05 | 0.2836 | 1070.0 | 835.5 | |
| 40.61 | 265.41 | 20.82 | 136.08 | 8.54 | 126.73 | 12.69 | 302.99 | 0.2601 | 1328.5 | 436.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 7.20 | 126.57 | 12.52 | 298.71 | 0.2464 | 859.0 | 682.6 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 11.30 | 126.69 | 12.64 | 311.28 | 0.2869 | 771.0 | 528.5 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 7.08 | 126.47 | 12.43 | 298.46 | 0.2440 | 741.0 | 529.4 | |
| 2.47 | -30.00 | 1.26 | -30.00 | 7.92 | 126.04 | 11.99 | 302.31 | 0.2447 | 1242.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.68 | 125.61 | 11.56 | 302.40 | 0.2363 | 223.0 | 225.7 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 11.15 | 125.70 | 11.65 | 313.17 | 0.2729 | 1046.0 | 765.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 6.91 | 123.29 | 9.24 | 305.24 | 0.1961 | 894.0 | 652.8 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.51 | 122.70 | 8.65 | 309.50 | 0.1942 | 949.0 | 785.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
