SDO HMI 2011-12-04 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.88 | 0.00 | 10.34 | -10.77 | 127.79 | 13.75 | 230.35 | 0.3062 | 821.2 | 655.6 | |
|
previous
or next observation for the same group /

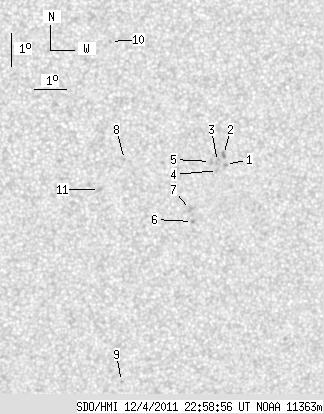

back to the solar disc SDO HMI 2011-12-04 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.71 | -10.24 | 129.08 | 15.04 | 234.04 | 0.3169 | 856.0 | 731.4 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -9.94 | 129.01 | 14.96 | 234.70 | 0.3130 | 964.0 | 803.5 | |
| 0.00 | 2.05 | 0.00 | 1.07 | -10.15 | 128.83 | 14.79 | 233.83 | 0.3126 | 700.0 | 742.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -10.42 | 128.84 | 14.80 | 233.14 | 0.3154 | 811.0 | 663.1 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -10.15 | 128.61 | 14.57 | 233.43 | 0.3097 | 817.0 | 713.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -11.96 | 128.15 | 14.10 | 228.00 | 0.3221 | 844.0 | 655.3 | |
| 0.00 | 3.75 | 0.00 | 1.96 | -11.60 | 128.06 | 14.02 | 228.71 | 0.3172 | 903.0 | 577.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -10.09 | 125.96 | 11.91 | 228.06 | 0.2745 | 821.0 | 574.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -16.85 | 126.21 | 12.17 | 214.18 | 0.3607 | 716.0 | 588.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -6.56 | 125.43 | 11.38 | 238.14 | 0.2319 | 834.0 | 665.5 | |
| 0.00 | 2.39 | 0.00 | 1.23 | -10.99 | 125.23 | 11.18 | 223.86 | 0.2760 | 767.0 | 501.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
