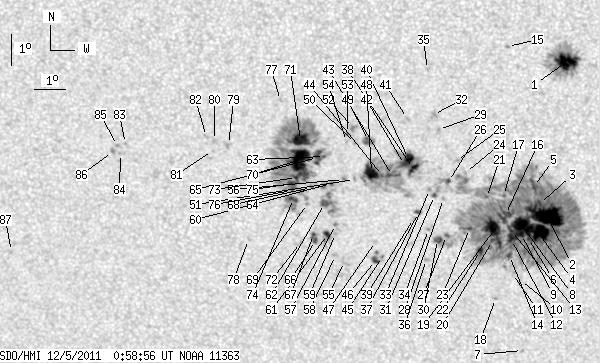

SDO HMI 2011-12-05 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 281.58 | 1521.09 | 151.58 | 819.66 | -21.89 | 107.50 | -5.45 | 167.03 | 0.3948 | 160.5 | 67.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.76 | 78.25 | 11.34 | 40.79 | -17.66 | 111.17 | -1.78 | 174.56 | 0.3133 | 1250.9 | 483.2 | |
| 43.00 | 860.70 | 23.15 | 464.60 | -22.52 | 110.47 | -2.48 | 174.16 | 0.3937 | 1536.7 | 390.7 | |
| 1.54 | -2.00 | 0.82 | -2.00 | -22.13 | 110.25 | -2.69 | 173.53 | 0.3879 | 1304.1 | 999999 | |
| 21.25 | -2.00 | 11.49 | -2.00 | -23.07 | 110.20 | -2.74 | 173.70 | 0.4029 | 1294.5 | 999999 | |
| 6.23 | -2.00 | 3.33 | -2.00 | -21.59 | 110.07 | -2.87 | 172.92 | 0.3795 | 965.0 | 999999 | |
| 1.02 | -2.00 | 0.55 | -2.00 | -23.26 | 109.88 | -3.07 | 173.02 | 0.4065 | 915.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -26.93 | 109.58 | -3.36 | 173.51 | 0.4645 | 663.0 | 517.1 | |
| 16.55 | -2.00 | 8.94 | -2.00 | -22.81 | 109.66 | -3.28 | 172.38 | 0.3998 | 1366.5 | 999999 | |
| 3.93 | -2.00 | 2.12 | -2.00 | -23.13 | 109.65 | -3.29 | 172.48 | 0.4049 | 1023.7 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -24.62 | 109.58 | -3.36 | 172.83 | 0.4286 | 26.0 | -71.9 | |
| 0.00 | 2.30 | 0.00 | 1.26 | -24.39 | 109.33 | -3.62 | 172.21 | 0.4256 | 187.0 | 143.7 | |
| 2.99 | -2.00 | 1.62 | -2.00 | -23.29 | 109.33 | -3.62 | 171.80 | 0.4082 | 940.1 | 999999 | |
| 0.34 | -2.00 | 0.18 | -2.00 | -23.00 | 109.34 | -3.61 | 171.71 | 0.4036 | 1067.5 | 999999 | |
| 2.65 | -2.00 | 1.44 | -2.00 | -23.81 | 109.25 | -3.70 | 171.83 | 0.4166 | 579.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -17.19 | 109.34 | -3.60 | 168.79 | 0.3100 | 897.0 | 754.4 | |
| 13.14 | -2.00 | 7.08 | -2.00 | -22.49 | 109.16 | -3.79 | 171.09 | 0.3959 | 1025.5 | 999999 | |
| 0.94 | -2.00 | 0.50 | -2.00 | -21.88 | 109.11 | -3.83 | 170.71 | 0.3863 | 792.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -25.21 | 108.75 | -4.20 | 171.30 | 0.4397 | 671.0 | 516.1 | |
| 21.33 | -2.00 | 11.55 | -2.00 | -23.00 | 108.76 | -4.19 | 170.41 | 0.4051 | 1078.8 | 999999 | |
| 1.37 | -2.00 | 0.74 | -2.00 | -23.32 | 108.71 | -4.23 | 170.45 | 0.4102 | 706.8 | 999999 | |
| 0.77 | -2.00 | 0.41 | -2.00 | -21.94 | 108.57 | -4.38 | 169.46 | 0.3889 | 638.1 | 999999 | |
| 2.99 | -2.00 | 1.63 | -2.00 | -23.65 | 108.32 | -4.63 | 169.73 | 0.4164 | 568.5 | 999999 | |
| 1.71 | -2.00 | 0.92 | -2.00 | -22.94 | 107.99 | -4.96 | 168.65 | 0.4063 | 722.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.15 | 107.92 | -5.02 | 167.48 | 0.3784 | -854.0 | -711.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.77 | 107.65 | -5.30 | 166.58 | 0.3733 | -819.0 | -681.2 | |
| 1.79 | 10.24 | 0.96 | 5.49 | -21.43 | 107.37 | -5.57 | 166.35 | 0.3849 | -810.2 | -460.5 | |
| 1.62 | -2.00 | 0.88 | -2.00 | -23.16 | 107.24 | -5.71 | 167.13 | 0.4123 | 766.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.98 | 107.19 | -5.76 | 166.29 | 0.3941 | 889.0 | 759.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.79 | 107.12 | -5.83 | 164.54 | 0.3601 | -996.0 | -709.7 | |
| 4.95 | -2.00 | 2.69 | -2.00 | -23.29 | 106.94 | -6.01 | 166.57 | 0.4154 | 679.8 | 999999 | |
| 1.62 | 6.83 | 0.87 | 3.67 | -21.88 | 106.91 | -6.04 | 165.58 | 0.3937 | 716.8 | -6.4 | |
| 0.00 | 3.58 | 0.00 | 1.90 | -19.32 | 106.98 | -5.97 | 163.80 | 0.3534 | -902.0 | -748.4 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -21.69 | 106.75 | -6.19 | 165.10 | 0.3913 | -46.0 | -4.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -22.97 | 106.66 | -6.28 | 165.77 | 0.4115 | 651.0 | 486.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -17.91 | 106.84 | -6.11 | 162.16 | 0.3320 | -849.0 | -641.2 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -23.94 | 106.55 | -6.39 | 166.15 | 0.4268 | 859.0 | 598.8 | |
| 1.28 | 2.39 | 0.69 | 1.29 | -22.43 | 106.37 | -6.58 | 164.75 | 0.4043 | 943.0 | 765.8 | |
| 4.86 | 152.74 | 2.61 | 82.04 | -21.02 | 106.27 | -6.67 | 163.48 | 0.3831 | -1170.2 | -379.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -22.62 | 106.20 | -6.75 | 164.51 | 0.4080 | 630.0 | 428.3 | |
| 7.85 | -38.00 | 4.20 | -38.00 | -20.70 | 106.13 | -6.82 | 162.88 | 0.3789 | 826.9 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -19.44 | 106.15 | -6.79 | 161.83 | 0.3593 | -920.0 | -713.2 | |
| 1.62 | -38.00 | 0.87 | -38.00 | -20.89 | 105.99 | -6.95 | 162.72 | 0.3825 | -227.7 | 999999 | |
| 4.35 | -38.00 | 2.34 | -38.00 | -21.24 | 105.59 | -7.35 | 162.10 | 0.3898 | -992.0 | 999999 | |
| 1.02 | -38.00 | 0.55 | -38.00 | -21.24 | 105.27 | -7.67 | 161.38 | 0.3914 | -1025.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -23.85 | 105.12 | -7.82 | 163.16 | 0.4314 | -841.0 | -698.6 | |
| 3.33 | 6.40 | 1.83 | 3.51 | -23.98 | 104.89 | -8.06 | 162.78 | 0.4344 | -922.9 | -783.0 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -23.36 | 104.93 | -8.02 | 162.39 | 0.4250 | -814.0 | -481.6 | |
| 12.37 | -38.00 | 6.66 | -38.00 | -21.15 | 104.93 | -8.02 | 160.52 | 0.3918 | -1225.9 | 999999 | |
| 0.00 | 8.79 | 0.00 | 4.70 | -20.14 | 104.88 | -8.06 | 159.45 | 0.3768 | -991.0 | -883.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.23 | 104.47 | -8.48 | 158.59 | 0.3806 | -958.0 | -767.8 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -21.37 | 104.37 | -8.58 | 159.50 | 0.3982 | -895.0 | -797.7 | |
| 0.00 | 4.27 | 0.00 | 2.28 | -19.73 | 104.43 | -8.52 | 157.97 | 0.3733 | -1020.0 | -799.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.92 | 104.23 | -8.72 | 157.71 | 0.3774 | -971.0 | -895.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -20.17 | 104.18 | -8.76 | 157.88 | 0.3814 | -781.0 | -621.2 | |
| 0.00 | 3.84 | 0.00 | 2.12 | -24.01 | 103.87 | -9.07 | 160.80 | 0.4399 | -414.0 | -650.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -21.37 | 104.01 | -8.93 | 158.73 | 0.4002 | -1034.0 | -842.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -22.81 | 103.66 | -9.28 | 159.35 | 0.4235 | -971.0 | -785.2 | |
| 0.00 | 2.22 | 0.00 | 1.22 | -23.82 | 103.59 | -9.35 | 160.09 | 0.4385 | -874.0 | -710.5 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -23.10 | 103.64 | -9.30 | 159.57 | 0.4278 | -642.0 | -531.2 | |
| 0.60 | 2.30 | 0.32 | 1.25 | -21.50 | 103.62 | -9.32 | 158.02 | 0.4045 | -1192.1 | -898.5 | |
| 2.90 | 7.68 | 1.59 | 4.21 | -23.14 | 103.38 | -9.57 | 159.08 | 0.4298 | -1052.5 | -610.7 | |
| 4.69 | 23.81 | 2.55 | 12.94 | -22.14 | 103.35 | -9.59 | 158.09 | 0.4154 | -861.1 | -717.3 | |
| 0.77 | 257.26 | 0.41 | 138.82 | -20.64 | 103.45 | -9.49 | 156.77 | 0.3929 | -795.1 | -494.9 | |
| 1.79 | 2.73 | 0.97 | 1.48 | -21.57 | 103.36 | -9.59 | 157.53 | 0.4070 | -992.4 | -913.3 | |
| 7.76 | -63.00 | 4.18 | -63.00 | -20.68 | 103.23 | -9.72 | 156.31 | 0.3949 | -1032.1 | 999999 | |
| 2.13 | 6.48 | 1.17 | 3.56 | -23.33 | 102.97 | -9.97 | 158.46 | 0.4349 | -746.8 | -831.7 | |
| 0.60 | -66.00 | 0.33 | -66.00 | -23.14 | 102.92 | -10.02 | 158.18 | 0.4324 | -1030.3 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -21.63 | 102.97 | -9.98 | 156.79 | 0.4103 | -832.0 | -777.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -22.14 | 102.80 | -10.14 | 156.97 | 0.4188 | -686.0 | -583.0 | |
| 26.88 | -63.00 | 14.51 | -63.00 | -20.74 | 102.68 | -10.27 | 155.22 | 0.3994 | -1266.6 | 999999 | |
| 13.65 | -63.00 | 7.34 | -63.00 | -20.14 | 102.72 | -10.23 | 154.61 | 0.3905 | -1324.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -23.40 | 102.48 | -10.47 | 157.57 | 0.4388 | -738.0 | -574.7 | |
| 1.45 | -63.00 | 0.79 | -63.00 | -21.31 | 102.51 | -10.44 | 155.50 | 0.4088 | -878.6 | 999999 | |
| 4.44 | 19.20 | 2.42 | 10.48 | -21.98 | 102.36 | -10.58 | 155.92 | 0.4193 | -863.7 | -458.0 | |
| 3.07 | -63.00 | 1.67 | -63.00 | -21.50 | 102.36 | -10.58 | 155.42 | 0.4124 | -769.5 | 999999 | |
| 0.68 | -63.00 | 0.37 | -63.00 | -21.73 | 102.31 | -10.63 | 155.56 | 0.4160 | -685.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.88 | 102.16 | -10.78 | 151.84 | 0.3767 | -759.0 | -594.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -23.30 | 100.78 | -12.17 | 154.31 | 0.4484 | -620.0 | -545.5 | |
| 0.00 | 3.58 | 0.00 | 1.94 | -20.27 | 100.39 | -12.55 | 150.02 | 0.4097 | -768.0 | -496.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.14 | 99.95 | -12.99 | 149.00 | 0.4116 | -850.0 | -648.4 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -20.46 | 99.86 | -13.08 | 149.25 | 0.4165 | -729.0 | -556.6 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -20.02 | 99.71 | -13.24 | 148.36 | 0.4120 | -849.0 | -662.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -20.25 | 97.05 | -15.89 | 143.94 | 0.4383 | -755.0 | -538.3 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -20.56 | 96.85 | -16.09 | 144.06 | 0.4441 | -668.0 | -498.1 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -20.31 | 96.78 | -16.16 | 143.58 | 0.4416 | -900.0 | -707.7 | |
| 0.00 | 2.82 | 0.00 | 1.56 | -20.50 | 96.60 | -16.35 | 143.55 | 0.4457 | -802.0 | -649.0 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.71 | 92.77 | -20.18 | 142.30 | 0.5185 | -563.0 | -416.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
