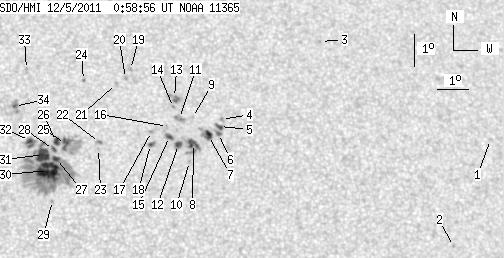

SDO HMI 2011-12-05 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.94 | 271.15 | 40.49 | 144.58 | 19.50 | 123.55 | 10.61 | 332.32 | 0.3728 | 270.1 | 232.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.78 | 19.81 | 136.86 | 23.91 | 311.07 | 0.5080 | 638.0 | 539.0 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 16.49 | 135.14 | 22.20 | 307.42 | 0.4580 | 768.0 | 664.9 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 22.92 | 131.54 | 18.59 | 322.51 | 0.4846 | 752.0 | 655.4 | |
| 0.00 | 2.05 | 0.00 | 1.12 | 20.45 | 127.95 | 15.01 | 324.70 | 0.4216 | -693.0 | -488.2 | |
| 2.56 | 7.08 | 1.39 | 3.85 | 20.23 | 127.86 | 14.92 | 324.53 | 0.4181 | -823.7 | -703.8 | |
| 0.77 | -5.00 | 0.42 | -5.00 | 20.01 | 127.81 | 14.87 | 324.29 | 0.4148 | -912.6 | 999999 | |
| 4.18 | 9.56 | 2.27 | 5.19 | 19.95 | 127.48 | 14.53 | 324.80 | 0.4110 | -974.6 | -810.7 | |
| 6.57 | 15.53 | 3.55 | 8.39 | 19.70 | 126.97 | 14.03 | 325.36 | 0.4031 | -988.0 | -767.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 20.52 | 127.01 | 14.07 | 326.48 | 0.4140 | -711.0 | -531.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 19.14 | 126.79 | 13.85 | 324.84 | 0.3943 | -917.0 | -669.8 | |
| 0.00 | 5.20 | 0.00 | 2.82 | 20.49 | 126.59 | 13.64 | 327.22 | 0.4099 | -812.0 | -739.5 | |
| 3.58 | 4.61 | 1.93 | 2.49 | 19.67 | 126.48 | 13.54 | 326.24 | 0.3983 | -971.5 | -658.4 | |
| 0.00 | 6.14 | 0.00 | 3.35 | 21.15 | 126.49 | 13.54 | 328.33 | 0.4177 | -881.0 | -771.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 20.83 | 126.42 | 13.48 | 328.01 | 0.4130 | -831.0 | -724.9 | |
| 2.39 | 3.41 | 1.29 | 1.84 | 19.92 | 126.21 | 13.27 | 327.12 | 0.3992 | -946.5 | -855.5 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 20.24 | 126.18 | 13.23 | 327.65 | 0.4030 | -756.0 | -566.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 20.08 | 125.65 | 12.70 | 328.46 | 0.3965 | -819.0 | -652.8 | |
| 1.28 | 2.47 | 0.69 | 1.33 | 19.67 | 125.58 | 12.64 | 328.00 | 0.3905 | -711.1 | -934.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 22.04 | 125.13 | 12.19 | 332.02 | 0.4189 | -710.0 | -518.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 21.75 | 124.95 | 12.00 | 332.04 | 0.4136 | -704.0 | -603.9 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.59 | 124.64 | 11.69 | 332.44 | 0.4092 | -738.0 | -589.9 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 19.74 | 123.95 | 11.01 | 331.48 | 0.3781 | 852.0 | 739.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.55 | 123.91 | 10.96 | 331.33 | 0.3751 | 717.0 | 468.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 21.69 | 123.58 | 10.63 | 334.70 | 0.4029 | 807.0 | 690.1 | |
| 6.06 | 32.94 | 3.23 | 17.54 | 19.71 | 122.86 | 9.92 | 333.84 | 0.3695 | 905.8 | 319.3 | |
| 3.75 | -25.00 | 2.00 | -25.00 | 19.77 | 122.58 | 9.64 | 334.57 | 0.3684 | 841.0 | 999999 | |
| 2.65 | 149.15 | 1.40 | 78.88 | 19.24 | 122.55 | 9.60 | 333.96 | 0.3605 | 791.0 | 531.6 | |
| 1.62 | -25.00 | 0.86 | -25.00 | 19.52 | 122.47 | 9.53 | 334.51 | 0.3640 | 880.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.93 | 122.35 | 9.40 | 332.67 | 0.3401 | 923.0 | 709.0 | |
| 23.81 | -27.00 | 12.59 | -27.00 | 18.86 | 122.27 | 9.33 | 334.13 | 0.3531 | 1245.8 | 999999 | |
| 12.71 | -27.00 | 6.74 | -27.00 | 19.36 | 122.14 | 9.20 | 335.07 | 0.3595 | 948.5 | 999999 | |
| 2.56 | 8.28 | 1.36 | 4.39 | 19.80 | 121.72 | 8.78 | 336.59 | 0.3631 | 821.2 | 743.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 22.04 | 121.76 | 8.82 | 338.91 | 0.3965 | 820.0 | 735.9 | |
| 1.45 | 5.80 | 0.77 | 3.10 | 20.87 | 121.31 | 8.36 | 338.74 | 0.3764 | 925.2 | 713.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
