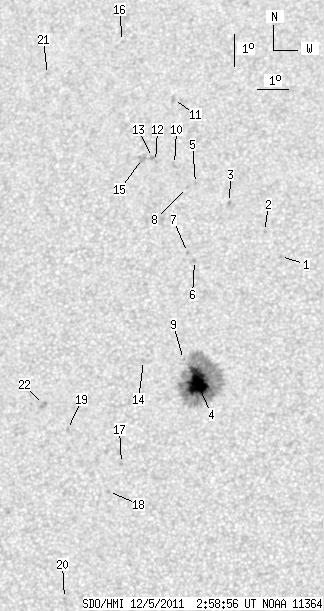

SDO HMI 2011-12-05 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.41 | 191.98 | 16.57 | 101.97 | 19.79 | 103.65 | -8.20 | 22.14 | 0.3596 | -733.4 | -402.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.74 | 23.02 | 106.46 | -5.38 | 12.66 | 0.3957 | -692.0 | -478.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 23.82 | 105.91 | -5.94 | 13.39 | 0.4102 | -796.0 | -604.5 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 24.76 | 104.72 | -7.13 | 15.28 | 0.4292 | -756.0 | -654.1 | |
| 31.41 | 158.05 | 16.57 | 83.40 | 19.04 | 104.00 | -7.85 | 22.01 | 0.3460 | -1282.1 | -449.0 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 25.37 | 103.56 | -8.28 | 17.14 | 0.4436 | -775.0 | -708.8 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 22.89 | 103.69 | -8.15 | 18.87 | 0.4058 | -916.0 | -684.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 23.14 | 103.45 | -8.40 | 19.16 | 0.4109 | -818.0 | -660.4 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 25.24 | 103.31 | -8.54 | 17.73 | 0.4428 | -719.0 | -568.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 19.76 | 103.52 | -8.33 | 22.37 | 0.3598 | -485.0 | -338.8 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 26.00 | 102.82 | -9.03 | 18.08 | 0.4562 | -661.0 | -595.8 | |
| 0.00 | 2.73 | 0.00 | 1.55 | 28.15 | 102.61 | -9.24 | 16.91 | 0.4885 | -739.0 | -613.6 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 26.09 | 102.18 | -9.67 | 19.19 | 0.4608 | -871.0 | -632.4 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 26.22 | 102.07 | -9.78 | 19.28 | 0.4633 | -883.0 | -748.3 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 19.72 | 102.25 | -9.60 | 25.39 | 0.3677 | 800.0 | 587.3 | |
| 0.00 | 4.86 | 0.00 | 2.72 | 26.19 | 101.74 | -10.11 | 19.91 | 0.4646 | -863.0 | -705.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 30.10 | 100.66 | -11.19 | 18.72 | 0.5252 | -613.0 | -496.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 16.53 | 101.74 | -10.11 | 31.22 | 0.3261 | 783.0 | 641.0 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 15.67 | 101.38 | -10.47 | 33.62 | 0.3175 | 919.0 | 691.6 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 17.57 | 99.97 | -11.87 | 33.60 | 0.3560 | 780.0 | 592.7 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 12.41 | 100.17 | -11.68 | 43.54 | 0.2883 | 792.0 | 617.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 28.98 | 98.19 | -13.66 | 23.35 | 0.5231 | -425.0 | -437.5 | |
| 0.00 | 3.50 | 0.00 | 1.87 | 18.35 | 99.16 | -12.69 | 34.09 | 0.3736 | 630.0 | 719.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
