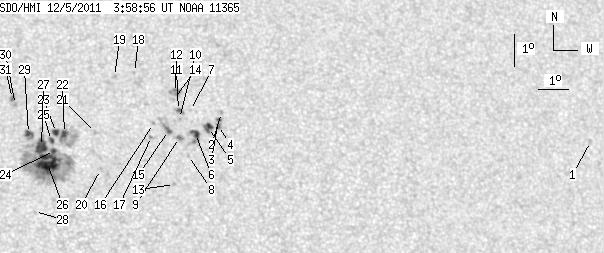

SDO HMI 2011-12-05 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.79 | 266.09 | 33.13 | 142.68 | 19.48 | 123.44 | 12.14 | 329.05 | 0.3848 | 201.2 | 228.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 1.08 | 19.52 | 140.50 | 29.20 | 305.53 | 0.5672 | 657.0 | 499.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 20.46 | 128.01 | 16.71 | 321.86 | 0.4381 | -717.0 | -582.3 | |
| 0.77 | 3.41 | 0.42 | 1.87 | 20.24 | 127.89 | 16.59 | 321.73 | 0.4343 | -928.4 | -727.1 | |
| 0.94 | -3.00 | 0.51 | -3.00 | 20.05 | 127.87 | 16.57 | 321.47 | 0.4319 | -852.9 | 999999 | |
| 5.46 | 7.17 | 2.99 | 3.92 | 19.99 | 127.53 | 16.23 | 321.93 | 0.4279 | -974.8 | -781.0 | |
| 4.35 | 12.97 | 2.37 | 7.07 | 19.80 | 127.09 | 15.79 | 322.39 | 0.4213 | -1020.2 | -797.1 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 20.52 | 127.00 | 15.70 | 323.63 | 0.4292 | -627.0 | -539.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 19.11 | 126.79 | 15.49 | 321.82 | 0.4101 | -716.0 | -537.4 | |
| 0.00 | 3.41 | 0.00 | 1.86 | 19.67 | 126.56 | 15.25 | 323.12 | 0.4146 | -1188.0 | -963.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 20.27 | 126.61 | 15.31 | 323.92 | 0.4225 | -868.0 | -740.8 | |
| 1.45 | 3.41 | 0.79 | 1.87 | 20.52 | 126.61 | 15.31 | 324.31 | 0.4256 | -878.6 | -776.5 | |
| 0.00 | 7.17 | 0.00 | 3.93 | 21.09 | 126.57 | 15.27 | 325.20 | 0.4323 | -1038.0 | -758.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.21 | 126.26 | 14.96 | 321.30 | 0.3938 | -760.0 | -628.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 20.87 | 126.48 | 15.18 | 325.03 | 0.4287 | -827.0 | -573.2 | |
| 2.47 | 10.07 | 1.35 | 5.48 | 19.89 | 126.22 | 14.92 | 324.05 | 0.4142 | -982.4 | -668.2 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 20.12 | 125.75 | 14.45 | 325.22 | 0.4126 | -763.0 | -623.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 19.71 | 125.65 | 14.35 | 324.80 | 0.4065 | -844.0 | -715.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 21.73 | 125.29 | 13.99 | 328.31 | 0.4293 | -780.0 | -590.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 21.60 | 124.62 | 13.32 | 329.36 | 0.4222 | -848.0 | -641.9 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 18.68 | 123.92 | 12.62 | 326.58 | 0.3775 | 598.0 | 596.6 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 19.84 | 123.85 | 12.55 | 328.44 | 0.3923 | 847.0 | 569.2 | |
| 3.50 | 31.83 | 1.88 | 17.06 | 19.80 | 122.85 | 11.55 | 330.44 | 0.3837 | 891.5 | 320.4 | |
| 3.16 | -22.00 | 1.69 | -22.00 | 19.84 | 122.60 | 11.30 | 331.02 | 0.3821 | 810.0 | 999999 | |
| 1.71 | 157.55 | 0.91 | 83.80 | 19.27 | 122.50 | 11.20 | 330.47 | 0.3735 | 821.6 | 518.5 | |
| 1.71 | -24.00 | 0.91 | -24.00 | 19.59 | 122.42 | 11.12 | 331.06 | 0.3772 | 874.6 | 999999 | |
| 21.25 | -24.00 | 11.30 | -24.00 | 18.87 | 122.25 | 10.95 | 330.44 | 0.3658 | 1242.7 | 999999 | |
| 11.18 | -24.00 | 5.96 | -24.00 | 19.40 | 122.09 | 10.79 | 331.53 | 0.3720 | 954.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 17.38 | 121.74 | 10.44 | 329.36 | 0.3409 | -563.0 | -550.8 | |
| 3.84 | 7.08 | 2.05 | 3.78 | 19.81 | 121.70 | 10.40 | 332.92 | 0.3748 | 799.8 | 793.9 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 20.72 | 121.35 | 10.05 | 334.83 | 0.3854 | 1029.0 | 708.7 | |
| 0.00 | 2.65 | 0.00 | 1.42 | 20.91 | 121.26 | 9.96 | 335.23 | 0.3875 | 1045.0 | 816.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
