SDO HMI 2011-12-05 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.32 | 124.63 | 36.60 | 135.51 | 18.93 | 172.00 | 61.24 | 291.24 | 0.8895 | -75.0 | -5.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

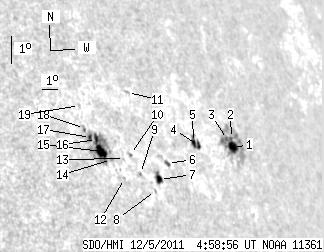

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.57 | 53.00 | 8.07 | 65.27 | 18.90 | 175.65 | 64.90 | 290.55 | 0.9167 | -502.4 | -91.4 | |
| 1.02 | -1.00 | 1.26 | -1.00 | 19.18 | 175.79 | 65.03 | 290.83 | 0.9178 | -250.9 | 999999 | |
| 1.62 | -1.00 | 1.98 | -1.00 | 19.15 | 175.47 | 64.71 | 290.85 | 0.9157 | -555.8 | 999999 | |
| 2.48 | 9.22 | 2.80 | 10.37 | 18.98 | 173.28 | 62.53 | 291.01 | 0.9006 | -337.1 | -463.8 | |
| 3.84 | -4.00 | 4.30 | -4.00 | 19.07 | 173.00 | 62.25 | 291.16 | 0.8987 | -643.6 | 999999 | |
| 2.48 | 2.82 | 2.58 | 2.94 | 18.43 | 170.90 | 60.15 | 290.81 | 0.8823 | -393.0 | -316.0 | |
| 3.84 | 6.49 | 3.90 | 6.60 | 17.93 | 170.12 | 59.37 | 290.40 | 0.8755 | -492.7 | -440.5 | |
| 0.00 | 0.94 | 0.00 | 0.94 | 17.59 | 169.69 | 58.94 | 290.10 | 0.8716 | -572.0 | -498.1 | |
| 0.00 | 1.11 | 0.00 | 1.10 | 18.12 | 169.08 | 58.32 | 290.82 | 0.8674 | -515.0 | -447.0 | |
| 0.00 | 1.54 | 0.00 | 1.51 | 18.72 | 168.80 | 58.05 | 291.55 | 0.8661 | 321.0 | 167.8 | |
| 0.00 | 2.05 | 0.00 | 2.10 | 20.66 | 169.77 | 59.01 | 293.54 | 0.8770 | 390.0 | 258.2 | |
| 0.00 | 0.94 | 0.00 | 0.90 | 17.97 | 168.06 | 57.30 | 290.86 | 0.8587 | 182.0 | 196.3 | |
| 0.00 | 0.51 | 0.00 | 0.50 | 18.59 | 168.38 | 57.63 | 291.50 | 0.8624 | 182.0 | 170.2 | |
| 0.00 | 1.54 | 0.00 | 1.46 | 18.57 | 167.61 | 56.86 | 291.63 | 0.8560 | -176.0 | -144.5 | |
| 7.60 | 41.48 | 7.15 | 39.03 | 18.82 | 167.17 | 56.42 | 292.02 | 0.8527 | 685.2 | 216.8 | |
| 2.65 | -15.00 | 2.49 | -15.00 | 19.19 | 167.08 | 56.33 | 292.47 | 0.8527 | 562.4 | 999999 | |
| 2.22 | -15.00 | 2.07 | -15.00 | 19.26 | 166.78 | 56.02 | 292.62 | 0.8502 | 720.1 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.91 | 19.54 | 166.59 | 55.83 | 292.99 | 0.8491 | 689.0 | 556.2 | |
| 0.00 | 0.94 | 0.00 | 0.88 | 20.26 | 166.69 | 55.94 | 293.79 | 0.8515 | 405.0 | 354.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
