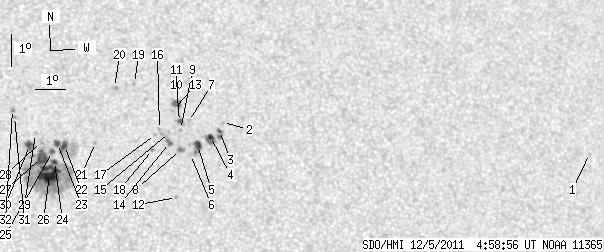

SDO HMI 2011-12-05 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.41 | 242.95 | 34.11 | 130.62 | 19.52 | 123.51 | 12.75 | 327.86 | 0.3907 | 227.3 | 215.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.72 | 19.51 | 140.50 | 29.74 | 305.07 | 0.5736 | 586.0 | 468.9 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 20.51 | 128.04 | 17.28 | 321.04 | 0.4444 | -611.0 | -508.9 | |
| 1.37 | 4.52 | 0.75 | 2.49 | 20.26 | 127.91 | 17.15 | 320.86 | 0.4402 | -795.9 | -751.0 | |
| 2.39 | 8.79 | 1.31 | 4.83 | 20.07 | 127.59 | 16.84 | 321.08 | 0.4349 | -995.0 | -785.8 | |
| 4.27 | 9.56 | 2.34 | 5.23 | 19.82 | 127.14 | 16.38 | 321.43 | 0.4275 | -1043.2 | -824.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.51 | 126.88 | 16.12 | 321.38 | 0.4211 | -888.0 | -713.7 | |
| 0.00 | 2.48 | 0.00 | 1.36 | 20.54 | 126.92 | 16.17 | 322.90 | 0.4340 | -603.0 | -474.3 | |
| 0.60 | 3.07 | 0.33 | 1.68 | 19.66 | 126.57 | 15.81 | 322.15 | 0.4200 | -1126.7 | -956.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 20.29 | 126.63 | 15.88 | 323.00 | 0.4282 | -857.0 | -754.5 | |
| 1.96 | 5.12 | 1.08 | 2.81 | 20.54 | 126.62 | 15.87 | 323.39 | 0.4312 | -897.2 | -685.1 | |
| 2.39 | 6.06 | 1.32 | 3.34 | 21.11 | 126.62 | 15.87 | 324.22 | 0.4381 | -939.0 | -687.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 18.17 | 126.29 | 15.54 | 320.20 | 0.3993 | -825.0 | -618.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 20.89 | 126.43 | 15.68 | 324.22 | 0.4337 | -776.0 | -679.0 | |
| 3.07 | 6.06 | 1.67 | 3.30 | 19.88 | 126.23 | 15.47 | 323.07 | 0.4194 | -978.4 | -719.1 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 20.20 | 126.26 | 15.51 | 323.49 | 0.4235 | -721.0 | -561.9 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 20.29 | 125.94 | 15.19 | 324.18 | 0.4217 | -736.0 | -530.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 20.14 | 125.80 | 15.04 | 324.21 | 0.4184 | -766.0 | -550.7 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 19.67 | 125.65 | 14.90 | 323.75 | 0.4112 | -1052.0 | -781.4 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 21.75 | 125.27 | 14.52 | 327.41 | 0.4342 | -834.0 | -608.9 | |
| 0.00 | 2.05 | 0.00 | 1.12 | 21.62 | 124.60 | 13.85 | 328.43 | 0.4269 | -751.0 | -680.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 19.89 | 123.83 | 13.08 | 327.49 | 0.3976 | 844.0 | 595.1 | |
| 3.07 | 26.80 | 1.65 | 14.38 | 19.79 | 122.82 | 12.07 | 329.37 | 0.3878 | 884.2 | 347.4 | |
| 2.73 | -22.00 | 1.47 | -22.00 | 19.86 | 122.60 | 11.85 | 329.91 | 0.3869 | 928.2 | 999999 | |
| 2.05 | 137.92 | 1.10 | 73.49 | 19.29 | 122.47 | 11.71 | 329.40 | 0.3781 | 790.6 | 544.0 | |
| 1.96 | 2.90 | 1.05 | 1.55 | 19.61 | 122.43 | 11.67 | 329.93 | 0.3820 | 898.0 | 732.2 | |
| 22.53 | -24.00 | 12.01 | -24.00 | 18.89 | 122.28 | 11.52 | 329.22 | 0.3709 | 1221.7 | 999999 | |
| 11.69 | -24.00 | 6.25 | -24.00 | 19.42 | 122.06 | 11.31 | 330.44 | 0.3765 | 951.4 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 19.92 | 122.10 | 11.34 | 331.05 | 0.3837 | 610.0 | 533.0 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.17 | 121.92 | 11.17 | 331.76 | 0.3859 | 418.0 | 444.7 | |
| 3.33 | 6.32 | 1.78 | 3.38 | 19.80 | 121.70 | 10.95 | 331.73 | 0.3789 | 923.1 | 781.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 20.71 | 121.29 | 10.53 | 333.78 | 0.3887 | 937.0 | 812.5 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 20.93 | 121.24 | 10.48 | 334.15 | 0.3915 | 880.0 | 801.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
