SDO HMI 2011-12-05 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.26 | 0.00 | 4.44 | 11.29 | 48.61 | -61.06 | 77.35 | 0.8815 | 370.0 | 373.1 | |
|
previous
or next observation for the same group /

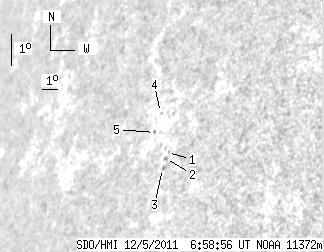

back to the solar disc SDO HMI 2011-12-05 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.35 | 11.20 | 48.99 | -60.68 | 77.41 | 0.8783 | 483.0 | 559.2 | |
| 0.00 | 1.62 | 0.00 | 1.67 | 11.01 | 48.93 | -60.74 | 77.63 | 0.8787 | 569.0 | 490.6 | |
| 0.00 | 0.94 | 0.00 | 0.97 | 10.71 | 48.84 | -60.82 | 77.98 | 0.8791 | 344.0 | 340.5 | |
| 0.00 | 0.51 | 0.00 | 0.54 | 12.40 | 48.08 | -61.58 | 76.16 | 0.8866 | 222.0 | 286.7 | |
| 0.00 | 0.85 | 0.00 | 0.91 | 11.79 | 47.94 | -61.72 | 76.86 | 0.8872 | 232.0 | 172.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
