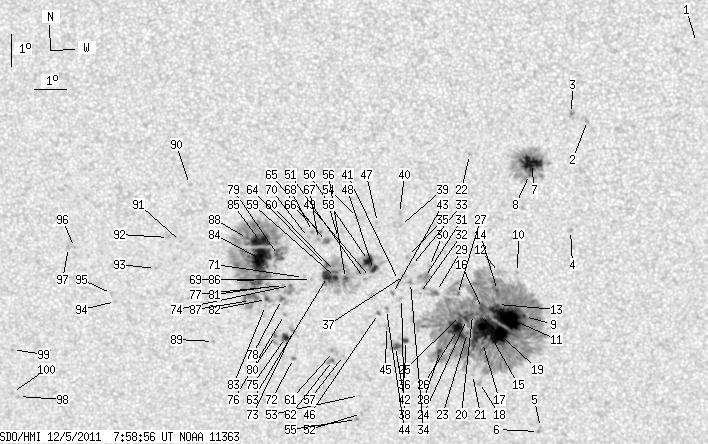

SDO HMI 2011-12-05 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 253.37 | 1396.33 | 135.81 | 748.87 | -21.85 | 107.62 | -1.50 | 176.31 | 0.3844 | 166.0 | 117.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.96 | 116.12 | 7.00 | 205.54 | 0.2756 | -672.0 | -479.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -16.35 | 112.83 | 3.71 | 192.18 | 0.2958 | 723.0 | 655.6 | |
| 0.00 | 2.05 | 0.00 | 1.06 | -16.13 | 112.33 | 3.21 | 190.73 | 0.2906 | 1050.0 | 836.5 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -19.78 | 112.37 | 3.25 | 188.80 | 0.3502 | 883.0 | 678.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -26.12 | 111.54 | 2.42 | 184.85 | 0.4497 | 735.0 | 551.8 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -26.26 | 111.47 | 2.36 | 184.70 | 0.4517 | 701.0 | 611.9 | |
| 18.09 | 84.57 | 9.43 | 44.09 | -17.68 | 111.12 | 2.00 | 186.12 | 0.3132 | 1272.2 | 487.9 | |
| 1.28 | -7.00 | 0.67 | -7.00 | -18.02 | 111.06 | 1.94 | 185.83 | 0.3187 | 753.0 | 999999 | |
| 1.37 | 766.62 | 0.73 | 413.07 | -22.51 | 110.96 | 1.84 | 184.36 | 0.3917 | 1143.2 | 438.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.11 | 110.72 | 1.60 | 184.07 | 0.3687 | -396.0 | -237.3 | |
| 36.44 | -9.00 | 19.60 | -9.00 | -22.54 | 110.38 | 1.26 | 182.99 | 0.3916 | 1592.5 | 999999 | |
| 0.00 | 6.40 | 0.00 | 3.41 | -21.10 | 110.15 | 1.03 | 182.62 | 0.3682 | 472.0 | 391.1 | |
| 0.77 | -9.00 | 0.41 | -9.00 | -22.13 | 110.09 | 0.97 | 182.35 | 0.3847 | 1426.9 | 999999 | |
| 1.28 | -9.00 | 0.68 | -9.00 | -21.68 | 110.09 | 0.97 | 182.40 | 0.3775 | 1086.1 | 999999 | |
| 58.46 | -9.00 | 31.54 | -9.00 | -22.99 | 109.81 | 0.69 | 181.60 | 0.3985 | 1290.7 | 999999 | |
| 4.95 | -9.00 | 2.66 | -9.00 | -22.25 | 109.61 | 0.49 | 181.19 | 0.3865 | 1000.6 | 999999 | |
| 0.77 | -9.00 | 0.42 | -9.00 | -23.35 | 109.62 | 0.50 | 181.14 | 0.4041 | 802.3 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.26 | -24.64 | 109.52 | 0.41 | 180.87 | 0.4248 | -362.0 | -76.9 | |
| 1.02 | -9.00 | 0.55 | -9.00 | -22.45 | 109.45 | 0.34 | 180.80 | 0.3896 | 1164.4 | 999999 | |
| 0.85 | -9.00 | 0.46 | -9.00 | -22.45 | 109.29 | 0.18 | 180.42 | 0.3896 | 1158.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -24.38 | 109.30 | 0.18 | 180.39 | 0.4206 | 420.0 | 372.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.40 | 109.20 | 0.08 | 180.24 | 0.3067 | 967.0 | 835.5 | |
| 1.02 | -9.00 | 0.55 | -9.00 | -23.02 | 109.13 | 0.02 | 180.04 | 0.3989 | 864.2 | 999999 | |
| 1.96 | -9.00 | 1.06 | -9.00 | -22.61 | 109.10 | -0.02 | 179.96 | 0.3922 | 1135.9 | 999999 | |
| 1.45 | -9.00 | 0.78 | -9.00 | -22.48 | 108.91 | -0.21 | 179.50 | 0.3901 | 968.6 | 999999 | |
| 17.67 | -9.00 | 9.53 | -9.00 | -22.93 | 108.81 | -0.31 | 179.29 | 0.3974 | 1134.6 | 999999 | |
| 0.68 | -9.00 | 0.37 | -9.00 | -21.81 | 108.82 | -0.30 | 179.26 | 0.3792 | 762.0 | 999999 | |
| 1.19 | -9.00 | 0.65 | -9.00 | -23.61 | 108.26 | -0.85 | 178.07 | 0.4084 | 530.7 | 999999 | |
| 0.51 | 10.07 | 0.27 | 5.38 | -21.71 | 108.15 | -0.97 | 177.60 | 0.3780 | 708.5 | 348.1 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -20.91 | 107.93 | -1.19 | 176.95 | 0.3652 | -878.0 | -607.0 | |
| 0.00 | 10.75 | 0.00 | 5.73 | -21.26 | 107.77 | -1.35 | 176.60 | 0.3711 | -489.0 | -505.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.77 | 107.61 | -1.51 | 176.28 | 0.3795 | -176.0 | -233.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -20.88 | 107.36 | -1.76 | 175.49 | 0.3653 | -888.0 | -751.5 | |
| 0.00 | 2.56 | 0.00 | 1.37 | -21.42 | 107.33 | -1.79 | 175.51 | 0.3741 | -852.0 | -725.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.60 | 107.24 | -1.88 | 175.10 | 0.3608 | -786.0 | -621.3 | |
| 1.96 | 4.44 | 1.06 | 2.40 | -23.28 | 107.14 | -1.98 | 175.48 | 0.4043 | 814.0 | 474.7 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -21.20 | 107.14 | -1.98 | 174.99 | 0.3708 | -762.0 | -710.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.93 | 107.03 | -2.09 | 174.92 | 0.3828 | 778.0 | 521.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -19.62 | 107.03 | -2.09 | 174.27 | 0.3452 | -897.0 | -708.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -19.24 | 107.01 | -2.11 | 174.08 | 0.3391 | -878.0 | -721.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.36 | 106.95 | -2.17 | 174.55 | 0.3736 | -771.0 | -650.4 | |
| 4.78 | 9.56 | 2.59 | 5.18 | -23.48 | 106.81 | -2.30 | 174.79 | 0.4078 | 703.1 | 112.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -21.77 | 106.75 | -2.37 | 174.18 | 0.3806 | 847.0 | 632.3 | |
| 0.00 | 2.30 | 0.00 | 1.24 | -22.29 | 106.55 | -2.57 | 173.85 | 0.3892 | 800.0 | 677.7 | |
| 0.00 | 2.65 | 0.00 | 1.43 | -22.83 | 106.54 | -2.58 | 173.99 | 0.3980 | 722.0 | 550.5 | |
| 0.34 | 1.79 | 0.18 | 0.96 | -22.41 | 106.29 | -2.83 | 173.28 | 0.3917 | 844.8 | 716.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.53 | 106.31 | -2.81 | 172.28 | 0.3451 | -896.0 | -687.0 | |
| 2.56 | 117.60 | 1.36 | 62.73 | -21.01 | 106.16 | -2.96 | 172.47 | 0.3694 | -1102.9 | -344.3 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -21.26 | 106.06 | -3.06 | 172.32 | 0.3738 | -772.0 | -593.0 | |
| 5.89 | -48.00 | 3.13 | -48.00 | -20.72 | 106.01 | -3.11 | 171.97 | 0.3652 | 956.9 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -21.30 | 105.87 | -3.25 | 171.86 | 0.3747 | -915.0 | -822.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -25.66 | 105.66 | -3.46 | 172.93 | 0.4442 | 744.0 | 608.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -25.07 | 105.61 | -3.51 | 172.65 | 0.4351 | 461.0 | 453.3 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -19.37 | 105.69 | -3.43 | 170.51 | 0.3440 | -739.0 | -697.5 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -25.86 | 105.49 | -3.63 | 172.65 | 0.4476 | 755.0 | 600.4 | |
| 2.22 | -48.00 | 1.19 | -48.00 | -21.30 | 105.26 | -3.86 | 170.37 | 0.3762 | -1021.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.77 | 105.13 | -3.99 | 171.15 | 0.4157 | -902.0 | -672.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -20.03 | 105.07 | -4.04 | 169.24 | 0.3565 | -743.0 | -668.0 | |
| 1.88 | -48.00 | 1.00 | -48.00 | -21.27 | 104.95 | -4.17 | 169.58 | 0.3766 | -1091.3 | 999999 | |
| 1.62 | -48.00 | 0.87 | -48.00 | -21.07 | 104.95 | -4.17 | 169.50 | 0.3736 | -1128.0 | 999999 | |
| 0.00 | 4.52 | 0.00 | 2.46 | -23.64 | 104.81 | -4.31 | 170.40 | 0.4145 | -923.0 | -761.3 | |
| 0.60 | 3.84 | 0.33 | 2.09 | -23.93 | 104.77 | -4.35 | 170.44 | 0.4192 | -1011.7 | -858.7 | |
| 8.11 | -48.00 | 4.33 | -48.00 | -21.23 | 104.69 | -4.43 | 168.95 | 0.3769 | -1161.9 | 999999 | |
| 1.79 | -48.00 | 0.96 | -48.00 | -20.88 | 104.67 | -4.45 | 168.70 | 0.3714 | -1076.1 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.86 | -20.12 | 104.69 | -4.42 | 168.31 | 0.3592 | -989.0 | -868.5 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -19.84 | 104.51 | -4.61 | 167.67 | 0.3553 | -1135.0 | -891.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -20.06 | 104.44 | -4.68 | 167.63 | 0.3591 | -986.0 | -809.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.81 | 104.26 | -4.86 | 167.00 | 0.3557 | -971.0 | -859.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.33 | 104.18 | -4.94 | 167.77 | 0.3801 | -904.0 | -695.5 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -20.00 | 104.13 | -4.99 | 166.79 | 0.3592 | -852.0 | -779.3 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -21.27 | 103.93 | -5.19 | 167.12 | 0.3800 | -697.0 | -679.0 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -23.87 | 103.50 | -5.61 | 167.71 | 0.4220 | -898.0 | -787.8 | |
| 0.00 | 4.61 | 0.00 | 2.50 | -22.96 | 103.54 | -5.58 | 167.27 | 0.4079 | -949.0 | -716.7 | |
| 0.43 | 9.64 | 0.23 | 5.18 | -21.52 | 103.50 | -5.61 | 166.29 | 0.3855 | -1099.2 | -779.7 | |
| 4.44 | 11.35 | 2.41 | 6.17 | -23.19 | 103.28 | -5.84 | 166.82 | 0.4123 | -1009.9 | -583.9 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.45 | 103.28 | -5.84 | 166.36 | 0.4009 | -878.0 | -725.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.52 | 103.28 | -5.84 | 165.76 | 0.3864 | -1112.0 | -965.1 | |
| 1.54 | 5.29 | 0.83 | 2.85 | -21.97 | 103.20 | -5.92 | 165.88 | 0.3937 | -873.5 | -687.0 | |
| 5.12 | 235.63 | 2.73 | 125.75 | -20.57 | 103.16 | -5.96 | 164.79 | 0.3720 | -978.6 | -489.0 | |
| 1.28 | -75.00 | 0.70 | -75.00 | -23.12 | 102.96 | -6.16 | 166.09 | 0.4125 | -892.1 | 999999 | |
| 0.00 | 6.40 | 0.00 | 3.44 | -21.55 | 102.90 | -6.22 | 164.89 | 0.3885 | -935.0 | -824.8 | |
| 1.45 | 6.40 | 0.78 | 3.45 | -21.97 | 102.72 | -6.40 | 164.79 | 0.3957 | -849.8 | -707.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -22.16 | 102.68 | -6.44 | 164.83 | 0.3988 | -565.0 | -533.3 | |
| 34.90 | -79.00 | 18.65 | -79.00 | -20.70 | 102.58 | -6.53 | 163.50 | 0.3766 | -1169.5 | 999999 | |
| 13.57 | -79.00 | 7.22 | -79.00 | -20.13 | 102.61 | -6.51 | 163.09 | 0.3677 | -1329.5 | 999999 | |
| 8.19 | -79.00 | 4.40 | -79.00 | -21.36 | 102.49 | -6.63 | 163.81 | 0.3873 | -908.4 | 999999 | |
| 0.00 | 16.81 | 0.00 | 9.07 | -22.00 | 102.20 | -6.91 | 163.66 | 0.3984 | -410.0 | -433.4 | |
| 0.94 | -79.00 | 0.50 | -79.00 | -20.03 | 102.20 | -6.92 | 162.02 | 0.3682 | -824.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -23.32 | 100.94 | -8.18 | 161.98 | 0.4244 | -653.0 | -490.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.34 | 100.45 | -8.67 | 155.97 | 0.3528 | -803.0 | -620.0 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -20.13 | 100.07 | -9.05 | 157.13 | 0.3818 | -870.0 | -726.4 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -20.00 | 99.69 | -9.43 | 156.15 | 0.3823 | -848.0 | -709.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.98 | 99.21 | -9.90 | 156.20 | 0.3997 | -625.0 | -503.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -22.04 | 97.84 | -11.28 | 154.57 | 0.4239 | -735.0 | -626.2 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -21.78 | 97.73 | -11.38 | 154.08 | 0.4211 | -788.0 | -541.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.32 | 96.66 | -12.46 | 150.20 | 0.4089 | -994.0 | -676.7 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -20.32 | 96.46 | -12.66 | 149.82 | 0.4105 | -758.0 | -640.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -25.12 | 94.32 | -14.80 | 151.74 | 0.4905 | -677.0 | -536.8 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -23.59 | 94.30 | -14.82 | 150.00 | 0.4707 | -736.0 | -682.2 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -24.99 | 94.13 | -14.99 | 151.30 | 0.4901 | -478.0 | -456.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
