SDO HMI 2011-12-05 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.59 | 456.61 | 51.75 | 247.36 | 7.55 | 130.88 | 22.31 | 289.32 | 0.3993 | 89.8 | 5.2 | |
|
previous
or next observation for the same group /

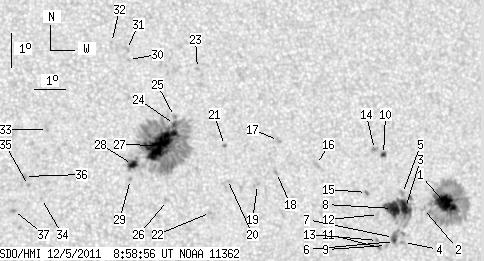

back to the solar disc SDO HMI 2011-12-05 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.80 | 129.03 | 11.12 | 72.52 | 6.68 | 136.01 | 27.44 | 283.59 | 0.4728 | -1223.4 | -330.0 | |
| 0.00 | 2.47 | 0.00 | 1.38 | 6.54 | 135.27 | 26.69 | 283.61 | 0.4611 | -789.0 | -765.4 | |
| 8.79 | 50.09 | 4.88 | 27.74 | 6.57 | 134.67 | 26.10 | 283.95 | 0.4522 | -955.6 | -665.8 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 5.53 | 134.55 | 25.98 | 281.73 | 0.4472 | 205.0 | 130.3 | |
| 0.00 | 3.24 | 0.00 | 1.80 | 6.98 | 134.60 | 26.02 | 284.89 | 0.4525 | -804.0 | -658.2 | |
| 1.37 | 10.07 | 0.75 | 5.56 | 5.56 | 134.25 | 25.68 | 281.92 | 0.4427 | 412.7 | -286.0 | |
| 2.82 | -6.00 | 1.55 | -6.00 | 5.68 | 134.23 | 25.65 | 282.20 | 0.4426 | -391.7 | 999999 | |
| 12.63 | -3.00 | 6.98 | -3.00 | 6.54 | 134.24 | 25.67 | 284.10 | 0.4455 | -1196.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 5.44 | 133.99 | 25.41 | 281.77 | 0.4382 | -758.0 | -592.8 | |
| 1.88 | 2.90 | 1.04 | 1.61 | 8.15 | 134.04 | 25.47 | 287.71 | 0.4487 | 629.8 | 496.6 | |
| 0.00 | 2.22 | 0.00 | 1.22 | 5.38 | 133.75 | 25.18 | 281.73 | 0.4345 | -937.0 | -775.1 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 6.36 | 133.77 | 25.19 | 283.93 | 0.4378 | -954.0 | -702.9 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 5.59 | 133.70 | 25.12 | 282.23 | 0.4342 | -1056.0 | -860.9 | |
| 0.00 | 2.65 | 0.00 | 1.46 | 8.30 | 133.75 | 25.18 | 288.21 | 0.4451 | -903.0 | -708.8 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 7.02 | 133.41 | 24.84 | 285.59 | 0.4346 | -1023.0 | -853.2 | |
| 0.00 | 2.90 | 0.00 | 1.58 | 7.85 | 131.83 | 23.25 | 288.48 | 0.4141 | -754.0 | -520.0 | |
| 0.00 | 2.13 | 0.00 | 1.15 | 8.57 | 130.64 | 22.07 | 291.07 | 0.3998 | -666.0 | -698.1 | |
| 0.00 | 1.96 | 0.00 | 1.06 | 7.62 | 130.52 | 21.95 | 288.87 | 0.3932 | 860.0 | 615.4 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 7.26 | 129.89 | 21.32 | 288.46 | 0.3819 | -713.0 | -678.9 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 7.41 | 128.94 | 20.37 | 289.61 | 0.3680 | -446.0 | -524.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.43 | 128.90 | 20.33 | 292.24 | 0.3729 | 834.0 | 642.3 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 6.43 | 128.36 | 19.79 | 287.49 | 0.3543 | -881.0 | -674.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 10.73 | 128.18 | 19.61 | 298.66 | 0.3774 | 850.0 | 606.6 | |
| 1.62 | 198.23 | 0.86 | 104.54 | 9.06 | 127.35 | 18.77 | 295.46 | 0.3536 | 805.9 | 359.1 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 9.30 | 127.36 | 18.79 | 296.07 | 0.3554 | 608.0 | 465.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 6.79 | 127.02 | 18.45 | 289.64 | 0.3351 | 737.0 | 641.6 | |
| 42.41 | -24.00 | 22.34 | -24.00 | 8.43 | 126.84 | 18.27 | 294.38 | 0.3420 | 1290.2 | 999999 | |
| 4.27 | 16.98 | 2.23 | 8.89 | 7.87 | 125.97 | 17.40 | 293.81 | 0.3252 | 1257.1 | 746.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.42 | 125.89 | 17.32 | 292.62 | 0.3212 | 883.0 | 753.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 11.01 | 126.01 | 17.44 | 302.15 | 0.3489 | 920.0 | 777.3 | |
| 0.00 | 3.16 | 0.00 | 1.67 | 11.31 | 125.96 | 17.39 | 302.95 | 0.3508 | 537.0 | 526.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 11.52 | 125.50 | 16.93 | 304.16 | 0.3464 | 739.0 | 633.2 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 8.91 | 123.37 | 14.80 | 300.52 | 0.2943 | 850.0 | 700.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 6.86 | 123.11 | 14.54 | 294.42 | 0.2750 | 819.0 | 611.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 7.25 | 122.73 | 14.15 | 296.30 | 0.2718 | 959.0 | 774.5 | |
| 0.00 | 2.90 | 0.00 | 1.49 | 7.51 | 122.61 | 14.04 | 297.37 | 0.2720 | 920.0 | 650.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 6.50 | 122.24 | 13.67 | 294.50 | 0.2592 | 1066.0 | 876.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
