SDO HMI 2011-12-05 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 277.69 | 1426.54 | 148.78 | 764.89 | -21.86 | 107.48 | -1.09 | 177.29 | 0.3843 | 163.3 | 100.1 | |
|
previous
or next observation for the same group /

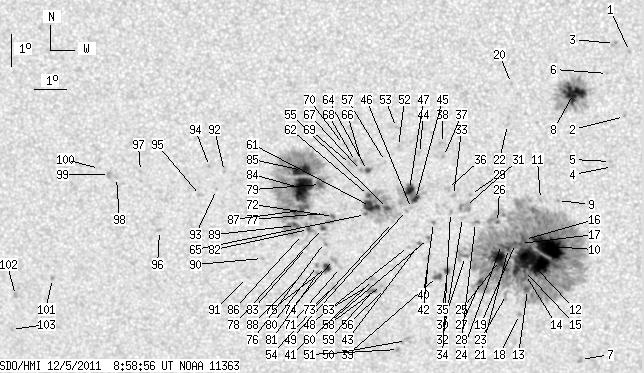

back to the solar disc SDO HMI 2011-12-05 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | -16.39 | 112.81 | 4.24 | 193.82 | 0.2983 | 889.0 | 670.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.41 | 112.70 | 4.13 | 191.99 | 0.3305 | 826.0 | 689.3 | |
| 0.00 | 2.82 | 0.00 | 1.46 | -16.14 | 112.34 | 3.77 | 192.53 | 0.2925 | 876.0 | 733.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.97 | 112.37 | 3.79 | 190.14 | 0.3547 | 713.0 | 522.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -19.82 | 112.30 | 3.73 | 190.04 | 0.3520 | 729.0 | 535.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.07 | 112.15 | 3.57 | 191.24 | 0.3069 | -725.0 | -480.5 | |
| 0.00 | 2.65 | 0.00 | 1.47 | -26.20 | 111.49 | 2.92 | 185.83 | 0.4515 | 692.0 | 610.3 | |
| 23.04 | 91.65 | 12.02 | 47.81 | -17.69 | 111.10 | 2.53 | 187.72 | 0.3142 | 1208.7 | 413.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.05 | 110.65 | 2.08 | 185.29 | 0.3684 | -129.0 | -106.1 | |
| 42.16 | 773.06 | 22.68 | 416.57 | -22.52 | 110.41 | 1.84 | 184.36 | 0.3917 | 1552.0 | 421.1 | |
| 0.00 | 1.79 | 0.00 | 0.95 | -21.02 | 110.11 | 1.54 | 183.93 | 0.3671 | 254.0 | 346.1 | |
| 59.91 | -10.00 | 32.33 | -10.00 | -23.00 | 109.81 | 1.24 | 182.87 | 0.3989 | 1285.5 | 999999 | |
| 2.82 | -10.00 | 1.53 | -10.00 | -23.90 | 109.72 | 1.15 | 182.55 | 0.4133 | 287.4 | 999999 | |
| 1.62 | -10.00 | 0.88 | -10.00 | -23.42 | 109.65 | 1.08 | 182.46 | 0.4055 | 629.6 | 999999 | |
| 0.60 | -10.00 | 0.32 | -10.00 | -23.29 | 109.62 | 1.05 | 182.40 | 0.4034 | 871.6 | 999999 | |
| 2.65 | -10.00 | 1.42 | -10.00 | -22.29 | 109.61 | 1.04 | 182.50 | 0.3874 | 1210.6 | 999999 | |
| 0.94 | -10.00 | 0.50 | -10.00 | -22.42 | 109.49 | 0.91 | 182.18 | 0.3893 | 1230.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -24.72 | 109.47 | 0.90 | 181.92 | 0.4261 | -335.0 | -253.9 | |
| 1.28 | -10.00 | 0.69 | -10.00 | -22.42 | 109.33 | 0.75 | 181.80 | 0.3893 | 1161.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.38 | 109.18 | 0.61 | 181.90 | 0.3064 | 947.0 | 716.2 | |
| 1.79 | -10.00 | 0.96 | -10.00 | -22.58 | 109.10 | 0.53 | 181.26 | 0.3917 | 1169.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -18.65 | 109.06 | 0.49 | 181.41 | 0.3275 | 718.0 | 561.1 | |
| 0.00 | 4.10 | 0.00 | 2.23 | -24.07 | 109.04 | 0.47 | 181.04 | 0.4155 | 608.0 | 478.8 | |
| 0.43 | -10.00 | 0.23 | -10.00 | -22.45 | 108.88 | 0.31 | 180.73 | 0.3896 | 892.0 | 999999 | |
| 22.53 | -10.00 | 12.15 | -10.00 | -22.97 | 108.82 | 0.24 | 180.56 | 0.3979 | 1080.9 | 999999 | |
| 1.37 | -10.00 | 0.73 | -10.00 | -21.75 | 108.75 | 0.18 | 180.44 | 0.3782 | 815.4 | 999999 | |
| 2.13 | -10.00 | 1.16 | -10.00 | -23.64 | 108.21 | -0.37 | 179.17 | 0.4088 | 513.4 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.69 | -21.75 | 108.05 | -0.52 | 178.71 | 0.3783 | 838.0 | 630.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -20.86 | 107.90 | -0.68 | 178.25 | 0.3639 | -812.0 | -695.5 | |
| 1.62 | -10.00 | 0.87 | -10.00 | -22.84 | 107.73 | -0.85 | 178.02 | 0.3960 | 559.8 | 999999 | |
| 0.00 | 10.33 | 0.00 | 5.50 | -21.24 | 107.74 | -0.84 | 177.88 | 0.3702 | -446.0 | -491.9 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -21.59 | 107.64 | -0.93 | 177.68 | 0.3759 | 263.0 | 214.0 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -20.89 | 107.36 | -1.21 | 176.87 | 0.3648 | -850.0 | -728.9 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -21.43 | 107.26 | -1.31 | 176.71 | 0.3736 | -895.0 | -755.3 | |
| 2.56 | 4.52 | 1.38 | 2.45 | -23.29 | 107.14 | -1.43 | 176.73 | 0.4037 | 826.5 | 419.2 | |
| 0.00 | 3.41 | 0.00 | 1.81 | -20.67 | 107.17 | -1.40 | 176.35 | 0.3613 | -773.0 | -616.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -19.66 | 107.05 | -1.52 | 175.83 | 0.3449 | -867.0 | -712.8 | |
| 0.00 | 2.65 | 0.00 | 1.39 | -19.25 | 107.03 | -1.55 | 175.66 | 0.3383 | -684.0 | -667.7 | |
| 4.10 | 5.72 | 2.22 | 3.10 | -23.48 | 106.82 | -1.75 | 176.03 | 0.4071 | 675.5 | 633.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -21.75 | 106.72 | -1.86 | 175.43 | 0.3794 | 803.0 | 651.3 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -22.26 | 106.55 | -2.02 | 175.14 | 0.3879 | 840.0 | 608.8 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -22.87 | 106.54 | -2.03 | 175.26 | 0.3977 | 732.0 | 618.6 | |
| 0.34 | 1.28 | 0.18 | 0.69 | -22.42 | 106.26 | -2.31 | 174.49 | 0.3909 | 914.8 | 702.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -19.56 | 106.30 | -2.27 | 173.75 | 0.3445 | -886.0 | -646.0 | |
| 3.58 | 32.17 | 1.91 | 17.11 | -21.02 | 106.15 | -2.42 | 173.83 | 0.3684 | -1093.2 | -100.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.30 | 106.02 | -2.55 | 173.59 | 0.3733 | -794.0 | -701.1 | |
| 6.66 | -45.00 | 3.54 | -45.00 | -20.70 | 105.97 | -2.60 | 173.26 | 0.3636 | 987.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -22.52 | 105.90 | -2.67 | 173.69 | 0.3930 | 21.0 | 48.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.37 | 105.86 | -2.71 | 173.22 | 0.3746 | -886.0 | -747.8 | |
| 0.00 | 5.55 | 0.00 | 3.06 | -25.57 | 105.77 | -2.80 | 174.25 | 0.4415 | 655.0 | 577.3 | |
| 0.00 | 2.30 | 0.00 | 1.27 | -25.87 | 105.50 | -3.07 | 173.78 | 0.4466 | 780.0 | 596.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -19.34 | 105.65 | -2.93 | 171.88 | 0.3423 | -829.0 | -681.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -18.75 | 105.60 | -2.98 | 171.46 | 0.3327 | -972.0 | -725.7 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -21.75 | 105.41 | -3.16 | 172.25 | 0.3817 | -351.0 | -214.4 | |
| 3.07 | 70.74 | 1.64 | 37.77 | -21.30 | 105.26 | -3.31 | 171.71 | 0.3749 | -966.4 | -469.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -23.87 | 105.13 | -3.44 | 172.39 | 0.4160 | -759.0 | -632.4 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.82 | 105.23 | -3.34 | 170.97 | 0.3510 | -633.0 | -451.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -23.77 | 105.01 | -3.57 | 172.08 | 0.4148 | -989.0 | -819.1 | |
| 1.62 | 3.16 | 0.88 | 1.72 | -23.94 | 104.74 | -3.83 | 171.56 | 0.4179 | -945.1 | -921.2 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -23.58 | 104.75 | -3.82 | 171.45 | 0.4123 | -920.0 | -788.4 | |
| 10.67 | -55.00 | 5.69 | -55.00 | -21.24 | 104.72 | -3.85 | 170.35 | 0.3752 | -1175.1 | 999999 | |
| 2.05 | -55.00 | 1.09 | -55.00 | -20.89 | 104.67 | -3.91 | 170.05 | 0.3698 | -1096.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -23.77 | 104.59 | -3.99 | 171.16 | 0.4157 | -833.0 | -663.9 | |
| 2.56 | 2.99 | 1.36 | 1.58 | -20.10 | 104.66 | -3.92 | 169.61 | 0.3571 | -935.5 | -899.4 | |
| 1.28 | -55.00 | 0.68 | -55.00 | -21.49 | 104.56 | -4.02 | 170.07 | 0.3797 | -720.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -19.82 | 104.48 | -4.10 | 168.97 | 0.3531 | -1010.0 | -894.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -20.10 | 104.47 | -4.11 | 169.12 | 0.3577 | -907.0 | -812.3 | |
| 0.00 | 2.30 | 0.00 | 1.22 | -19.82 | 104.29 | -4.29 | 168.48 | 0.3537 | -1041.0 | -824.0 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -19.91 | 104.13 | -4.45 | 168.12 | 0.3558 | -928.0 | -770.9 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -19.28 | 103.92 | -4.65 | 167.18 | 0.3464 | -820.0 | -666.5 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -23.19 | 103.70 | -4.87 | 168.95 | 0.4091 | -573.0 | -464.2 | |
| 1.79 | 11.61 | 0.96 | 6.23 | -21.56 | 103.54 | -5.04 | 167.66 | 0.3839 | -976.0 | -758.5 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -23.81 | 103.45 | -5.12 | 168.72 | 0.4194 | -865.0 | -604.0 | |
| 0.00 | 3.41 | 0.00 | 1.85 | -22.94 | 103.49 | -5.09 | 168.34 | 0.4057 | -859.0 | -693.4 | |
| 5.03 | 6.66 | 2.73 | 3.61 | -23.19 | 103.25 | -5.32 | 167.96 | 0.4105 | -998.1 | -670.8 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -22.39 | 103.22 | -5.36 | 167.42 | 0.3981 | -782.0 | -658.0 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -21.46 | 103.25 | -5.32 | 166.93 | 0.3835 | -1071.0 | -848.9 | |
| 2.13 | -72.00 | 1.15 | -72.00 | -21.94 | 103.17 | -5.40 | 167.04 | 0.3913 | -881.2 | 999999 | |
| 3.58 | 284.85 | 1.91 | 152.03 | -20.54 | 103.16 | -5.42 | 166.09 | 0.3693 | -963.6 | -480.0 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -23.13 | 102.96 | -5.61 | 167.29 | 0.4105 | -954.0 | -873.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.39 | 102.95 | -5.62 | 167.42 | 0.4146 | -774.0 | -698.5 | |
| 1.96 | 13.23 | 1.06 | 7.12 | -21.97 | 102.72 | -5.85 | 166.03 | 0.3934 | -791.7 | -590.6 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -22.55 | 102.63 | -5.94 | 166.21 | 0.4027 | -455.0 | -312.0 | |
| 32.43 | -79.00 | 17.30 | -79.00 | -20.67 | 102.58 | -5.99 | 164.78 | 0.3737 | -1197.3 | 999999 | |
| 13.31 | -79.00 | 7.08 | -79.00 | -20.10 | 102.60 | -5.97 | 164.40 | 0.3647 | -1355.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.13 | 102.52 | -6.05 | 165.69 | 0.3967 | -437.0 | -376.2 | |
| 11.43 | -79.00 | 6.13 | -79.00 | -21.37 | 102.49 | -6.08 | 165.08 | 0.3850 | -893.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -23.48 | 102.40 | -6.18 | 166.29 | 0.4181 | -721.0 | -553.8 | |
| 2.65 | -79.00 | 1.42 | -79.00 | -21.85 | 102.31 | -6.26 | 165.01 | 0.3931 | -788.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -22.91 | 101.20 | -7.38 | 163.33 | 0.4142 | -745.0 | -579.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.52 | 100.67 | -7.90 | 162.71 | 0.4259 | -584.0 | -388.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.14 | 100.13 | -8.44 | 158.51 | 0.3781 | -872.0 | -740.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.70 | 99.84 | -8.73 | 158.45 | 0.3882 | -866.0 | -685.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.98 | 99.66 | -8.91 | 157.28 | 0.3786 | -812.0 | -648.2 | |
| 0.00 | 2.47 | 0.00 | 1.33 | -20.90 | 99.32 | -9.25 | 157.50 | 0.3942 | -729.0 | -571.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -22.01 | 97.92 | -10.65 | 155.76 | 0.4193 | -752.0 | -615.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -20.14 | 97.45 | -11.13 | 152.65 | 0.3961 | -814.0 | -673.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.33 | 96.66 | -11.91 | 151.29 | 0.4046 | -944.0 | -618.8 | |
| 0.00 | 3.75 | 0.00 | 2.03 | -20.24 | 96.44 | -12.13 | 150.73 | 0.4050 | -900.0 | -717.2 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -20.05 | 96.14 | -12.44 | 149.88 | 0.4049 | -636.0 | -458.9 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -23.56 | 94.26 | -14.31 | 150.80 | 0.4664 | -938.0 | -797.1 | |
| 0.00 | 2.13 | 0.00 | 1.21 | -24.12 | 92.96 | -15.61 | 149.33 | 0.4836 | -742.0 | -647.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -25.23 | 92.68 | -15.89 | 150.16 | 0.4999 | -798.0 | -613.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
