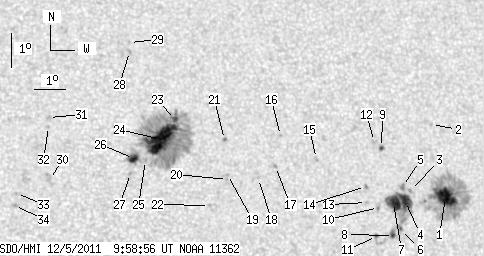

SDO HMI 2011-12-05 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.29 | 457.34 | 57.27 | 248.90 | 7.52 | 131.00 | 22.98 | 288.74 | 0.4090 | 69.4 | 0.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.05 | 137.04 | 11.32 | 77.40 | 6.67 | 136.04 | 28.01 | 283.34 | 0.4813 | -1202.5 | -336.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 8.85 | 135.72 | 27.69 | 287.89 | 0.4845 | 750.0 | 509.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 6.89 | 134.87 | 26.85 | 284.29 | 0.4646 | -840.0 | -629.8 | |
| 12.71 | 58.19 | 7.09 | 32.36 | 6.56 | 134.69 | 26.66 | 283.69 | 0.4607 | -950.4 | -481.6 | |
| 0.00 | 3.07 | 0.00 | 1.71 | 7.01 | 134.61 | 26.59 | 284.67 | 0.4611 | -747.0 | -662.0 | |
| 0.94 | -4.00 | 0.52 | -4.00 | 5.73 | 134.51 | 26.48 | 281.98 | 0.4555 | 405.8 | 999999 | |
| 15.44 | -4.00 | 8.58 | -4.00 | 6.53 | 134.29 | 26.26 | 283.81 | 0.4546 | -1152.5 | 999999 | |
| 1.45 | -4.00 | 0.80 | -4.00 | 5.55 | 134.24 | 26.21 | 281.70 | 0.4508 | 420.7 | 999999 | |
| 1.37 | 1.88 | 0.76 | 1.04 | 8.17 | 133.99 | 25.96 | 287.47 | 0.4562 | 601.9 | 498.3 | |
| 0.00 | 2.99 | 0.00 | 1.65 | 6.38 | 133.78 | 25.75 | 283.72 | 0.4464 | -1054.0 | -691.6 | |
| 1.45 | 6.66 | 0.80 | 3.67 | 5.52 | 133.67 | 25.64 | 281.86 | 0.4421 | -844.6 | -620.5 | |
| 0.00 | 2.39 | 0.00 | 1.33 | 8.35 | 133.77 | 25.75 | 287.98 | 0.4537 | -790.0 | -616.1 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 6.53 | 133.39 | 25.37 | 284.24 | 0.4410 | -224.0 | -180.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 7.01 | 133.39 | 25.36 | 285.30 | 0.4426 | -650.0 | -676.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 7.85 | 131.83 | 23.80 | 288.10 | 0.4225 | -699.0 | -584.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 8.53 | 130.70 | 22.68 | 290.50 | 0.4088 | -963.0 | -802.1 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 7.61 | 130.49 | 22.46 | 288.48 | 0.4010 | 743.0 | 550.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 7.25 | 129.92 | 21.89 | 288.03 | 0.3907 | -675.0 | -615.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 7.38 | 128.94 | 20.91 | 289.08 | 0.3761 | -849.0 | -688.6 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 7.23 | 128.93 | 20.90 | 288.71 | 0.3753 | -864.0 | -689.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 8.42 | 128.90 | 20.87 | 291.74 | 0.3810 | 756.0 | 714.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 6.46 | 128.32 | 20.29 | 287.17 | 0.3623 | -747.0 | -612.9 | |
| 2.13 | 201.37 | 1.13 | 106.56 | 9.02 | 127.37 | 19.34 | 294.75 | 0.3618 | 801.5 | 348.5 | |
| 43.35 | -23.00 | 22.91 | -23.00 | 8.42 | 126.86 | 18.84 | 293.74 | 0.3504 | 1286.9 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 7.80 | 126.36 | 18.33 | 292.59 | 0.3390 | 772.0 | 677.0 | |
| 6.40 | 11.60 | 3.36 | 6.09 | 7.86 | 125.99 | 17.96 | 293.16 | 0.3337 | 1226.6 | 691.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 7.41 | 125.87 | 17.85 | 292.03 | 0.3293 | 948.0 | 718.7 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 11.06 | 126.03 | 18.01 | 301.49 | 0.3574 | 886.0 | 705.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 11.33 | 126.05 | 18.02 | 302.12 | 0.3598 | 858.0 | 590.1 | |
| 0.00 | 5.97 | 0.00 | 3.09 | 7.24 | 123.35 | 15.32 | 294.57 | 0.2895 | 757.0 | 468.2 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 9.09 | 123.39 | 15.36 | 300.13 | 0.3038 | 832.0 | 698.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 8.82 | 123.38 | 15.35 | 299.36 | 0.3015 | 819.0 | 648.0 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 6.82 | 122.32 | 14.29 | 294.68 | 0.2710 | 927.0 | 725.8 | |
| 0.00 | 2.30 | 0.00 | 1.18 | 6.47 | 122.25 | 14.22 | 293.56 | 0.2675 | 1092.0 | 817.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
