SDO HMI 2011-12-05 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 247.95 | 1329.79 | 132.68 | 712.86 | -21.85 | 107.70 | 0.22 | 180.45 | 0.3835 | 142.6 | 135.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

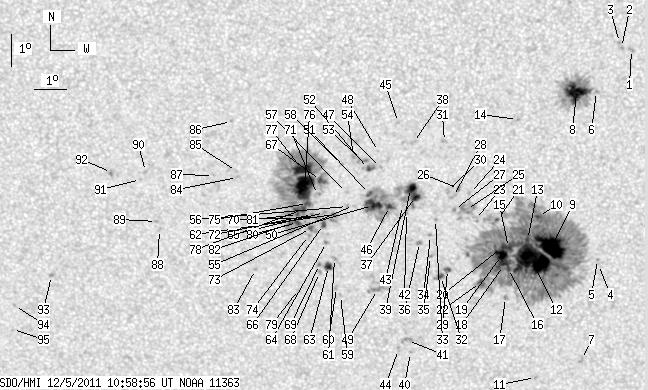

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.24 | -16.36 | 112.77 | 5.29 | 197.08 | 0.3024 | 881.0 | 708.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -16.30 | 112.46 | 4.98 | 196.19 | 0.2999 | 854.0 | 753.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -16.15 | 112.39 | 4.91 | 196.14 | 0.2972 | 1000.0 | 793.7 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -23.13 | 111.94 | 4.45 | 190.16 | 0.4068 | -280.0 | -214.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -22.97 | 111.90 | 4.42 | 190.15 | 0.4041 | 454.0 | 417.5 | |
| 0.00 | 1.88 | 0.00 | 0.98 | -17.66 | 111.72 | 4.24 | 192.81 | 0.3188 | 758.0 | 521.7 | |
| 0.00 | 2.39 | 0.00 | 1.33 | -26.23 | 111.49 | 4.01 | 187.97 | 0.4539 | 692.0 | 617.0 | |
| 24.15 | 91.97 | 12.60 | 48.00 | -17.69 | 111.10 | 3.61 | 190.97 | 0.3171 | 1204.5 | 416.8 | |
| 36.94 | 740.91 | 19.89 | 399.50 | -22.55 | 110.41 | 2.93 | 186.91 | 0.3939 | 1528.0 | 445.9 | |
| 1.54 | -9.00 | 0.82 | -9.00 | -21.59 | 109.98 | 2.50 | 186.18 | 0.3777 | 1127.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -26.83 | 109.98 | 2.50 | 184.87 | 0.4606 | 709.0 | 570.3 | |
| 62.80 | -9.00 | 33.90 | -9.00 | -22.97 | 109.78 | 2.30 | 185.32 | 0.3995 | 1286.6 | 999999 | |
| 1.19 | -9.00 | 0.64 | -9.00 | -22.33 | 109.64 | 2.16 | 185.16 | 0.3890 | 1211.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -18.53 | 109.27 | 1.79 | 185.23 | 0.3267 | 782.0 | 779.1 | |
| 1.45 | -9.00 | 0.78 | -9.00 | -22.58 | 109.03 | 1.55 | 183.67 | 0.3924 | 1191.2 | 999999 | |
| 1.02 | -9.00 | 0.55 | -9.00 | -23.26 | 109.04 | 1.56 | 183.57 | 0.4032 | 770.7 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -24.20 | 108.96 | 1.47 | 183.23 | 0.4181 | 631.0 | 505.3 | |
| 0.85 | -9.00 | 0.46 | -9.00 | -23.16 | 108.88 | 1.40 | 183.22 | 0.4015 | 917.5 | 999999 | |
| 8.36 | -9.00 | 4.51 | -9.00 | -22.84 | 108.81 | 1.33 | 183.11 | 0.3963 | 1277.5 | 999999 | |
| 1.37 | -9.00 | 0.73 | -9.00 | -22.58 | 108.81 | 1.33 | 183.14 | 0.3922 | 1252.5 | 999999 | |
| 1.11 | -9.00 | 0.59 | -9.00 | -21.69 | 108.67 | 1.19 | 182.95 | 0.3776 | 852.3 | 999999 | |
| 2.39 | -9.00 | 1.30 | -9.00 | -23.71 | 108.14 | 0.66 | 181.49 | 0.4098 | 545.1 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.23 | -21.69 | 107.98 | 0.49 | 181.22 | 0.3772 | 544.0 | 576.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.86 | 107.78 | 0.30 | 180.78 | 0.3637 | -742.0 | -573.1 | |
| 0.00 | 16.47 | 0.00 | 8.78 | -21.37 | 107.69 | 0.21 | 180.52 | 0.3719 | -362.0 | -280.5 | |
| 0.00 | 2.30 | 0.00 | 1.22 | -20.70 | 107.44 | -0.05 | 179.88 | 0.3610 | -894.0 | -735.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.37 | 107.31 | -0.17 | 179.56 | 0.3719 | -913.0 | -736.7 | |
| 0.00 | 2.64 | 0.00 | 1.41 | -20.96 | 107.28 | -0.20 | 179.47 | 0.3652 | -821.0 | -699.2 | |
| 2.05 | 3.92 | 1.11 | 2.12 | -23.29 | 107.08 | -0.40 | 179.08 | 0.4030 | 758.8 | 629.8 | |
| 0.00 | 2.56 | 0.00 | 1.36 | -20.77 | 107.09 | -0.39 | 178.98 | 0.3621 | -897.0 | -712.4 | |
| 0.00 | 2.30 | 0.00 | 1.21 | -19.22 | 107.00 | -0.48 | 178.64 | 0.3368 | -888.0 | -667.2 | |
| 2.13 | 5.72 | 1.16 | 3.10 | -23.52 | 106.85 | -0.63 | 178.58 | 0.4067 | 648.6 | 536.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.69 | 106.70 | -0.78 | 178.08 | 0.3773 | 575.0 | 480.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -22.20 | 106.54 | -0.94 | 177.73 | 0.3857 | 918.0 | 696.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.87 | 106.54 | -0.94 | 177.79 | 0.3965 | 759.0 | 600.1 | |
| 0.00 | 2.90 | 0.00 | 1.56 | -22.42 | 106.19 | -1.29 | 176.92 | 0.3896 | 935.0 | 662.9 | |
| 5.72 | 99.48 | 3.04 | 52.98 | -20.96 | 106.08 | -1.41 | 176.39 | 0.3659 | -775.4 | -345.4 | |
| 0.00 | 2.82 | 0.00 | 1.48 | -19.25 | 106.03 | -1.45 | 175.92 | 0.3381 | -798.0 | -597.1 | |
| 6.83 | -37.00 | 3.62 | -37.00 | -20.70 | 105.92 | -1.56 | 175.94 | 0.3619 | 980.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -26.00 | 105.86 | -1.63 | 176.71 | 0.4467 | 663.0 | 480.0 | |
| 0.00 | 5.29 | 0.00 | 2.92 | -25.60 | 105.76 | -1.72 | 176.46 | 0.4406 | 638.0 | 623.9 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -21.47 | 105.78 | -1.70 | 175.76 | 0.3745 | -744.0 | -662.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -21.24 | 105.66 | -1.82 | 175.40 | 0.3710 | -373.0 | -414.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -25.90 | 105.46 | -2.02 | 175.90 | 0.4455 | 598.0 | 529.5 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.63 | 105.57 | -1.92 | 174.44 | 0.3284 | -883.0 | -676.3 | |
| 2.82 | -37.00 | 1.50 | -37.00 | -21.27 | 105.25 | -2.23 | 174.37 | 0.3721 | -907.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.04 | 104.98 | -2.50 | 173.30 | 0.3526 | -843.0 | -692.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.54 | 104.93 | -2.55 | 172.97 | 0.3445 | -813.0 | -603.3 | |
| 0.00 | 8.36 | 0.00 | 4.55 | -23.94 | 104.82 | -2.67 | 174.10 | 0.4155 | -1043.0 | -792.0 | |
| 11.94 | -37.00 | 6.37 | -37.00 | -21.24 | 104.71 | -2.77 | 173.02 | 0.3726 | -1111.6 | 999999 | |
| 2.30 | -37.00 | 1.23 | -37.00 | -20.86 | 104.62 | -2.86 | 172.66 | 0.3666 | -1092.8 | 999999 | |
| 2.39 | 6.14 | 1.26 | 3.25 | -20.07 | 104.60 | -2.88 | 172.31 | 0.3539 | -959.4 | -821.0 | |
| 0.00 | 3.84 | 0.00 | 2.03 | -19.82 | 104.39 | -3.09 | 171.63 | 0.3503 | -838.0 | -900.9 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -19.69 | 104.14 | -3.34 | 170.91 | 0.3489 | -1125.0 | -912.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.24 | 104.11 | -3.38 | 171.52 | 0.3739 | -748.0 | -663.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.27 | 103.91 | -3.57 | 171.06 | 0.3749 | -873.0 | -726.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.83 | 103.89 | -3.59 | 170.81 | 0.3678 | -749.0 | -520.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -19.95 | 103.76 | -3.72 | 170.02 | 0.3540 | -806.0 | -641.7 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -24.13 | 103.61 | -3.87 | 171.55 | 0.4210 | -701.0 | -527.0 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -23.88 | 103.49 | -3.99 | 171.19 | 0.4172 | -764.0 | -654.9 | |
| 0.00 | 2.47 | 0.00 | 1.34 | -22.94 | 103.45 | -4.03 | 170.71 | 0.4026 | -836.0 | -611.4 | |
| 1.19 | 4.86 | 0.64 | 2.60 | -21.53 | 103.46 | -4.02 | 170.08 | 0.3802 | -964.9 | -786.8 | |
| 4.35 | 6.14 | 2.36 | 3.33 | -23.20 | 103.25 | -4.23 | 170.38 | 0.4071 | -1018.7 | -676.6 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -22.42 | 103.21 | -4.27 | 169.93 | 0.3951 | -863.0 | -725.9 | |
| 0.00 | 2.22 | 0.00 | 1.19 | -21.47 | 103.18 | -4.30 | 169.36 | 0.3800 | -1049.0 | -883.4 | |
| 2.47 | 3.41 | 1.33 | 1.83 | -21.85 | 103.14 | -4.35 | 169.46 | 0.3862 | -892.4 | -789.5 | |
| 2.82 | 216.80 | 1.50 | 115.33 | -20.45 | 103.08 | -4.40 | 168.56 | 0.3641 | -1050.4 | -526.5 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -23.39 | 102.96 | -4.53 | 169.81 | 0.4110 | -689.0 | -560.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -23.13 | 102.97 | -4.52 | 169.71 | 0.4069 | -930.0 | -831.1 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -21.63 | 102.95 | -4.53 | 168.90 | 0.3832 | -1015.0 | -878.2 | |
| 0.00 | 1.96 | 0.00 | 1.05 | -20.89 | 102.97 | -4.51 | 168.55 | 0.3715 | -641.0 | -639.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -21.53 | 102.79 | -4.69 | 168.48 | 0.3822 | -1025.0 | -882.5 | |
| 2.05 | 7.85 | 1.10 | 4.22 | -21.98 | 102.72 | -4.77 | 168.54 | 0.3895 | -807.7 | -654.3 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -22.20 | 102.64 | -4.84 | 168.50 | 0.3933 | -694.0 | -536.6 | |
| 2.39 | -67.00 | 1.28 | -67.00 | -21.18 | 102.65 | -4.84 | 167.92 | 0.3772 | -934.7 | 999999 | |
| 30.80 | -67.00 | 16.40 | -67.00 | -20.67 | 102.57 | -4.91 | 167.41 | 0.3694 | -1202.1 | 999999 | |
| 13.57 | -67.00 | 7.20 | -67.00 | -20.10 | 102.52 | -4.96 | 166.93 | 0.3605 | -1340.3 | 999999 | |
| 3.16 | -67.00 | 1.69 | -67.00 | -21.37 | 102.48 | -5.00 | 167.64 | 0.3807 | -920.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -23.94 | 102.26 | -5.23 | 168.57 | 0.4217 | -512.0 | -445.2 | |
| 2.90 | 15.95 | 1.56 | 8.58 | -21.79 | 102.31 | -5.17 | 167.48 | 0.3879 | -812.7 | -339.2 | |
| 1.28 | -67.00 | 0.69 | -67.00 | -21.53 | 102.32 | -5.17 | 167.34 | 0.3838 | -822.6 | 999999 | |
| 1.62 | -80.00 | 0.87 | -80.00 | -21.82 | 102.08 | -5.40 | 166.97 | 0.3892 | -658.1 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -23.29 | 100.89 | -6.59 | 165.28 | 0.4166 | -788.0 | -600.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -20.36 | 100.46 | -7.03 | 162.04 | 0.3735 | -724.0 | -603.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.17 | 100.43 | -7.05 | 161.82 | 0.3708 | -936.0 | -645.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.60 | 100.34 | -7.14 | 160.08 | 0.3471 | -865.0 | -613.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.30 | 99.70 | -7.78 | 160.19 | 0.3766 | -759.0 | -553.5 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -22.01 | 97.86 | -9.62 | 157.86 | 0.4127 | -601.0 | -494.8 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -21.76 | 97.78 | -9.70 | 157.44 | 0.4095 | -825.0 | -598.4 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -20.17 | 97.54 | -9.94 | 155.19 | 0.3880 | -737.0 | -578.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.43 | 97.36 | -10.12 | 155.10 | 0.3929 | -781.0 | -544.0 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -20.21 | 96.45 | -11.04 | 152.91 | 0.3962 | -837.0 | -769.8 | |
| 0.00 | 1.96 | 0.00 | 1.09 | -23.50 | 94.21 | -13.28 | 152.49 | 0.4578 | -950.0 | -644.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -24.47 | 92.87 | -14.62 | 151.32 | 0.4806 | -715.0 | -610.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.26 | 92.70 | -14.78 | 151.91 | 0.4920 | -736.0 | -536.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
