SDO HMI 2011-12-05 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.63 | 152.28 | 17.33 | 111.23 | 17.35 | 62.18 | -44.75 | 66.34 | 0.7360 | -833.6 | -267.4 | |
|
previous
or next observation for the same group /

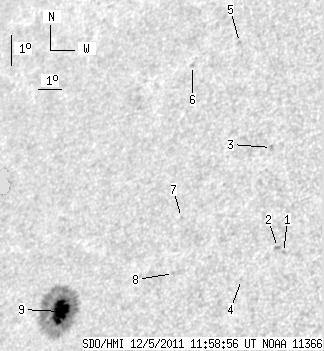

back to the solar disc SDO HMI 2011-12-05 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.83 | 18.90 | 70.41 | -36.52 | 60.46 | 0.6495 | -644.0 | -605.0 | |
| 0.00 | 2.22 | 0.00 | 1.45 | 19.05 | 70.14 | -36.79 | 60.39 | 0.6535 | -686.0 | -550.5 | |
| 0.00 | 2.05 | 0.00 | 1.38 | 22.20 | 68.99 | -37.94 | 56.75 | 0.6831 | -515.0 | -367.7 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 18.05 | 68.98 | -37.95 | 62.44 | 0.6619 | -481.0 | -405.5 | |
| 0.00 | 1.54 | 0.00 | 1.11 | 25.59 | 66.42 | -40.52 | 53.88 | 0.7277 | -675.0 | -516.7 | |
| 0.00 | 1.62 | 0.00 | 1.19 | 24.83 | 64.68 | -42.25 | 55.73 | 0.7407 | -651.0 | -475.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | 19.98 | 66.00 | -40.94 | 61.29 | 0.7045 | -413.0 | -264.8 | |
| 0.00 | 1.19 | 0.00 | 0.82 | 18.23 | 66.19 | -40.74 | 63.55 | 0.6947 | -601.0 | -517.9 | |
| 23.63 | 140.42 | 17.33 | 103.12 | 17.04 | 61.74 | -45.19 | 66.94 | 0.7396 | -949.2 | -248.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
