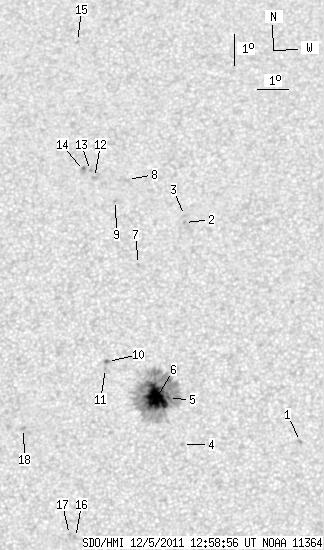

SDO HMI 2011-12-05 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.66 | 189.52 | 14.99 | 99.55 | 19.46 | 103.74 | -2.64 | 7.55 | 0.3316 | -740.1 | -383.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.62 | 17.61 | 108.39 | 2.00 | 353.60 | 0.2998 | -896.0 | -744.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 24.53 | 104.72 | -1.67 | 3.71 | 0.4122 | -848.0 | -744.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 24.76 | 104.71 | -1.67 | 3.67 | 0.4158 | -718.0 | -528.3 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 17.52 | 104.73 | -1.66 | 5.34 | 0.2977 | 776.0 | 537.6 | |
| 0.77 | 165.99 | 0.40 | 86.87 | 18.95 | 104.28 | -2.11 | 6.23 | 0.3221 | -992.3 | -416.9 | |
| 27.89 | -5.00 | 14.59 | -5.00 | 18.98 | 103.90 | -2.48 | 7.31 | 0.3234 | -1313.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 23.18 | 103.25 | -3.13 | 7.38 | 0.3928 | -747.0 | -511.0 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 25.94 | 102.82 | -3.56 | 7.38 | 0.4372 | -791.0 | -656.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 25.25 | 102.45 | -3.94 | 8.39 | 0.4273 | -817.0 | -624.4 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 20.10 | 102.34 | -4.04 | 11.09 | 0.3458 | 1013.0 | 804.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.88 | 102.29 | -4.10 | 11.37 | 0.3425 | 737.0 | 562.7 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 26.00 | 101.73 | -4.65 | 9.57 | 0.4407 | -864.0 | -723.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 26.23 | 101.59 | -4.80 | 9.75 | 0.4447 | -801.0 | -681.8 | |
| 0.00 | 3.41 | 0.00 | 1.89 | 26.23 | 101.36 | -5.03 | 10.21 | 0.4453 | -810.0 | -590.8 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 30.55 | 100.94 | -5.44 | 9.23 | 0.5116 | -645.0 | -534.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.66 | 101.48 | -4.90 | 18.50 | 0.2618 | 826.0 | 742.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 14.76 | 101.30 | -5.09 | 19.03 | 0.2643 | 708.0 | 604.4 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 18.01 | 99.77 | -6.61 | 19.85 | 0.3239 | 752.0 | 538.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
