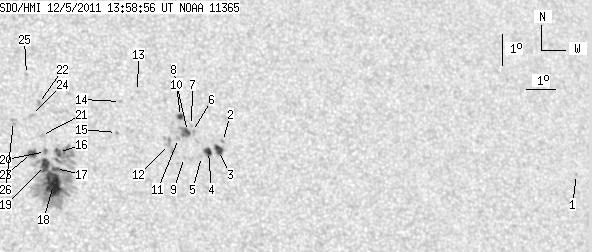

SDO HMI 2011-12-05 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.02 | 216.28 | 32.49 | 118.82 | 19.60 | 123.10 | 17.26 | 319.88 | 0.4346 | 320.8 | 286.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.54 | 19.21 | 140.39 | 34.55 | 301.19 | 0.6284 | 589.0 | 519.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 20.27 | 127.93 | 22.10 | 314.03 | 0.4928 | -755.0 | -624.9 | |
| 5.03 | 6.57 | 2.85 | 3.72 | 19.99 | 127.76 | 21.92 | 313.80 | 0.4881 | -842.7 | -663.7 | |
| 4.26 | 5.29 | 2.41 | 2.99 | 19.96 | 127.41 | 21.57 | 314.18 | 0.4840 | -977.1 | -758.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 19.80 | 127.15 | 21.32 | 314.26 | 0.4796 | -842.0 | -702.0 | |
| 0.00 | 1.79 | 0.00 | 1.01 | 20.59 | 126.96 | 21.12 | 315.74 | 0.4854 | -450.0 | -547.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 20.78 | 126.96 | 21.12 | 316.04 | 0.4873 | -476.0 | -412.8 | |
| 2.99 | 7.93 | 1.69 | 4.48 | 20.59 | 126.79 | 20.96 | 315.96 | 0.4836 | -938.2 | -842.0 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 19.77 | 126.58 | 20.74 | 314.96 | 0.4729 | -793.0 | -730.8 | |
| 2.47 | 3.24 | 1.40 | 1.84 | 21.06 | 126.63 | 20.79 | 316.90 | 0.4868 | -829.5 | -710.4 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 20.37 | 126.46 | 20.62 | 316.06 | 0.4778 | -878.0 | -668.4 | |
| 0.00 | 7.93 | 0.00 | 4.45 | 20.18 | 126.13 | 20.29 | 316.21 | 0.4723 | -866.0 | -761.7 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 21.86 | 125.29 | 19.45 | 319.89 | 0.4817 | -726.0 | -503.6 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 21.54 | 124.67 | 18.83 | 320.30 | 0.4720 | -717.0 | -546.2 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 20.56 | 124.41 | 18.57 | 319.22 | 0.4584 | -645.0 | -562.9 | |
| 2.99 | 28.06 | 1.64 | 15.39 | 19.94 | 122.42 | 16.58 | 321.34 | 0.4313 | 854.5 | 411.4 | |
| 2.56 | 126.40 | 1.40 | 68.80 | 19.44 | 122.27 | 16.43 | 320.81 | 0.4239 | 788.1 | 492.5 | |
| 25.67 | -17.00 | 13.98 | -17.00 | 18.94 | 122.15 | 16.31 | 320.20 | 0.4168 | 1153.6 | 999999 | |
| 8.36 | -17.00 | 4.56 | -17.00 | 19.53 | 121.95 | 16.11 | 321.49 | 0.4218 | 957.6 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.31 | 19.97 | 122.00 | 16.16 | 322.09 | 0.4275 | 792.0 | 702.5 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 20.47 | 121.92 | 16.08 | 322.98 | 0.4328 | 772.0 | 546.5 | |
| 0.00 | 2.30 | 0.00 | 1.27 | 21.48 | 121.93 | 16.09 | 324.42 | 0.4453 | 735.0 | 621.6 | |
| 4.69 | 7.16 | 2.56 | 3.91 | 19.91 | 121.53 | 15.69 | 322.78 | 0.4223 | 872.8 | 522.1 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 21.10 | 121.66 | 15.82 | 324.34 | 0.4381 | 737.0 | 628.0 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 22.40 | 121.64 | 15.80 | 326.16 | 0.4541 | 821.0 | 566.1 | |
| 0.00 | 2.73 | 0.00 | 1.50 | 20.91 | 121.05 | 15.21 | 325.10 | 0.4302 | 847.0 | 747.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
