SDO HMI 2011-12-05 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.89 | 210.74 | 33.72 | 116.67 | 19.71 | 123.22 | 18.48 | 318.18 | 0.4482 | 329.0 | 283.8 | |
|
previous
or next observation for the same group /

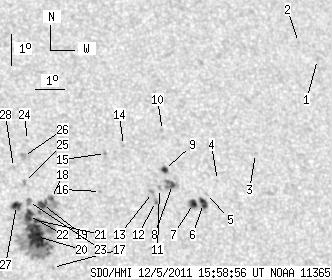

back to the solar disc SDO HMI 2011-12-05 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.05 | 24.56 | 132.75 | 28.01 | 313.87 | 0.5949 | 37.0 | 126.3 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 25.11 | 132.19 | 27.45 | 315.14 | 0.5940 | 553.0 | 516.8 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 21.55 | 129.88 | 25.14 | 312.51 | 0.5382 | -525.0 | -387.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 20.70 | 128.41 | 23.67 | 312.84 | 0.5142 | -554.0 | -384.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 20.29 | 127.96 | 23.22 | 312.72 | 0.5055 | -673.0 | -505.5 | |
| 5.37 | 14.41 | 3.07 | 8.23 | 19.98 | 127.81 | 23.07 | 312.41 | 0.5008 | -771.7 | -570.5 | |
| 4.01 | -6.00 | 2.28 | -6.00 | 19.98 | 127.47 | 22.73 | 312.81 | 0.4970 | -993.9 | 999999 | |
| 2.05 | 8.87 | 1.17 | 5.05 | 20.58 | 126.84 | 22.11 | 314.49 | 0.4959 | -964.0 | -809.6 | |
| 3.07 | 4.18 | 1.75 | 2.38 | 21.05 | 126.64 | 21.91 | 315.46 | 0.4985 | -781.3 | -615.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 22.29 | 126.77 | 22.04 | 317.13 | 0.5124 | -605.0 | -485.8 | |
| 0.00 | 1.79 | 0.00 | 1.02 | 20.45 | 126.38 | 21.65 | 314.87 | 0.4897 | -882.0 | -701.6 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 20.05 | 126.19 | 21.45 | 314.48 | 0.4835 | -968.0 | -884.5 | |
| 0.00 | 3.07 | 0.00 | 1.74 | 20.33 | 126.13 | 21.39 | 315.00 | 0.4857 | -895.0 | -746.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 21.81 | 125.36 | 20.63 | 318.24 | 0.4931 | -696.0 | -468.3 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 21.56 | 124.72 | 19.98 | 318.73 | 0.4838 | -768.0 | -560.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 20.36 | 124.38 | 19.64 | 317.38 | 0.4674 | -718.0 | -609.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 17.99 | 122.51 | 17.78 | 316.25 | 0.4217 | 577.0 | 493.8 | |
| 0.68 | 31.72 | 0.38 | 17.51 | 20.14 | 122.72 | 17.99 | 319.45 | 0.4479 | 660.6 | 306.9 | |
| 4.95 | -18.00 | 2.73 | -18.00 | 19.96 | 122.40 | 17.67 | 319.65 | 0.4425 | 861.7 | 999999 | |
| 27.29 | 116.74 | 14.94 | 63.91 | 18.96 | 122.09 | 17.36 | 318.53 | 0.4279 | 1145.6 | 544.1 | |
| 2.30 | -20.00 | 1.26 | -20.00 | 19.46 | 122.15 | 17.41 | 319.26 | 0.4342 | 840.5 | 999999 | |
| 6.57 | -20.00 | 3.61 | -20.00 | 19.61 | 121.90 | 17.17 | 319.89 | 0.4335 | 953.0 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.93 | 20.05 | 121.95 | 17.22 | 320.50 | 0.4390 | 707.0 | 655.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 21.98 | 122.15 | 17.42 | 323.04 | 0.4635 | 565.0 | 424.3 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 20.65 | 121.89 | 17.15 | 321.51 | 0.4454 | 698.0 | 551.2 | |
| 0.00 | 3.84 | 0.00 | 2.13 | 21.47 | 121.96 | 17.22 | 322.62 | 0.4557 | 801.0 | 596.1 | |
| 4.60 | 5.80 | 2.53 | 3.18 | 19.93 | 121.54 | 16.81 | 320.96 | 0.4335 | 903.3 | 549.2 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 21.12 | 121.58 | 16.85 | 322.70 | 0.4480 | 658.0 | 535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
