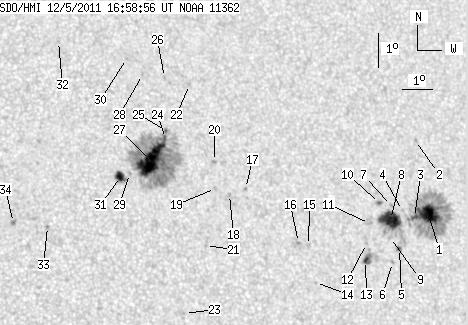

SDO HMI 2011-12-05 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.58 | 420.54 | 51.54 | 236.75 | 7.46 | 131.29 | 27.11 | 285.96 | 0.4705 | 10.8 | 20.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.82 | 138.48 | 10.47 | 81.41 | 6.71 | 136.17 | 31.99 | 281.99 | 0.5400 | -1134.5 | -324.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 8.92 | 135.90 | 31.72 | 286.09 | 0.5427 | 657.0 | 549.9 | |
| 1.71 | -1.00 | 1.00 | -1.00 | 6.62 | 135.67 | 31.49 | 281.98 | 0.5325 | -911.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.83 | 135.27 | 31.09 | 282.51 | 0.5272 | -571.0 | -461.2 | |
| 1.19 | 2.05 | 0.69 | 1.19 | 5.70 | 135.09 | 30.91 | 280.44 | 0.5218 | -797.9 | -746.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 5.29 | 134.83 | 30.64 | 279.72 | 0.5170 | 431.0 | 367.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 6.98 | 134.90 | 30.72 | 282.92 | 0.5223 | -658.0 | -544.0 | |
| 23.45 | 34.79 | 13.58 | 20.15 | 6.56 | 134.84 | 30.65 | 282.16 | 0.5202 | -1026.2 | -468.0 | |
| 0.00 | 1.96 | 0.00 | 1.13 | 6.03 | 134.80 | 30.62 | 281.15 | 0.5183 | -719.0 | -498.7 | |
| 1.45 | 1.96 | 0.84 | 1.13 | 7.04 | 134.49 | 30.30 | 283.19 | 0.5164 | -611.8 | -571.0 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 6.45 | 134.10 | 29.92 | 282.19 | 0.5091 | -984.0 | -763.3 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 5.85 | 133.96 | 29.78 | 281.08 | 0.5055 | -829.0 | -667.8 | |
| 1.96 | 12.11 | 1.12 | 6.95 | 5.35 | 133.90 | 29.72 | 280.11 | 0.5034 | 544.8 | 150.1 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 4.70 | 132.18 | 27.99 | 279.30 | 0.4760 | -790.0 | -635.4 | |
| 0.00 | 1.96 | 0.00 | 1.10 | 5.80 | 131.99 | 27.81 | 281.65 | 0.4759 | -686.0 | -622.6 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 5.89 | 131.66 | 27.48 | 281.96 | 0.4711 | -857.0 | -781.0 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 7.50 | 129.99 | 25.81 | 286.16 | 0.4513 | -815.0 | -694.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 7.32 | 129.45 | 25.27 | 286.07 | 0.4425 | -747.0 | -682.4 | |
| 0.00 | 2.05 | 0.00 | 1.13 | 7.50 | 129.00 | 24.82 | 286.72 | 0.4364 | -775.0 | -667.5 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 8.31 | 129.02 | 24.84 | 288.49 | 0.4401 | 786.0 | 688.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 5.81 | 128.59 | 24.40 | 283.10 | 0.4238 | -838.0 | -717.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 10.61 | 128.38 | 24.19 | 293.92 | 0.4425 | 563.0 | 476.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 3.80 | 127.83 | 23.64 | 278.62 | 0.4065 | -790.0 | -653.9 | |
| 1.88 | 191.18 | 1.02 | 103.82 | 9.00 | 127.47 | 23.28 | 291.12 | 0.4203 | 673.6 | 357.7 | |
| 0.34 | -24.00 | 0.19 | -24.00 | 9.23 | 127.48 | 23.30 | 291.65 | 0.4218 | 638.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 10.82 | 127.57 | 23.39 | 295.06 | 0.4322 | 793.0 | 611.1 | |
| 36.24 | -24.00 | 19.65 | -24.00 | 8.34 | 126.94 | 22.75 | 290.03 | 0.4090 | 1265.0 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 10.91 | 126.86 | 22.67 | 295.90 | 0.4226 | 706.0 | 636.9 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 7.95 | 126.23 | 22.05 | 289.65 | 0.3965 | 802.0 | 664.6 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 11.40 | 126.38 | 22.19 | 297.41 | 0.4189 | 691.0 | 552.2 | |
| 5.54 | 8.53 | 2.98 | 4.59 | 7.87 | 125.94 | 21.76 | 289.67 | 0.3916 | 1172.6 | 851.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 11.91 | 124.22 | 20.04 | 300.92 | 0.3925 | 885.0 | 693.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 6.38 | 123.55 | 19.36 | 287.75 | 0.3475 | 896.0 | 752.9 | |
| 0.00 | 2.30 | 0.00 | 1.21 | 6.50 | 122.49 | 18.30 | 289.01 | 0.3315 | 1060.0 | 875.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
