SDO HMI 2011-12-05 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.13 | 75.97 | 33.62 | 105.23 | 18.76 | 171.41 | 67.78 | 290.08 | 0.9324 | -104.0 | 84.9 | |
|
previous
or next observation for the same group /

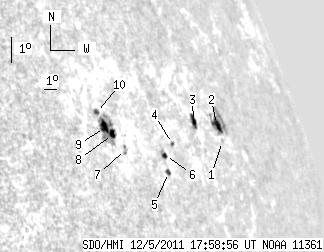

back to the solar disc SDO HMI 2011-12-05 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 2.03 | 18.41 | 175.90 | 72.27 | 289.16 | 0.9581 | -273.0 | -244.6 | |
| 6.22 | 22.94 | 10.60 | 39.63 | 18.94 | 175.84 | 72.21 | 289.72 | 0.9581 | -407.0 | 68.8 | |
| 4.52 | 6.48 | 6.90 | 9.91 | 19.04 | 173.69 | 70.06 | 290.05 | 0.9474 | -351.8 | -35.9 | |
| 0.43 | 1.36 | 0.58 | 1.86 | 18.37 | 171.26 | 67.62 | 289.62 | 0.9333 | -396.2 | -287.9 | |
| 2.13 | 2.90 | 2.78 | 3.77 | 17.47 | 170.24 | 66.61 | 288.79 | 0.9264 | -425.1 | -450.0 | |
| 2.13 | 4.52 | 2.79 | 5.91 | 18.00 | 170.40 | 66.76 | 289.34 | 0.9278 | -403.5 | -352.1 | |
| 0.00 | 3.16 | 0.00 | 3.72 | 18.20 | 167.53 | 63.89 | 289.95 | 0.9094 | 327.0 | 246.7 | |
| 3.16 | 31.29 | 3.65 | 35.97 | 18.67 | 166.93 | 63.29 | 290.56 | 0.9057 | 417.2 | 189.1 | |
| 4.52 | -8.00 | 5.16 | -8.00 | 18.89 | 166.52 | 62.89 | 290.87 | 0.9031 | 651.6 | 999999 | |
| 1.02 | 2.13 | 1.16 | 2.43 | 19.36 | 166.29 | 62.65 | 291.42 | 0.9021 | 549.2 | 436.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
