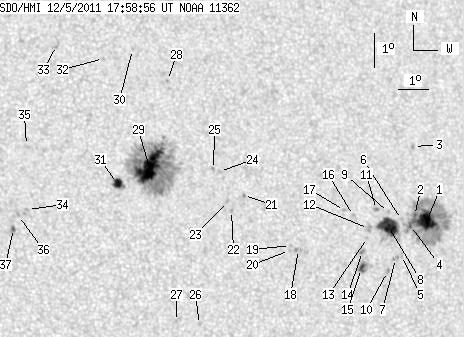

SDO HMI 2011-12-05 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.61 | 446.72 | 52.35 | 252.72 | 7.44 | 131.27 | 27.63 | 285.67 | 0.4784 | -27.2 | 1.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.70 | 142.15 | 11.65 | 84.10 | 6.70 | 136.22 | 32.58 | 281.79 | 0.5486 | -1099.8 | -304.4 | |
| 1.36 | -1.00 | 0.80 | -1.00 | 6.88 | 135.81 | 32.17 | 282.25 | 0.5431 | -816.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 8.94 | 135.95 | 32.32 | 285.89 | 0.5513 | 783.0 | 611.5 | |
| 1.45 | -1.00 | 0.85 | -1.00 | 6.59 | 135.64 | 32.01 | 281.76 | 0.5400 | -828.5 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.25 | 5.70 | 135.27 | 31.64 | 280.22 | 0.5325 | -132.0 | -122.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 6.77 | 135.34 | 31.71 | 282.18 | 0.5361 | -421.0 | -474.2 | |
| 0.00 | 2.73 | 0.00 | 1.59 | 5.61 | 135.05 | 31.42 | 280.12 | 0.5292 | -777.0 | -692.3 | |
| 22.26 | 39.57 | 12.97 | 23.05 | 6.56 | 134.87 | 31.24 | 281.95 | 0.5288 | -1029.7 | -530.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 6.98 | 134.90 | 31.27 | 282.72 | 0.5303 | -599.0 | -506.3 | |
| 0.00 | 2.13 | 0.00 | 1.24 | 5.22 | 134.75 | 31.12 | 279.47 | 0.5239 | 229.0 | 235.9 | |
| 0.00 | 1.88 | 0.00 | 1.09 | 7.07 | 134.49 | 30.86 | 283.03 | 0.5246 | -665.0 | -605.8 | |
| 0.00 | 4.18 | 0.00 | 2.42 | 6.50 | 134.17 | 30.54 | 282.08 | 0.5184 | -942.0 | -763.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 6.23 | 134.12 | 30.49 | 281.59 | 0.5170 | -969.0 | -728.4 | |
| 0.00 | 2.13 | 0.00 | 1.23 | 5.82 | 133.92 | 30.29 | 280.85 | 0.5130 | -930.0 | -790.1 | |
| 2.90 | 6.40 | 1.67 | 3.68 | 5.32 | 133.86 | 30.23 | 279.89 | 0.5109 | 675.5 | 556.1 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 6.89 | 133.68 | 30.05 | 283.00 | 0.5123 | -817.0 | -478.6 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 7.04 | 133.39 | 29.75 | 283.40 | 0.5084 | -403.0 | -461.4 | |
| 0.00 | 2.56 | 0.00 | 1.44 | 5.88 | 131.75 | 28.12 | 281.72 | 0.4807 | -629.0 | -693.4 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 6.00 | 131.49 | 27.85 | 282.06 | 0.4771 | -749.0 | -545.3 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 5.86 | 131.44 | 27.81 | 281.77 | 0.4761 | -672.0 | -578.0 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 7.49 | 130.00 | 26.37 | 285.85 | 0.4597 | -840.0 | -704.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 7.05 | 129.58 | 25.95 | 285.12 | 0.4517 | -928.0 | -668.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 7.32 | 129.46 | 25.83 | 285.76 | 0.4509 | -797.0 | -638.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 8.21 | 129.26 | 25.62 | 287.80 | 0.4514 | 610.0 | 475.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 8.27 | 129.06 | 25.43 | 288.04 | 0.4488 | 795.0 | 661.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 3.67 | 128.38 | 24.74 | 277.98 | 0.4236 | -744.0 | -598.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 3.76 | 127.63 | 24.00 | 278.42 | 0.4120 | -838.0 | -683.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 10.94 | 127.75 | 24.12 | 294.67 | 0.4434 | 693.0 | 536.7 | |
| 36.84 | 198.85 | 20.06 | 108.43 | 8.33 | 126.97 | 23.33 | 289.59 | 0.4178 | 1240.6 | 349.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 11.87 | 126.68 | 23.05 | 297.59 | 0.4342 | 461.0 | 350.9 | |
| 6.48 | 8.61 | 3.50 | 4.65 | 7.86 | 125.90 | 22.27 | 289.26 | 0.3994 | 1108.4 | 758.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 11.60 | 125.71 | 22.08 | 297.98 | 0.4188 | 838.0 | 620.6 | |
| 0.00 | 3.16 | 0.00 | 1.70 | 12.00 | 124.22 | 20.59 | 300.46 | 0.4008 | 741.0 | 636.5 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 7.09 | 122.99 | 19.36 | 289.70 | 0.3510 | 775.0 | 589.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 9.00 | 123.06 | 19.43 | 294.65 | 0.3630 | 717.0 | 546.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.91 | 122.70 | 19.07 | 289.47 | 0.3456 | 857.0 | 682.6 | |
| 1.62 | 2.30 | 0.85 | 1.21 | 6.53 | 122.53 | 18.90 | 288.55 | 0.3409 | 907.5 | 803.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
