SDO HMI 2011-12-05 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.88 | 169.34 | 16.57 | 117.91 | 17.76 | 61.94 | -41.69 | 64.62 | 0.7038 | -712.6 | -260.2 | |
|
previous
or next observation for the same group /

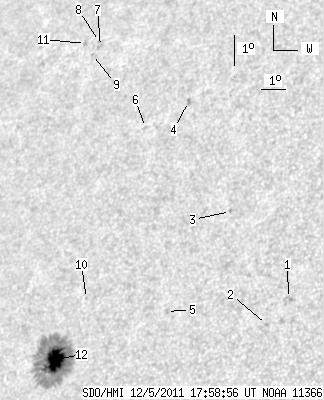

back to the solar disc SDO HMI 2011-12-05 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 1.12 | 19.02 | 70.45 | -33.18 | 58.18 | 0.6112 | -647.0 | -640.0 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 18.20 | 69.81 | -33.83 | 59.81 | 0.6141 | -708.0 | -575.0 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 21.75 | 67.52 | -36.12 | 56.24 | 0.6609 | -462.0 | -445.6 | |
| 0.00 | 2.47 | 0.00 | 1.74 | 25.28 | 64.62 | -39.02 | 53.40 | 0.7114 | -594.0 | -455.3 | |
| 0.00 | 1.88 | 0.00 | 1.24 | 18.60 | 65.86 | -37.77 | 61.56 | 0.6625 | -612.0 | -491.0 | |
| 0.00 | 1.11 | 0.00 | 0.79 | 24.43 | 63.12 | -40.51 | 55.31 | 0.7217 | -465.0 | -378.9 | |
| 0.00 | 2.47 | 0.00 | 1.89 | 27.08 | 59.96 | -43.67 | 53.72 | 0.7650 | 650.0 | 547.8 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 27.24 | 59.83 | -43.80 | 53.59 | 0.7669 | 510.0 | 443.8 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 26.81 | 59.72 | -43.91 | 54.15 | 0.7659 | 632.0 | 567.1 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 18.99 | 62.51 | -41.12 | 62.69 | 0.7022 | -433.0 | -369.2 | |
| 0.00 | 2.05 | 0.00 | 1.59 | 27.18 | 59.22 | -44.41 | 53.97 | 0.7722 | 400.0 | 340.1 | |
| 23.88 | 152.80 | 16.57 | 106.19 | 17.10 | 61.77 | -41.86 | 65.57 | 0.7029 | -1081.4 | -283.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
