SDO HMI 2011-12-05 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 242.15 | 1292.88 | 129.99 | 694.96 | -21.78 | 107.48 | 4.95 | 191.69 | 0.3898 | 151.7 | 142.2 | |
|
previous
or next observation for the same group /

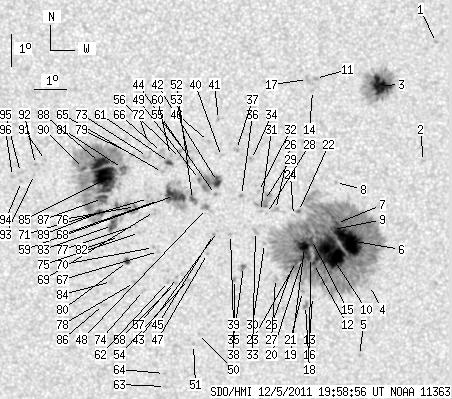

back to the solar disc SDO HMI 2011-12-05 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.33 | 112.69 | 10.16 | 210.55 | 0.3345 | 868.0 | 720.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -20.04 | 112.49 | 9.97 | 205.04 | 0.3859 | 809.0 | 506.4 | |
| 19.02 | 79.73 | 10.01 | 41.97 | -17.66 | 111.00 | 8.48 | 204.45 | 0.3409 | 1275.9 | 509.4 | |
| 0.00 | 2.56 | 0.00 | 1.41 | -24.00 | 111.01 | 8.48 | 198.11 | 0.4354 | -66.0 | -78.9 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -26.29 | 110.84 | 8.31 | 196.13 | 0.4685 | 702.0 | 549.5 | |
| 41.70 | 696.25 | 22.63 | 377.83 | -22.55 | 110.24 | 7.71 | 197.68 | 0.4099 | 1461.8 | 461.6 | |
| 1.02 | -6.00 | 0.55 | -6.00 | -22.00 | 109.82 | 7.30 | 197.22 | 0.3996 | 1479.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.70 | 109.73 | 7.20 | 198.09 | 0.3793 | -649.0 | -491.1 | |
| 0.94 | -6.00 | 0.51 | -6.00 | -22.19 | 109.71 | 7.18 | 196.80 | 0.4020 | 1358.8 | 999999 | |
| 55.51 | -6.00 | 30.16 | -6.00 | -22.93 | 109.65 | 7.12 | 196.12 | 0.4130 | 1351.2 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.07 | -17.44 | 108.96 | 6.44 | 199.30 | 0.3250 | 1101.0 | 801.8 | |
| 0.85 | -6.00 | 0.46 | -6.00 | -23.29 | 109.15 | 6.62 | 194.81 | 0.4163 | 876.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -24.36 | 109.17 | 6.64 | 194.16 | 0.4327 | 657.0 | 471.5 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -17.81 | 108.88 | 6.36 | 198.69 | 0.3303 | 759.0 | 624.3 | |
| 1.53 | -6.00 | 0.83 | -6.00 | -22.51 | 109.05 | 6.52 | 195.12 | 0.4040 | 1292.7 | 999999 | |
| 0.77 | -6.00 | 0.42 | -6.00 | -23.09 | 109.04 | 6.52 | 194.71 | 0.4129 | 819.4 | 999999 | |
| 0.00 | 3.33 | 0.00 | 1.74 | -17.47 | 108.71 | 6.19 | 198.58 | 0.3241 | 955.0 | 672.3 | |
| 0.00 | 3.33 | 0.00 | 1.83 | -24.65 | 108.96 | 6.43 | 193.55 | 0.4363 | 796.0 | 662.2 | |
| 8.95 | -6.00 | 4.85 | -6.00 | -22.77 | 108.83 | 6.31 | 194.47 | 0.4071 | 1316.5 | 999999 | |
| 2.39 | -6.00 | 1.30 | -6.00 | -23.12 | 108.78 | 6.26 | 194.13 | 0.4123 | 914.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -24.19 | 108.84 | 6.31 | 193.58 | 0.4289 | 684.0 | 567.6 | |
| 1.11 | 2.90 | 0.60 | 1.56 | -21.62 | 108.59 | 6.06 | 194.71 | 0.3883 | 816.5 | 567.3 | |
| 1.45 | -6.00 | 0.79 | -6.00 | -23.22 | 108.60 | 6.07 | 193.66 | 0.4131 | 723.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.75 | 108.43 | 5.91 | 194.27 | 0.3896 | 266.0 | 221.2 | |
| 1.45 | -6.00 | 0.79 | -6.00 | -23.38 | 108.47 | 5.95 | 193.30 | 0.4151 | 627.9 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.65 | -21.55 | 107.85 | 5.33 | 193.04 | 0.3844 | 532.0 | 280.8 | |
| 0.00 | 2.64 | 0.00 | 1.44 | -23.77 | 107.94 | 5.41 | 191.94 | 0.4193 | 634.0 | 323.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.68 | 107.57 | 5.04 | 192.29 | 0.3854 | -349.0 | -186.0 | |
| 0.00 | 12.88 | 0.00 | 6.89 | -21.27 | 107.49 | 4.97 | 192.36 | 0.3786 | -529.0 | -403.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -22.64 | 107.54 | 5.01 | 191.68 | 0.4004 | 665.0 | 504.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -21.62 | 107.38 | 4.85 | 191.87 | 0.3837 | 485.0 | 316.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.98 | 107.29 | 4.77 | 192.04 | 0.3734 | -1017.0 | -720.6 | |
| 0.00 | 2.73 | 0.00 | 1.47 | -22.26 | 107.24 | 4.71 | 191.19 | 0.3934 | 776.0 | 574.2 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -19.97 | 107.04 | 4.51 | 192.03 | 0.3564 | -842.0 | -695.4 | |
| 1.79 | 3.16 | 0.97 | 1.71 | -23.38 | 106.89 | 4.36 | 189.85 | 0.4100 | 731.2 | 661.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.11 | 106.76 | 4.23 | 190.66 | 0.3737 | -1044.0 | -857.3 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -19.66 | 106.56 | 4.03 | 190.96 | 0.3498 | -871.0 | -777.6 | |
| 0.00 | 2.30 | 0.00 | 1.25 | -23.80 | 106.61 | 4.09 | 189.06 | 0.4159 | 758.0 | 559.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.35 | 106.44 | 3.92 | 189.30 | 0.3926 | 821.0 | 637.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.88 | 106.09 | 3.57 | 189.61 | 0.3520 | -590.0 | -489.5 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -18.72 | 105.97 | 3.45 | 189.90 | 0.3329 | -919.0 | -708.3 | |
| 5.37 | 31.12 | 2.86 | 16.54 | -20.66 | 105.98 | 3.46 | 188.95 | 0.3644 | 1135.3 | 322.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -22.26 | 106.02 | 3.50 | 188.36 | 0.3900 | 688.0 | 494.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.08 | 105.93 | 3.40 | 188.63 | 0.3709 | -886.0 | -611.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -22.35 | 105.90 | 3.37 | 188.03 | 0.3913 | 822.0 | 621.6 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -19.40 | 105.67 | 3.15 | 188.72 | 0.3433 | -969.0 | -717.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -22.96 | 105.72 | 3.19 | 187.39 | 0.4006 | 658.0 | 490.1 | |
| 0.00 | 5.88 | 0.00 | 3.14 | -21.52 | 105.65 | 3.13 | 187.77 | 0.3774 | -677.0 | -585.5 | |
| 0.43 | -42.00 | 0.23 | -42.00 | -20.60 | 105.41 | 2.89 | 187.52 | 0.3621 | -652.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -25.56 | 105.49 | 2.97 | 186.10 | 0.4412 | 702.0 | 583.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -25.92 | 105.34 | 2.81 | 185.69 | 0.4466 | 734.0 | 525.9 | |
| 2.13 | 55.00 | 1.14 | 29.29 | -21.24 | 105.20 | 2.68 | 186.76 | 0.3719 | -822.4 | -478.2 | |
| 0.00 | 4.01 | 0.00 | 2.12 | -20.03 | 105.09 | 2.56 | 186.88 | 0.3522 | -749.0 | -629.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -23.80 | 105.13 | 2.60 | 185.80 | 0.4128 | -630.0 | -489.0 | |
| 0.00 | 4.09 | 0.00 | 2.16 | -19.69 | 104.93 | 2.40 | 186.57 | 0.3462 | -514.0 | -787.8 | |
| 0.00 | 2.81 | 0.00 | 1.49 | -19.94 | 104.80 | 2.28 | 186.16 | 0.3501 | -650.0 | -665.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.74 | 104.77 | 2.24 | 185.02 | 0.4113 | -904.0 | -772.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -23.93 | 104.71 | 2.18 | 184.84 | 0.4143 | -799.0 | -676.5 | |
| 17.99 | -52.00 | 9.58 | -52.00 | -21.11 | 104.63 | 2.11 | 185.36 | 0.3689 | -1062.9 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.40 | -19.84 | 104.49 | 1.96 | 185.34 | 0.3481 | -964.0 | -693.0 | |
| 2.47 | 4.35 | 1.31 | 2.30 | -20.06 | 104.46 | 1.93 | 185.20 | 0.3516 | -1075.0 | -837.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -23.87 | 104.48 | 1.96 | 184.35 | 0.4129 | -919.0 | -776.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -27.32 | 104.44 | 1.91 | 183.66 | 0.4671 | 553.0 | 432.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -26.88 | 104.40 | 1.87 | 183.65 | 0.4603 | 703.0 | 495.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.38 | 104.24 | 1.72 | 184.54 | 0.3565 | -711.0 | -618.9 | |
| 0.00 | 5.29 | 0.00 | 2.79 | -19.75 | 104.21 | 1.68 | 184.59 | 0.3461 | -390.0 | -442.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.90 | 104.15 | 1.62 | 183.78 | 0.3971 | -760.0 | -617.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -21.27 | 104.13 | 1.60 | 184.05 | 0.3708 | -813.0 | -661.2 | |
| 0.00 | 2.47 | 0.00 | 1.32 | -21.62 | 104.00 | 1.48 | 183.67 | 0.3763 | -684.0 | -489.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.77 | 103.98 | 1.46 | 183.42 | 0.3949 | -895.0 | -689.4 | |
| 0.00 | 5.46 | 0.00 | 2.91 | -21.20 | 103.81 | 1.28 | 183.26 | 0.3694 | -791.0 | -729.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.47 | 103.80 | 1.27 | 183.53 | 0.3410 | -915.0 | -725.4 | |
| 0.00 | 3.58 | 0.00 | 1.89 | -19.87 | 103.77 | 1.24 | 183.37 | 0.3477 | -370.0 | -678.7 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -24.16 | 103.68 | 1.15 | 182.53 | 0.4168 | -696.0 | -623.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.29 | 103.53 | 1.01 | 182.42 | 0.3867 | -854.0 | -652.5 | |
| 1.02 | 17.74 | 0.55 | 9.46 | -21.46 | 103.40 | 0.87 | 182.19 | 0.3732 | -909.4 | -834.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -22.06 | 103.40 | 0.88 | 182.13 | 0.3830 | -775.0 | -549.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -23.90 | 103.38 | 0.86 | 181.91 | 0.4125 | -1077.0 | -783.5 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -19.81 | 103.30 | 0.77 | 182.10 | 0.3463 | -883.0 | -699.6 | |
| 2.81 | 3.24 | 1.52 | 1.75 | -23.22 | 103.15 | 0.63 | 181.44 | 0.4015 | -994.9 | -941.6 | |
| 2.30 | 248.91 | 1.22 | 131.94 | -20.25 | 102.98 | 0.46 | 181.22 | 0.3534 | -1004.7 | -469.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.42 | 102.89 | 0.37 | 180.88 | 0.3885 | -613.0 | -507.9 | |
| 6.14 | 14.84 | 3.29 | 7.94 | -22.06 | 102.67 | 0.14 | 180.35 | 0.3828 | -724.3 | -691.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.87 | 102.64 | 0.11 | 180.26 | 0.4118 | -625.0 | -556.9 | |
| 38.71 | -81.00 | 20.53 | -81.00 | -20.60 | 102.42 | -0.11 | 179.71 | 0.3590 | -1215.7 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.30 | -24.61 | 102.38 | -0.14 | 179.69 | 0.4237 | -528.0 | -552.1 | |
| 6.31 | -81.00 | 3.36 | -81.00 | -21.20 | 102.35 | -0.17 | 179.56 | 0.3688 | -801.5 | 999999 | |
| 12.28 | -81.00 | 6.49 | -81.00 | -20.06 | 102.26 | -0.27 | 179.28 | 0.3502 | -1405.8 | 999999 | |
| 4.18 | -81.00 | 2.23 | -81.00 | -21.65 | 102.26 | -0.27 | 179.33 | 0.3761 | -860.7 | 999999 | |
| 1.53 | -81.00 | 0.81 | -81.00 | -20.25 | 101.76 | -0.77 | 177.95 | 0.3535 | -853.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.00 | 100.56 | -1.96 | 174.71 | 0.3506 | -906.0 | -651.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -20.13 | 100.25 | -2.28 | 173.90 | 0.3532 | -987.0 | -772.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.44 | 100.21 | -2.32 | 173.91 | 0.3584 | -714.0 | -539.7 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -20.66 | 99.80 | -2.73 | 172.91 | 0.3628 | -888.0 | -722.9 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -20.38 | 99.77 | -2.76 | 172.74 | 0.3582 | -791.0 | -674.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -20.51 | 99.52 | -3.01 | 172.13 | 0.3608 | -809.0 | -611.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
