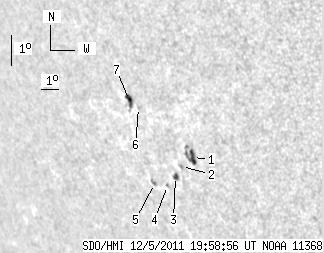

SDO HMI 2011-12-05 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.90 | 28.06 | 12.93 | 26.12 | -16.43 | 46.37 | -56.16 | 109.77 | 0.8485 | 152.1 | 110.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 12.02 | 5.15 | 10.85 | -16.84 | 47.70 | -54.83 | 110.53 | 0.8376 | 617.7 | 370.3 | |
| 0.00 | 0.43 | 0.00 | 0.39 | -17.13 | 46.98 | -55.55 | 110.69 | 0.8445 | 421.0 | 364.8 | |
| 2.64 | 2.90 | 2.46 | 2.70 | -17.44 | 46.50 | -56.03 | 110.94 | 0.8493 | 437.1 | 96.7 | |
| 0.00 | 1.02 | 0.00 | 0.97 | -17.72 | 45.91 | -56.61 | 111.14 | 0.8548 | 451.0 | 331.1 | |
| 0.43 | 2.39 | 0.41 | 2.31 | -17.66 | 45.20 | -57.33 | 110.91 | 0.8607 | 404.8 | 241.5 | |
| 0.00 | 2.05 | 0.00 | 1.94 | -15.31 | 45.37 | -57.16 | 108.25 | 0.8553 | -594.0 | -424.0 | |
| 5.12 | 7.25 | 4.91 | 6.96 | -15.10 | 44.94 | -57.58 | 107.92 | 0.8587 | -515.2 | -379.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
