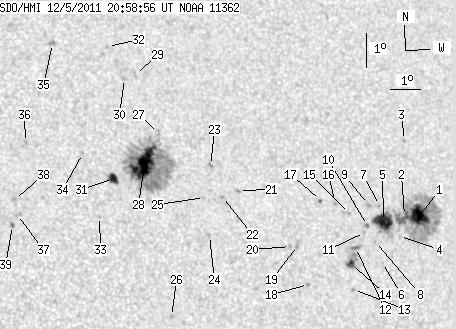

SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.06 | 430.54 | 51.70 | 247.78 | 7.42 | 131.45 | 29.47 | 284.77 | 0.5052 | 7.3 | -20.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.08 | 143.26 | 10.91 | 86.44 | 6.75 | 136.31 | 34.34 | 281.38 | 0.5736 | -1045.9 | -317.7 | |
| 0.43 | -1.00 | 0.26 | -1.00 | 6.75 | 135.77 | 33.80 | 281.53 | 0.5660 | -828.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 8.98 | 135.98 | 34.01 | 285.33 | 0.5750 | 679.0 | 544.4 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 6.13 | 135.55 | 33.57 | 280.50 | 0.5614 | -214.0 | -250.7 | |
| 19.53 | 37.09 | 11.60 | 22.05 | 6.57 | 135.01 | 33.04 | 281.44 | 0.5547 | -1027.4 | -543.9 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 5.36 | 134.89 | 32.92 | 279.29 | 0.5504 | -734.0 | -557.8 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 7.05 | 134.90 | 32.93 | 282.32 | 0.5544 | -762.0 | -596.3 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 5.98 | 134.68 | 32.71 | 280.47 | 0.5487 | -624.0 | -463.2 | |
| 0.00 | 2.30 | 0.00 | 1.36 | 7.08 | 134.52 | 32.54 | 282.50 | 0.5490 | -827.0 | -565.7 | |
| 0.34 | 1.19 | 0.20 | 0.70 | 6.46 | 134.43 | 32.46 | 281.40 | 0.5462 | -987.5 | -885.0 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.25 | 134.31 | 32.34 | 281.06 | 0.5440 | -868.0 | -738.8 | |
| 2.22 | 5.12 | 1.30 | 3.00 | 5.80 | 133.97 | 31.99 | 280.34 | 0.5380 | -706.9 | -549.7 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 4.56 | 133.83 | 31.85 | 278.07 | 0.5335 | -754.0 | -579.7 | |
| 4.52 | 11.34 | 2.64 | 6.64 | 5.30 | 133.80 | 31.82 | 279.46 | 0.5344 | 734.3 | -31.9 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.81 | 133.83 | 31.85 | 282.25 | 0.5384 | -927.0 | -747.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 7.11 | 133.36 | 31.39 | 282.96 | 0.5324 | -514.0 | -352.2 | |
| 1.19 | 1.28 | 0.69 | 0.74 | 7.20 | 132.84 | 30.87 | 283.31 | 0.5252 | 485.8 | 196.0 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 4.71 | 132.27 | 30.30 | 278.72 | 0.5108 | -836.0 | -668.2 | |
| 0.00 | 2.22 | 0.00 | 1.27 | 5.87 | 131.96 | 29.99 | 281.07 | 0.5087 | -765.0 | -662.5 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 5.84 | 131.72 | 29.74 | 281.09 | 0.5050 | -873.0 | -718.0 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 7.51 | 130.06 | 28.08 | 285.06 | 0.4853 | -865.0 | -650.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 7.33 | 129.51 | 27.53 | 284.96 | 0.4765 | -837.0 | -684.5 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 8.26 | 129.17 | 27.20 | 287.02 | 0.4750 | 836.0 | 660.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 6.17 | 129.00 | 27.03 | 282.77 | 0.4652 | -774.0 | -683.2 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 7.30 | 128.90 | 26.93 | 285.19 | 0.4674 | -865.0 | -740.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 3.78 | 127.64 | 25.66 | 277.99 | 0.4382 | -840.0 | -693.6 | |
| 0.00 | 2.98 | 0.00 | 1.66 | 9.22 | 127.51 | 25.53 | 290.01 | 0.4547 | 610.0 | 500.3 | |
| 37.61 | 175.24 | 20.75 | 96.81 | 8.32 | 126.98 | 25.00 | 288.44 | 0.4428 | 1161.9 | 343.6 | |
| 0.00 | 2.56 | 0.00 | 1.42 | 10.98 | 126.89 | 24.92 | 294.14 | 0.4552 | 765.0 | 572.3 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 10.87 | 126.52 | 24.54 | 294.20 | 0.4491 | 845.0 | 665.2 | |
| 5.80 | 8.95 | 3.17 | 4.89 | 7.88 | 125.93 | 23.96 | 288.14 | 0.4251 | 1081.3 | 551.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 11.83 | 126.04 | 24.07 | 296.59 | 0.4483 | 742.0 | 519.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 6.75 | 125.41 | 23.44 | 285.85 | 0.4124 | 801.0 | 598.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 8.62 | 124.97 | 23.00 | 290.53 | 0.4142 | 534.0 | 453.6 | |
| 0.00 | 3.33 | 0.00 | 1.82 | 11.92 | 124.24 | 22.27 | 298.50 | 0.4237 | 914.0 | 700.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 8.95 | 123.15 | 21.18 | 292.84 | 0.3889 | 693.0 | 649.5 | |
| 0.00 | 2.30 | 0.00 | 1.23 | 6.81 | 122.78 | 20.81 | 287.79 | 0.3721 | 804.0 | 651.2 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 7.26 | 122.71 | 20.73 | 289.00 | 0.3730 | 834.0 | 659.0 | |
| 0.34 | 1.71 | 0.18 | 0.91 | 6.48 | 122.61 | 20.63 | 287.07 | 0.3679 | 930.5 | 836.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
