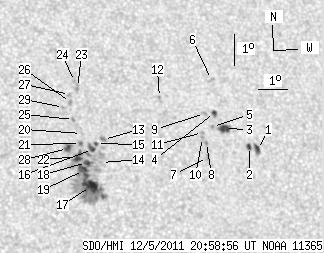

SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.54 | 165.53 | 27.93 | 93.00 | 19.68 | 122.88 | 20.90 | 314.72 | 0.4741 | 302.6 | 367.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 4.52 | 1.79 | 2.64 | 19.93 | 127.90 | 25.93 | 309.25 | 0.5330 | -743.3 | -703.3 | |
| 2.13 | 2.81 | 1.24 | 1.64 | 20.02 | 127.64 | 25.67 | 309.67 | 0.5308 | -937.9 | -779.5 | |
| 5.80 | 7.93 | 3.37 | 4.61 | 20.59 | 126.87 | 24.90 | 311.34 | 0.5270 | -908.7 | -710.2 | |
| 2.22 | 2.73 | 1.29 | 1.59 | 21.10 | 126.61 | 24.64 | 312.39 | 0.5287 | -771.8 | -852.0 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 20.66 | 126.46 | 24.49 | 311.88 | 0.5231 | -910.0 | -747.7 | |
| 0.00 | 2.22 | 0.00 | 1.30 | 22.14 | 126.70 | 24.72 | 313.84 | 0.5393 | -721.0 | -572.4 | |
| 0.00 | 2.56 | 0.00 | 1.47 | 19.68 | 126.13 | 24.16 | 310.73 | 0.5106 | -821.0 | -740.4 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 20.15 | 126.17 | 24.20 | 311.42 | 0.5153 | -900.0 | -814.3 | |
| 0.00 | 2.22 | 0.00 | 1.29 | 21.07 | 126.26 | 24.28 | 312.73 | 0.5246 | -703.0 | -604.7 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 20.31 | 126.06 | 24.09 | 311.79 | 0.5154 | -820.0 | -681.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 20.47 | 126.09 | 24.11 | 312.01 | 0.5172 | -719.0 | -575.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 21.57 | 124.79 | 22.81 | 315.17 | 0.5135 | -791.0 | -657.2 | |
| 0.00 | 2.90 | 0.00 | 1.63 | 20.25 | 122.68 | 20.70 | 315.80 | 0.4777 | 742.0 | 544.9 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 19.53 | 122.51 | 20.54 | 314.87 | 0.4685 | 13.0 | 52.0 | |
| 1.19 | 9.55 | 0.67 | 5.36 | 20.13 | 122.42 | 20.45 | 315.94 | 0.4737 | 615.2 | 271.0 | |
| 2.56 | -15.00 | 1.43 | -15.00 | 19.94 | 122.26 | 20.29 | 315.86 | 0.4700 | 783.9 | 999999 | |
| 13.56 | 103.78 | 7.54 | 57.73 | 18.78 | 122.05 | 20.07 | 314.27 | 0.4557 | 1127.1 | 579.1 | |
| 2.64 | -17.00 | 1.48 | -17.00 | 19.53 | 122.01 | 20.04 | 315.55 | 0.4630 | 836.6 | 999999 | |
| 6.99 | -17.00 | 3.89 | -17.00 | 19.28 | 121.88 | 19.90 | 315.33 | 0.4590 | 1071.6 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 20.44 | 121.96 | 19.99 | 317.05 | 0.4721 | 498.0 | 404.9 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 20.13 | 121.89 | 19.91 | 316.67 | 0.4680 | 769.0 | 676.3 | |
| 5.63 | -17.00 | 3.14 | -17.00 | 19.72 | 121.77 | 19.79 | 316.19 | 0.4624 | 960.1 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.35 | 21.90 | 122.03 | 20.06 | 319.13 | 0.4884 | 773.0 | 633.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 22.09 | 121.96 | 19.99 | 319.51 | 0.4898 | 657.0 | 485.2 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 20.88 | 121.75 | 19.78 | 318.01 | 0.4747 | 786.0 | 568.5 | |
| 0.00 | 2.30 | 0.00 | 1.30 | 21.42 | 121.73 | 19.76 | 318.85 | 0.4802 | 791.0 | 687.6 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 21.67 | 121.73 | 19.76 | 319.22 | 0.4830 | 761.0 | 614.0 | |
| 3.75 | 4.78 | 2.09 | 2.66 | 19.97 | 121.43 | 19.46 | 317.05 | 0.4615 | 880.7 | 679.1 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 21.26 | 121.47 | 19.50 | 318.98 | 0.4759 | 749.0 | 622.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
