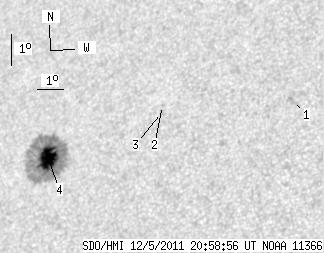

SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.24 | 160.06 | 17.08 | 108.00 | 17.17 | 62.12 | -39.85 | 64.54 | 0.6802 | -1048.2 | -308.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.95 | 0.00 | 3.02 | 18.89 | 70.74 | -31.23 | 56.97 | 0.5874 | -492.0 | -400.4 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 18.75 | 65.88 | -36.09 | 60.39 | 0.6439 | -587.0 | -469.6 | |
| 0.00 | 2.47 | 0.00 | 1.59 | 18.53 | 65.90 | -36.07 | 60.69 | 0.6425 | -596.0 | -566.3 | |
| 25.24 | 151.79 | 17.08 | 102.84 | 17.09 | 61.79 | -40.18 | 64.84 | 0.6837 | -1134.2 | -299.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
