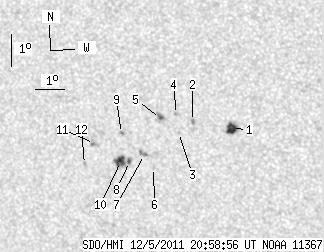

SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.42 | 45.54 | 10.52 | 26.04 | -18.04 | 77.84 | -24.14 | 129.05 | 0.5023 | -122.4 | -184.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.59 | 9.47 | 4.25 | 5.29 | -17.59 | 80.52 | -21.46 | 131.40 | 0.4668 | 993.6 | 759.5 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -17.38 | 79.24 | -22.73 | 129.48 | 0.4798 | 977.0 | 765.8 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -17.72 | 78.72 | -23.25 | 129.45 | 0.4890 | 663.0 | 447.5 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -17.16 | 78.73 | -23.24 | 128.52 | 0.4840 | 777.0 | 587.1 | |
| 1.28 | 4.78 | 0.73 | 2.71 | -17.29 | 78.17 | -23.80 | 128.11 | 0.4917 | 908.6 | 760.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -18.81 | 77.71 | -24.26 | 130.10 | 0.5106 | -745.0 | -583.5 | |
| 0.00 | 4.52 | 0.00 | 2.60 | -18.41 | 77.46 | -24.51 | 129.18 | 0.5098 | -1011.0 | -797.4 | |
| 1.79 | 12.62 | 1.04 | 7.31 | -18.63 | 76.92 | -25.06 | 128.95 | 0.5182 | -924.6 | -587.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -17.76 | 76.78 | -25.20 | 127.40 | 0.5125 | -997.0 | -840.1 | |
| 7.76 | -8.00 | 4.50 | -8.00 | -18.63 | 76.61 | -25.37 | 128.63 | 0.5218 | -899.5 | 999999 | |
| 0.00 | 4.78 | 0.00 | 2.78 | -18.07 | 75.80 | -26.18 | 126.92 | 0.5267 | -930.0 | -758.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -18.73 | 75.34 | -26.63 | 127.52 | 0.5374 | -877.0 | -637.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
