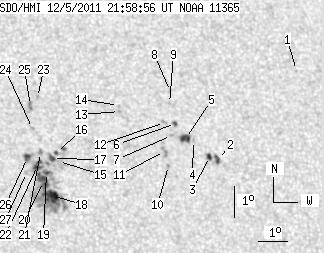

SDO HMI 2011-12-05 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.79 | 153.67 | 28.18 | 86.78 | 19.73 | 123.02 | 21.60 | 313.94 | 0.4823 | 266.3 | 364.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.63 | 22.73 | 131.35 | 29.93 | 309.68 | 0.6003 | 713.0 | 527.9 | |
| 2.98 | 4.26 | 1.75 | 2.50 | 19.92 | 127.91 | 26.49 | 308.69 | 0.5395 | -732.7 | -669.2 | |
| 2.30 | 3.24 | 1.35 | 1.90 | 20.01 | 127.65 | 26.23 | 309.10 | 0.5372 | -863.2 | -693.5 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 20.52 | 127.18 | 25.76 | 310.34 | 0.5361 | -579.0 | -469.5 | |
| 5.97 | 7.25 | 3.49 | 4.24 | 20.58 | 126.91 | 25.49 | 310.71 | 0.5337 | -892.7 | -714.6 | |
| 1.62 | 1.96 | 0.95 | 1.15 | 21.05 | 126.65 | 25.23 | 311.71 | 0.5349 | -770.9 | -647.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 20.68 | 126.44 | 25.02 | 311.35 | 0.5292 | -841.0 | -701.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 22.07 | 126.66 | 25.24 | 313.19 | 0.5441 | -720.0 | -596.1 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 21.69 | 126.55 | 25.13 | 312.75 | 0.5395 | -588.0 | -434.6 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 19.73 | 126.17 | 24.75 | 310.18 | 0.5179 | -949.0 | -796.6 | |
| 0.00 | 4.69 | 0.00 | 2.72 | 20.17 | 126.11 | 24.69 | 310.93 | 0.5210 | -800.0 | -756.6 | |
| 0.00 | 2.22 | 0.00 | 1.29 | 21.09 | 126.27 | 24.85 | 312.16 | 0.5310 | -611.0 | -535.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 21.44 | 124.76 | 23.34 | 314.35 | 0.5179 | -729.0 | -525.2 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 21.63 | 124.76 | 23.34 | 314.64 | 0.5197 | -667.0 | -600.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 19.87 | 122.44 | 21.02 | 314.78 | 0.4773 | 290.0 | 262.4 | |
| 1.19 | 5.88 | 0.67 | 3.32 | 20.15 | 122.41 | 20.99 | 315.26 | 0.4798 | 603.8 | 440.2 | |
| 2.64 | 97.99 | 1.49 | 54.70 | 19.96 | 122.25 | 20.83 | 315.18 | 0.4762 | 784.9 | 611.4 | |
| 11.94 | -17.00 | 6.66 | -17.00 | 18.80 | 122.06 | 20.64 | 313.55 | 0.4624 | 1119.5 | 999999 | |
| 2.13 | -17.00 | 1.19 | -17.00 | 19.52 | 121.99 | 20.57 | 314.82 | 0.4688 | 782.4 | 999999 | |
| 10.15 | -17.00 | 5.67 | -17.00 | 19.24 | 121.85 | 20.43 | 314.55 | 0.4645 | 1043.7 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.49 | 20.15 | 121.87 | 20.45 | 315.97 | 0.4740 | 816.0 | 638.8 | |
| 5.29 | -17.00 | 2.96 | -17.00 | 19.74 | 121.72 | 20.30 | 315.54 | 0.4681 | 936.6 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 21.89 | 122.02 | 20.60 | 318.40 | 0.4939 | 737.0 | 654.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 20.90 | 121.71 | 20.29 | 317.36 | 0.4802 | 704.0 | 531.7 | |
| 0.00 | 3.24 | 0.00 | 1.84 | 21.63 | 121.75 | 20.33 | 318.40 | 0.4884 | 741.0 | 710.4 | |
| 3.58 | 5.80 | 2.00 | 3.25 | 19.99 | 121.42 | 20.00 | 316.35 | 0.4675 | 827.0 | 616.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 19.52 | 121.32 | 19.90 | 315.73 | 0.4616 | 238.0 | 211.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
