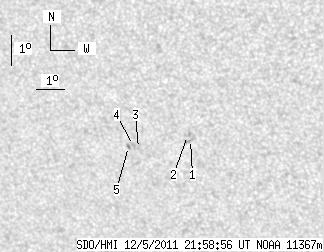

SDO HMI 2011-12-05 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.52 | 0.00 | 6.95 | -25.28 | 76.94 | -24.48 | 139.07 | 0.5739 | -210.2 | 83.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.78 | 0.00 | 2.86 | -25.22 | 77.78 | -23.64 | 139.90 | 0.5654 | 699.0 | 512.2 | |
| 0.00 | 2.39 | 0.00 | 1.43 | -25.09 | 77.70 | -23.72 | 139.65 | 0.5648 | 761.0 | 644.9 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -25.52 | 75.85 | -25.57 | 138.18 | 0.5865 | -686.0 | -564.0 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -25.42 | 75.69 | -25.73 | 137.89 | 0.5871 | -934.0 | -720.6 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -25.45 | 75.50 | -25.92 | 137.74 | 0.5892 | -891.0 | -684.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
