SDO HMI 2011-12-05 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.20 | 0.00 | 6.81 | 27.34 | 101.63 | 0.76 | 358.52 | 0.4564 | -722.1 | -631.3 | |
|
next observation for the same group /

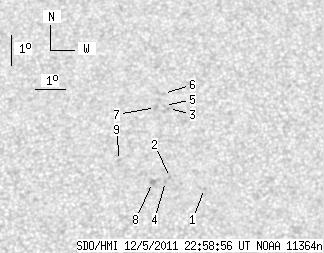

back to the solar disc SDO HMI 2011-12-05 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.52 | 25.86 | 103.08 | 2.21 | 355.39 | 0.4344 | -687.0 | -572.8 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 26.22 | 101.97 | 1.10 | 357.74 | 0.4390 | -748.0 | -655.6 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 28.51 | 101.93 | 1.06 | 358.03 | 0.4747 | -821.0 | -695.2 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 26.09 | 101.80 | 0.94 | 358.07 | 0.4369 | -733.0 | -581.6 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 28.61 | 101.79 | 0.92 | 358.29 | 0.4762 | -688.0 | -506.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 29.02 | 101.76 | 0.89 | 358.37 | 0.4824 | -660.0 | -516.8 | |
| 0.00 | 2.47 | 0.00 | 1.39 | 28.55 | 101.49 | 0.62 | 358.85 | 0.4750 | -751.0 | -614.8 | |
| 0.00 | 2.99 | 0.00 | 1.64 | 26.06 | 101.38 | 0.51 | 358.95 | 0.4362 | -856.0 | -753.6 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 26.78 | 100.29 | -0.58 | 1.16 | 0.4476 | -555.0 | -565.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
