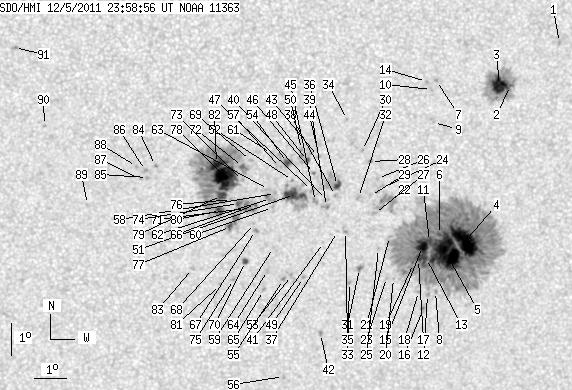

SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 233.48 | 1260.96 | 125.72 | 680.45 | -21.80 | 107.51 | 7.20 | 196.78 | 0.3985 | 103.3 | 156.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.81 | -16.33 | 112.73 | 12.42 | 215.78 | 0.3545 | 967.0 | 775.8 | |
| 0.77 | 78.98 | 0.41 | 41.84 | -17.66 | 111.27 | 10.96 | 210.42 | 0.3593 | 853.9 | 498.2 | |
| 16.63 | -2.00 | 8.81 | -2.00 | -17.66 | 110.93 | 10.61 | 209.63 | 0.3565 | 1280.9 | 999999 | |
| 40.69 | 704.45 | 22.20 | 384.24 | -22.58 | 110.13 | 9.82 | 202.04 | 0.4214 | 1430.0 | 463.6 | |
| 60.99 | -4.00 | 33.32 | -4.00 | -22.97 | 109.58 | 9.26 | 200.55 | 0.4238 | 1290.9 | 999999 | |
| 1.45 | -4.00 | 0.79 | -4.00 | -22.36 | 109.31 | 8.99 | 200.56 | 0.4133 | 1176.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -17.50 | 108.94 | 8.62 | 205.05 | 0.3392 | 1145.0 | 848.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -24.19 | 109.30 | 8.99 | 198.96 | 0.4404 | 638.0 | 472.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.81 | 108.91 | 8.59 | 203.35 | 0.3584 | 791.0 | 572.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -17.78 | 108.80 | 8.48 | 204.33 | 0.3423 | 658.0 | 633.3 | |
| 0.85 | -4.00 | 0.46 | -4.00 | -22.58 | 109.00 | 8.68 | 199.72 | 0.4149 | 1413.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -24.29 | 109.05 | 8.73 | 198.39 | 0.4405 | 529.0 | 448.5 | |
| 1.45 | -4.00 | 0.79 | -4.00 | -23.13 | 108.94 | 8.62 | 199.12 | 0.4227 | 789.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -17.53 | 108.63 | 8.31 | 204.22 | 0.3375 | 976.0 | 801.5 | |
| 8.87 | -4.00 | 4.83 | -4.00 | -22.74 | 108.78 | 8.47 | 199.13 | 0.4162 | 1314.5 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.32 | -24.81 | 108.92 | 8.60 | 197.74 | 0.4476 | 674.0 | 613.4 | |
| 0.43 | -4.00 | 0.23 | -4.00 | -23.16 | 108.68 | 8.36 | 198.56 | 0.4219 | 906.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -24.19 | 108.75 | 8.43 | 197.87 | 0.4376 | 580.0 | 493.2 | |
| 0.43 | -4.00 | 0.23 | -4.00 | -23.29 | 108.52 | 8.21 | 198.14 | 0.4230 | 684.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -23.77 | 107.90 | 7.59 | 196.50 | 0.4273 | 481.0 | 354.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.42 | 107.70 | 7.38 | 197.09 | 0.4059 | 138.0 | 156.8 | |
| 0.00 | 24.48 | 0.00 | 13.15 | -21.36 | 107.55 | 7.23 | 197.61 | 0.3892 | -384.0 | -163.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.74 | 107.67 | 7.36 | 196.05 | 0.4258 | 475.0 | 411.7 | |
| 0.00 | 3.92 | 0.00 | 2.10 | -20.89 | 107.33 | 7.02 | 197.52 | 0.3808 | -350.0 | -540.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -22.80 | 107.36 | 7.05 | 196.07 | 0.4103 | 580.0 | 418.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.57 | 107.22 | 6.91 | 197.53 | 0.3754 | -866.0 | -655.1 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -21.68 | 107.18 | 6.86 | 196.51 | 0.3923 | 368.0 | 199.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.03 | 106.98 | 6.66 | 197.40 | 0.3659 | -962.0 | -819.3 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -21.11 | 107.02 | 6.71 | 196.61 | 0.3828 | -770.0 | -611.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -19.69 | 106.71 | 6.39 | 197.04 | 0.3593 | -945.0 | -789.1 | |
| 1.54 | 3.58 | 0.84 | 1.95 | -23.45 | 106.78 | 6.47 | 194.38 | 0.4177 | 823.7 | 521.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.17 | 106.64 | 6.33 | 195.68 | 0.3820 | -1031.0 | -844.2 | |
| 0.00 | 1.79 | 0.00 | 0.98 | -23.90 | 106.48 | 6.16 | 193.46 | 0.4235 | 720.0 | 540.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -18.72 | 106.20 | 5.88 | 196.59 | 0.3417 | -942.0 | -681.5 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -22.26 | 106.28 | 5.96 | 194.06 | 0.3973 | 820.0 | 606.7 | |
| 3.41 | 22.86 | 1.82 | 12.18 | -20.79 | 105.96 | 5.64 | 194.33 | 0.3732 | 984.9 | 443.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.26 | 106.02 | 5.70 | 193.48 | 0.3963 | 667.0 | 471.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -21.11 | 105.91 | 5.59 | 193.98 | 0.3780 | -572.0 | -406.0 | |
| 0.00 | 3.16 | 0.00 | 1.69 | -21.46 | 105.64 | 5.32 | 193.10 | 0.3824 | -780.0 | -668.6 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -21.24 | 105.63 | 5.31 | 193.22 | 0.3789 | -716.0 | -542.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -22.61 | 105.58 | 5.27 | 192.28 | 0.4003 | 541.0 | 398.9 | |
| 0.00 | 2.22 | 0.00 | 1.23 | -25.56 | 105.61 | 5.29 | 190.80 | 0.4461 | 891.0 | 747.1 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -19.88 | 105.33 | 5.01 | 193.39 | 0.3563 | -587.0 | -518.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.66 | 105.29 | 4.97 | 193.45 | 0.3526 | -759.0 | -622.9 | |
| 0.00 | 2.81 | 0.00 | 1.50 | -21.30 | 105.28 | 4.96 | 192.35 | 0.3787 | -743.0 | -698.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.41 | 105.22 | 4.90 | 192.75 | 0.3644 | -612.0 | -463.7 | |
| 0.00 | 2.64 | 0.00 | 1.41 | -20.95 | 105.14 | 4.83 | 192.22 | 0.3727 | -1.0 | 40.3 | |
| 2.30 | 10.24 | 1.22 | 5.42 | -20.00 | 104.99 | 4.67 | 192.43 | 0.3570 | -794.4 | -758.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.74 | 104.98 | 4.66 | 190.35 | 0.4160 | -733.0 | -545.3 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -19.66 | 104.79 | 4.47 | 192.13 | 0.3508 | -1060.0 | -821.8 | |
| 15.78 | 41.20 | 8.42 | 21.99 | -21.08 | 104.61 | 4.29 | 190.83 | 0.3729 | -999.2 | -381.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.63 | 104.53 | 4.21 | 190.89 | 0.3656 | -935.0 | -723.1 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -23.67 | 104.59 | 4.27 | 189.53 | 0.4139 | -845.0 | -720.1 | |
| 4.52 | 8.27 | 2.39 | 4.38 | -20.06 | 104.36 | 4.04 | 190.76 | 0.3560 | -1084.1 | -781.3 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -23.80 | 104.34 | 4.02 | 188.92 | 0.4153 | -959.0 | -805.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -26.98 | 104.44 | 4.13 | 187.96 | 0.4650 | 774.0 | 592.2 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -20.22 | 104.14 | 3.82 | 190.12 | 0.3579 | -812.0 | -760.0 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -21.04 | 104.00 | 3.69 | 189.36 | 0.3707 | -1016.0 | -822.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.77 | 103.98 | 3.67 | 188.56 | 0.3981 | -859.0 | -637.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.49 | 103.92 | 3.60 | 188.94 | 0.3776 | -837.0 | -642.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.78 | 103.85 | 3.53 | 189.57 | 0.3499 | -969.0 | -774.9 | |
| 0.00 | 6.91 | 0.00 | 3.69 | -21.20 | 103.85 | 3.53 | 188.90 | 0.3728 | -942.0 | -853.0 | |
| 0.00 | 2.39 | 0.00 | 1.27 | -20.92 | 103.78 | 3.46 | 188.85 | 0.3681 | -923.0 | -788.1 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -23.51 | 103.81 | 3.49 | 187.88 | 0.4095 | -940.0 | -704.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -24.16 | 103.70 | 3.38 | 187.40 | 0.4195 | -832.0 | -713.1 | |
| 0.34 | 30.28 | 0.18 | 16.19 | -21.39 | 103.38 | 3.06 | 187.65 | 0.3748 | -1048.5 | -819.0 | |
| 0.00 | 2.13 | 0.00 | 1.15 | -22.22 | 103.39 | 3.08 | 187.39 | 0.3881 | -818.0 | -639.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -22.00 | 103.36 | 3.04 | 187.38 | 0.3845 | -846.0 | -722.2 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -20.00 | 103.19 | 2.87 | 187.73 | 0.3519 | -869.0 | -635.2 | |
| 3.16 | 3.33 | 1.71 | 1.80 | -23.22 | 103.09 | 2.78 | 186.37 | 0.4034 | -878.4 | -646.5 | |
| 1.45 | -66.00 | 0.77 | -66.00 | -21.52 | 103.06 | 2.74 | 186.83 | 0.3762 | -829.8 | 999999 | |
| 1.88 | 229.02 | 0.99 | 121.38 | -20.19 | 102.94 | 2.63 | 187.00 | 0.3544 | -993.2 | -493.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.63 | 102.95 | 2.63 | 186.86 | 0.3616 | -577.0 | -439.9 | |
| 2.39 | -66.00 | 1.27 | -66.00 | -21.36 | 102.84 | 2.52 | 186.32 | 0.3732 | -980.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.80 | 102.72 | 2.40 | 185.36 | 0.4121 | -860.0 | -607.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -21.23 | 102.61 | 2.29 | 185.80 | 0.3708 | -797.0 | -647.5 | |
| 2.99 | -66.00 | 1.60 | -66.00 | -22.09 | 102.59 | 2.28 | 185.52 | 0.3846 | -710.4 | 999999 | |
| 35.74 | -72.00 | 18.96 | -72.00 | -20.54 | 102.41 | 2.09 | 185.49 | 0.3591 | -1245.4 | 999999 | |
| 6.31 | -72.00 | 3.36 | -72.00 | -21.11 | 102.29 | 1.98 | 185.03 | 0.3682 | -838.3 | 999999 | |
| 4.01 | -72.00 | 2.14 | -72.00 | -21.58 | 102.27 | 1.95 | 184.85 | 0.3759 | -839.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -23.96 | 102.30 | 1.99 | 184.40 | 0.4141 | -805.0 | -625.6 | |
| 15.10 | -72.00 | 7.98 | -72.00 | -20.09 | 102.12 | 1.81 | 184.85 | 0.3515 | -1343.4 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -23.44 | 101.39 | 1.08 | 182.45 | 0.4050 | -759.0 | -581.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -20.16 | 100.20 | -0.11 | 179.70 | 0.3513 | -957.0 | -783.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.54 | 99.95 | -0.37 | 179.04 | 0.3575 | -840.0 | -694.3 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -20.32 | 99.89 | -0.43 | 178.86 | 0.3539 | -981.0 | -681.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -20.60 | 99.73 | -0.59 | 178.46 | 0.3586 | -781.0 | -746.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -20.19 | 99.61 | -0.71 | 178.10 | 0.3520 | -936.0 | -729.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.39 | 98.05 | -2.27 | 174.30 | 0.3733 | -771.0 | -596.6 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -18.90 | 96.74 | -3.58 | 169.83 | 0.3358 | -820.0 | -614.3 | |
| 0.00 | 2.39 | 0.00 | 1.24 | -16.48 | 95.86 | -4.46 | 165.54 | 0.2997 | -981.0 | -804.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
