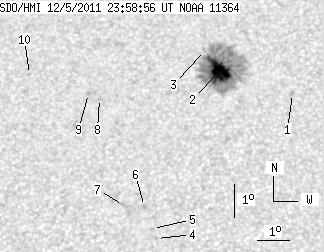

SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.29 | 178.52 | 12.19 | 93.46 | 18.79 | 103.56 | 3.25 | 350.48 | 0.3231 | -552.5 | -354.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.03 | 18.24 | 105.97 | 5.65 | 343.11 | 0.3232 | -790.0 | -655.6 | |
| 23.29 | 165.13 | 12.19 | 86.52 | 18.96 | 103.70 | 3.39 | 350.09 | 0.3260 | -1350.8 | -417.9 | |
| 0.00 | 2.13 | 0.00 | 1.12 | 19.58 | 103.25 | 2.93 | 351.70 | 0.3350 | -148.0 | -151.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 13.79 | 101.70 | 1.38 | 354.27 | 0.2354 | 880.0 | 586.2 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 14.10 | 101.58 | 1.26 | 354.88 | 0.2403 | 811.0 | 652.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.77 | 101.34 | 1.02 | 356.05 | 0.2514 | 998.0 | 764.7 | |
| 0.00 | 2.73 | 0.00 | 1.40 | 14.80 | 100.70 | 0.38 | 358.53 | 0.2514 | 673.0 | 616.7 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 18.09 | 99.96 | -0.36 | 1.12 | 0.3067 | 800.0 | 665.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 18.24 | 99.61 | -0.70 | 2.16 | 0.3095 | 806.0 | 708.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.83 | 97.77 | -2.55 | 7.54 | 0.3219 | 729.0 | 545.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
