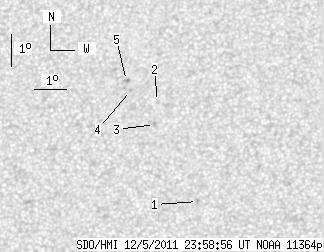

SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.93 | 0.00 | 4.23 | 19.25 | 89.96 | -10.36 | 27.58 | 0.3678 | -810.0 | -632.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.60 | 91.61 | -8.71 | 27.35 | 0.3173 | -879.0 | -661.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.70 | 90.18 | -10.14 | 26.52 | 0.3728 | -729.0 | -460.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.99 | 90.13 | -10.19 | 27.58 | 0.3629 | -746.0 | -613.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 20.05 | 89.29 | -11.03 | 28.01 | 0.3843 | -870.0 | -665.7 | |
| 0.00 | 2.64 | 0.00 | 1.42 | 20.36 | 89.14 | -11.18 | 27.92 | 0.3898 | -826.0 | -677.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
