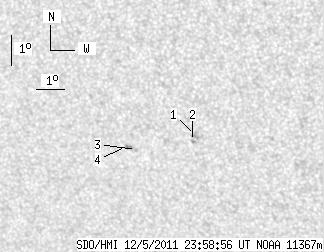

SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 9.12 | 0.21 | 5.48 | -25.32 | 76.64 | -23.68 | 140.00 | 0.5666 | -34.6 | -5.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-05 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.50 | 0.00 | 2.08 | -25.10 | 77.87 | -22.45 | 141.12 | 0.5530 | 945.0 | 700.4 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -25.30 | 77.73 | -22.59 | 141.19 | 0.5564 | 707.0 | 600.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -25.57 | 75.67 | -24.65 | 139.21 | 0.5781 | -671.0 | -620.3 | |
| 0.34 | 3.58 | 0.21 | 2.17 | -25.47 | 75.33 | -24.99 | 138.72 | 0.5803 | -931.2 | -807.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
