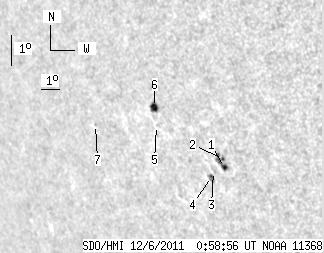

SDO HMI 2011-12-06 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.02 | 21.83 | 7.01 | 18.95 | -16.18 | 46.43 | -53.34 | 110.11 | 0.8224 | -92.4 | 272.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 9.21 | 1.51 | 7.76 | -16.82 | 47.86 | -51.91 | 111.21 | 0.8104 | 641.8 | 530.4 | |
| 0.85 | -1.00 | 0.72 | -1.00 | -16.57 | 47.90 | -51.87 | 110.93 | 0.8094 | 677.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.73 | -16.94 | 47.25 | -52.52 | 111.20 | 0.8165 | 580.0 | 433.3 | |
| 0.60 | 3.84 | 0.51 | 3.29 | -17.10 | 47.08 | -52.68 | 111.35 | 0.8184 | 467.4 | 380.2 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -15.54 | 44.83 | -54.94 | 108.95 | 0.8360 | -411.0 | -360.7 | |
| 4.78 | 6.48 | 4.27 | 5.79 | -14.98 | 44.94 | -54.83 | 108.32 | 0.8340 | -582.5 | -417.8 | |
| 0.00 | 0.94 | 0.00 | 0.92 | -15.52 | 41.40 | -58.36 | 108.24 | 0.8658 | -302.0 | -272.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
