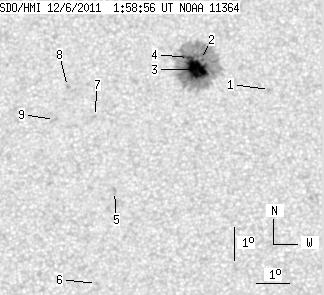

SDO HMI 2011-12-06 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.74 | 168.32 | 12.97 | 88.22 | 18.80 | 103.55 | 4.33 | 347.36 | 0.3270 | -761.2 | -380.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.67 | 18.26 | 105.97 | 6.75 | 340.12 | 0.3295 | -772.0 | -608.1 | |
| 1.11 | 159.27 | 0.58 | 83.54 | 19.20 | 103.83 | 4.62 | 346.79 | 0.3342 | -858.9 | -438.4 | |
| 22.61 | -2.00 | 11.85 | -2.00 | 18.88 | 103.70 | 4.48 | 346.94 | 0.3287 | -1412.5 | 999999 | |
| 1.02 | -2.00 | 0.54 | -2.00 | 19.26 | 103.46 | 4.24 | 347.87 | 0.3339 | -899.9 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.14 | 15.12 | 101.10 | 1.88 | 352.94 | 0.2590 | 746.0 | 659.8 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 12.33 | 100.53 | 1.31 | 353.86 | 0.2106 | 753.0 | 670.3 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 17.43 | 100.50 | 1.28 | 355.85 | 0.2967 | 841.0 | 623.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.36 | 99.67 | 0.45 | 358.62 | 0.3115 | 904.0 | 731.2 | |
| 0.00 | 2.39 | 0.00 | 1.24 | 17.33 | 99.26 | 0.05 | 359.85 | 0.2943 | 811.0 | 700.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
