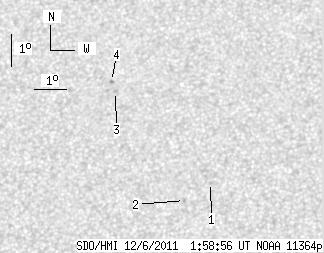

SDO HMI 2011-12-06 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.12 | 0.00 | 2.70 | 18.63 | 90.59 | -8.63 | 24.16 | 0.3467 | -818.8 | -622.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 01:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.53 | 17.24 | 92.48 | -6.74 | 21.04 | 0.3137 | -729.0 | -530.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.68 | 91.69 | -7.53 | 23.98 | 0.3102 | -851.0 | -619.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 20.07 | 89.34 | -9.87 | 25.45 | 0.3764 | -860.0 | -666.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.38 | 89.19 | -10.02 | 25.40 | 0.3820 | -835.0 | -649.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
