SDO HMI 2011-12-06 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.82 | 30.38 | 3.74 | 16.88 | -18.02 | 78.03 | -20.09 | 133.96 | 0.4550 | 144.3 | -278.8 | |
|
previous
or next observation for the same group /

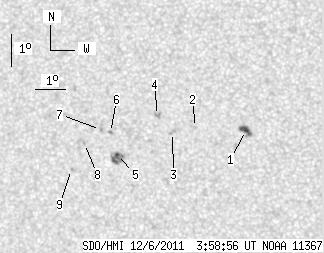

back to the solar disc SDO HMI 2011-12-06 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 7.25 | 3.07 | 3.95 | -17.70 | 81.06 | -17.07 | 137.82 | 0.4181 | 1026.9 | 728.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -17.61 | 79.44 | -18.69 | 135.15 | 0.4348 | 770.0 | 514.7 | |
| 0.00 | 2.39 | 0.00 | 1.32 | -17.77 | 78.66 | -19.46 | 134.30 | 0.4451 | 735.0 | 657.1 | |
| 0.00 | 3.33 | 0.00 | 1.84 | -17.24 | 78.23 | -19.89 | 132.79 | 0.4447 | 918.0 | 717.6 | |
| 1.19 | 12.20 | 0.67 | 6.86 | -18.46 | 76.76 | -21.37 | 132.88 | 0.4736 | -978.5 | -805.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -17.77 | 76.61 | -21.51 | 131.56 | 0.4686 | -963.0 | -754.7 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -17.68 | 76.29 | -21.83 | 131.00 | 0.4715 | -758.0 | -594.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -18.12 | 75.69 | -22.43 | 131.00 | 0.4825 | -851.0 | -704.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -18.93 | 75.14 | -22.98 | 131.66 | 0.4964 | -798.0 | -709.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
