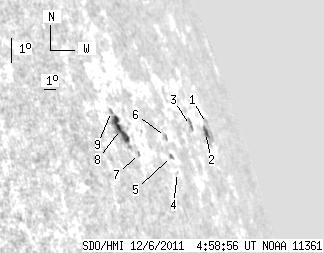

SDO HMI 2011-12-06 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.62 | 46.58 | 26.57 | 88.57 | 18.84 | 171.55 | 73.97 | 289.54 | 0.9637 | 115.4 | 67.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.24 | 0.00 | 8.71 | 19.09 | 176.46 | 78.88 | 289.38 | 0.9838 | 285.0 | 162.7 | |
| 3.16 | 10.41 | 8.08 | 27.28 | 18.81 | 175.81 | 78.24 | 289.13 | 0.9818 | -305.5 | 82.4 | |
| 0.00 | 4.01 | 0.00 | 8.92 | 19.04 | 173.98 | 76.40 | 289.48 | 0.9757 | -320.0 | -99.6 | |
| 0.00 | 0.85 | 0.00 | 1.51 | 17.58 | 170.62 | 73.04 | 288.25 | 0.9614 | -209.0 | -196.4 | |
| 1.54 | 2.13 | 2.71 | 3.77 | 18.08 | 170.51 | 72.93 | 288.78 | 0.9611 | -274.5 | -223.9 | |
| 0.00 | 2.73 | 0.00 | 4.85 | 18.70 | 170.54 | 72.97 | 289.42 | 0.9616 | -291.0 | -259.6 | |
| 0.00 | 1.54 | 0.00 | 2.31 | 18.18 | 167.44 | 69.86 | 289.19 | 0.9459 | 207.0 | 168.4 | |
| 10.92 | 19.96 | 15.78 | 28.78 | 18.93 | 166.42 | 68.84 | 290.10 | 0.9409 | 440.5 | 218.1 | |
| 0.00 | 1.71 | 0.00 | 2.44 | 19.50 | 166.14 | 68.57 | 290.73 | 0.9397 | 348.0 | 259.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
